Power Control
The power control controls the amount of hydraulic pressure
for the PowrHandler drive system. It is located between the
handles on the cart. Turning the power control counterclockwise
increases hydraulic pressure. Turning the power control
clockwise decreases hydraulic pressure.
Speed Control
The speed control controls the speed that the PowrHandler
drive system moves the line striper. It is located between the
handles on the cart. Turning the speed control counterclockwise
increases the speed of the drive system. Turning the power
control clockwise decreases the speed of the drive system.
FORWARD/REVERSE
Switch
Engine Throttle
The engine throttle controls the speed of the gas engine on the
line striper. It is located between the handles on the cart.
Kill Switch
The kill switch immediately shuts off the engine on the line
striper. It is located below the engine throttle between the
handles on the cart.

Preparing to Paint

Flushing the Solvent
Before painting, it is important to make sure that the fluid in the
system is compatible with the paint that is going to be used.
Incompatible fluids and paint may cause the valves
i
to become stuck closed, which would require
disassembly and cleaning of the sprayer's fluid
section.
Always keep the trigger lock on the spray gun in
the locked position while preparing the system.
Attention
1. Place the siphon hose into a container of the appropriate
solvent.
If you are spraying a water-based latex, flush with
i
warm, clean water. If you are using any other
material, check with the material manufacturer for a
compatible solvent.
2. Place the bleed hose into a metal waste container.
3. Set the pressure to minimum by turning the pressure
control knob fully counterclockwise.
4. Open the hydraulic shut-off valve located on the hydraulic
pressure hose. The handle should be in line with the
hose.
5. Open the bleed valve by turning it fully counterclockwise.
6. Start the engine.
a. To start the gas engine,
• move the fuel valve lever to the open position,
• move the throttle lever to its middle point,
• move the choke lever to the closed position for a cold
engine or to the open position for a warm engine,
• turn the engine switch to the ON position, and
• pull the starter rope briskly until the engine starts.
7. Turn the pressure control knob clockwise approximately
1/3 of the way down to increase pressure until the sprayer
© Wagner. All rights reserved.

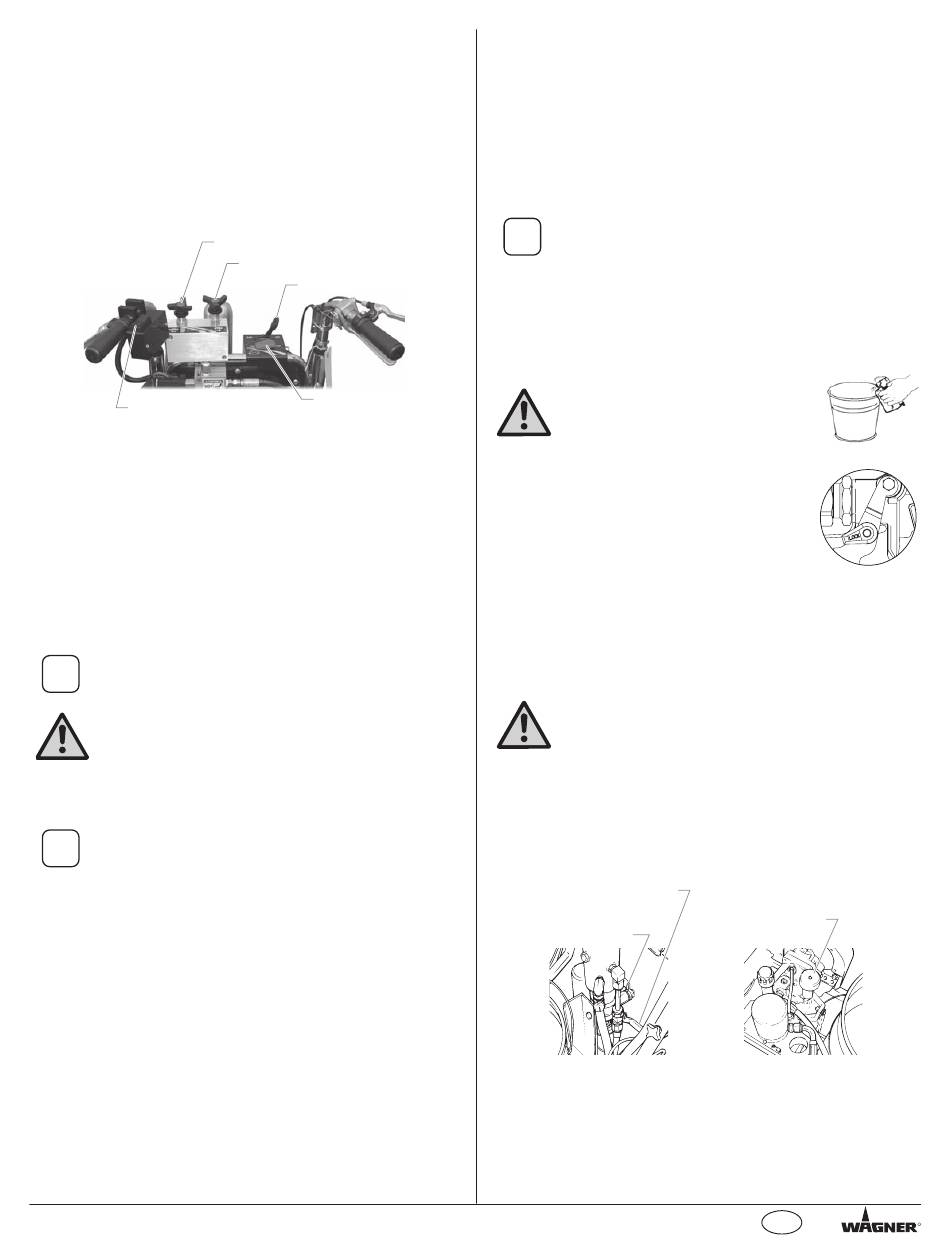

Power Control
Speed Control
Engine Throttle
Kill
Switch
cycles evenly and solvent flows freely from the bleed
hose.
8. Allow the sprayer to run for 15–30 seconds to flush
the fluid out through the bleed hose and into the waste
container.
9. Turn off the sprayer.
a. To turn off the gas engine,
• set the pressure to minimum by turning the pressure
control knob fully counterclockwise,
• move the throttle lever to the slow position, and
• turn the engine switch to the OFF position.
i
Make sure that the spray gun does not have a tip or
tip guard installed.
10. Close the bleed valve by turning it fully clockwise.
11. Start the engine.
12. Turn the pressure control knob clockwise approximately
1/3 of the way down to increase pressure.
13. Unlock the gun by turning the gun trigger lock to the
unlocked position.
Earth the gun by holding it against
the edge of the metal container
while flushing. Failure to do so may
lead to a static electric discharge,
which may cause a fire.
Danger
14. Trigger the gun into the metal waste
container until the old solvent is gone and
fresh solvent is coming out of the gun.
15. Lock the gun by turning the gun trigger
lock to the locked position.
16. Set down the gun and increase the
pressure by turning the pressure control
knob slowly clockwise.
17. Check the entire system for leaks. If leaks occur, follow
the "Pressure Relief Procedure" in this manual before
tightening any fittings or hoses.
18. Follow the "Pressure Relief Procedure" in this manual
before changing from solvent to paint.
Be sure to follow the pressure relief procedure
when shutting the sprayer down for any purpose,
including servicing or adjusting any part of the
spray system, changing or cleaning spray tips, or
preparing for cleanup.
Danger
Priming with Paint
1. Place the siphon hose into a container of paint.
2. Place the bleed hose into a metal waste container.
3. Set the pressure to minimum by turning the pressure
control knob fully counterclockwise.
Hydraulic Shut-off
Valve (in closed
position)
Bleed Valve
4. Open the hydraulic shut-off valve located on the hydraulic
pressure hose. The handle should be in line with the
hose.
5. Open the bleed valve by turning it fully counterclockwise.
7
Trigger lock
in locked position.
Pressure
Control Knob
