Commissioning
Pos. Designation
Context menu ref-
8
erence
Table 15: Home screen
Main menu
Radiator – Dynamic Adapt plus
Normal operation
Settings menu
Settings
Set auto control
Settings assistant, setpoints, options
Manual operation
Manual override
Double pump operation
Set double pump
External interfaces
Analogue, digital, SSM, SBM ...

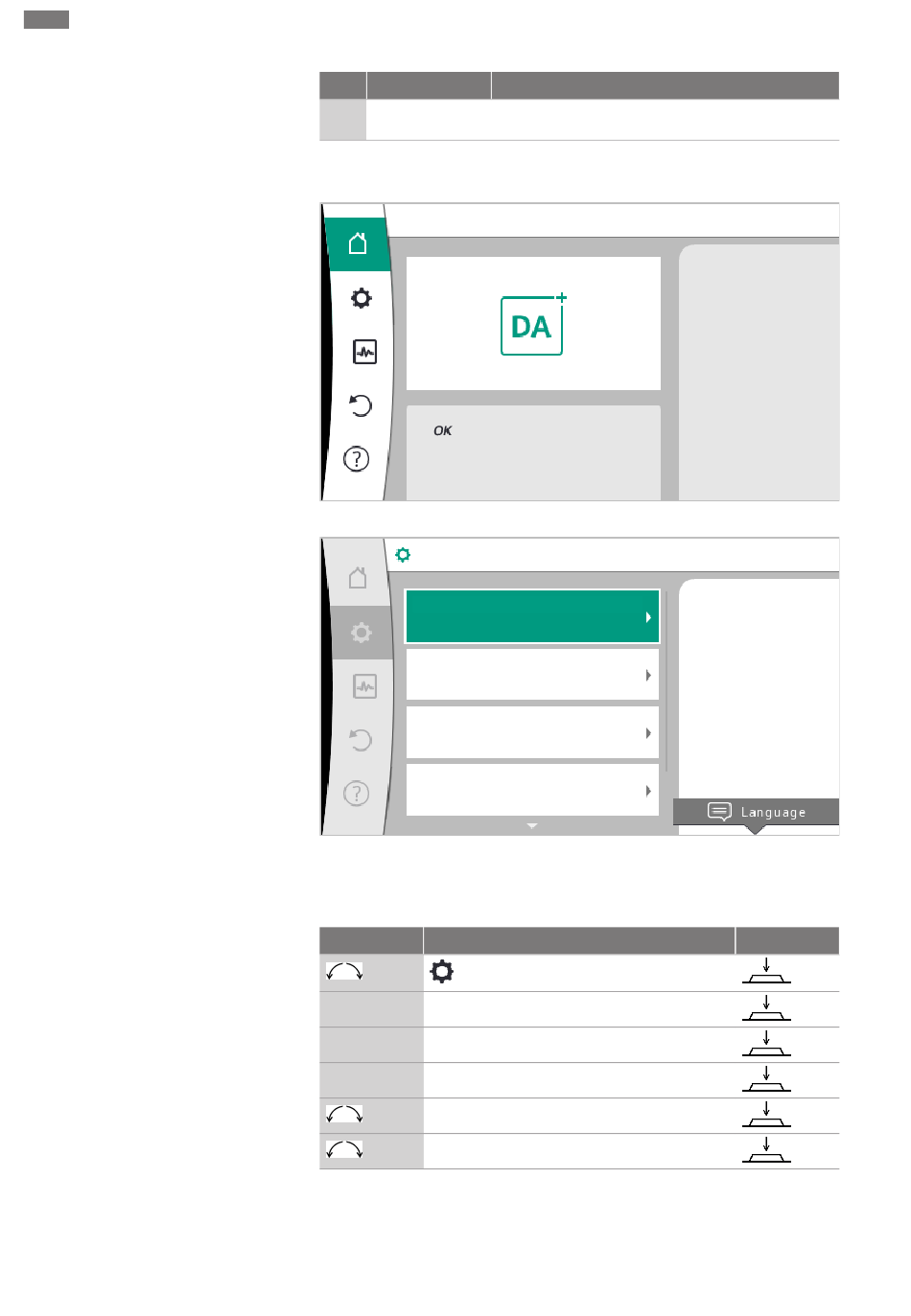

Description of a step-by-step setting procedure using two examples:
Setting the control function "Heating – Fan heater – Dynamic Adapt plus"
Action Setting in the menu
Pump setting
Settings assistant
Heating
Fan heater
Dynamic Adapt plus
Table 16: Example 1: Heating setting
Explanation
Offers context-related options in a separate context
menu.
Duty point:
DA plus
Q = 13.0 m³/h
H = 2.6 m
Measured values:
70.9 °C
T fluid =
202.0 W
P electr.
4200.0 kWh
W electr. =
Menu for adjusting
control functions.
Action
