Operating Instructions
5) Setting the end limits
Note
The end limits can only be set via the master transmitter. The axle direction setting must be correct. When the end limits are
being set, the tubular drive remains in lock-in mode. The lower end limit must always be programmed first. When setting the
upper end limit, it is important to ensure that the shutter is securely in the guide rails.
There are 4 possible ways to set the end limits:
a) Lower position to upper position without stopper
b) Lower position to upper stopper
c) Anti-lifting device at the lower limit to upper position without stopper
d) Anti-lifting device at the lower limit to upper stopper
5a)
Clack
Clack
5b)
Clack
5c)
Clack

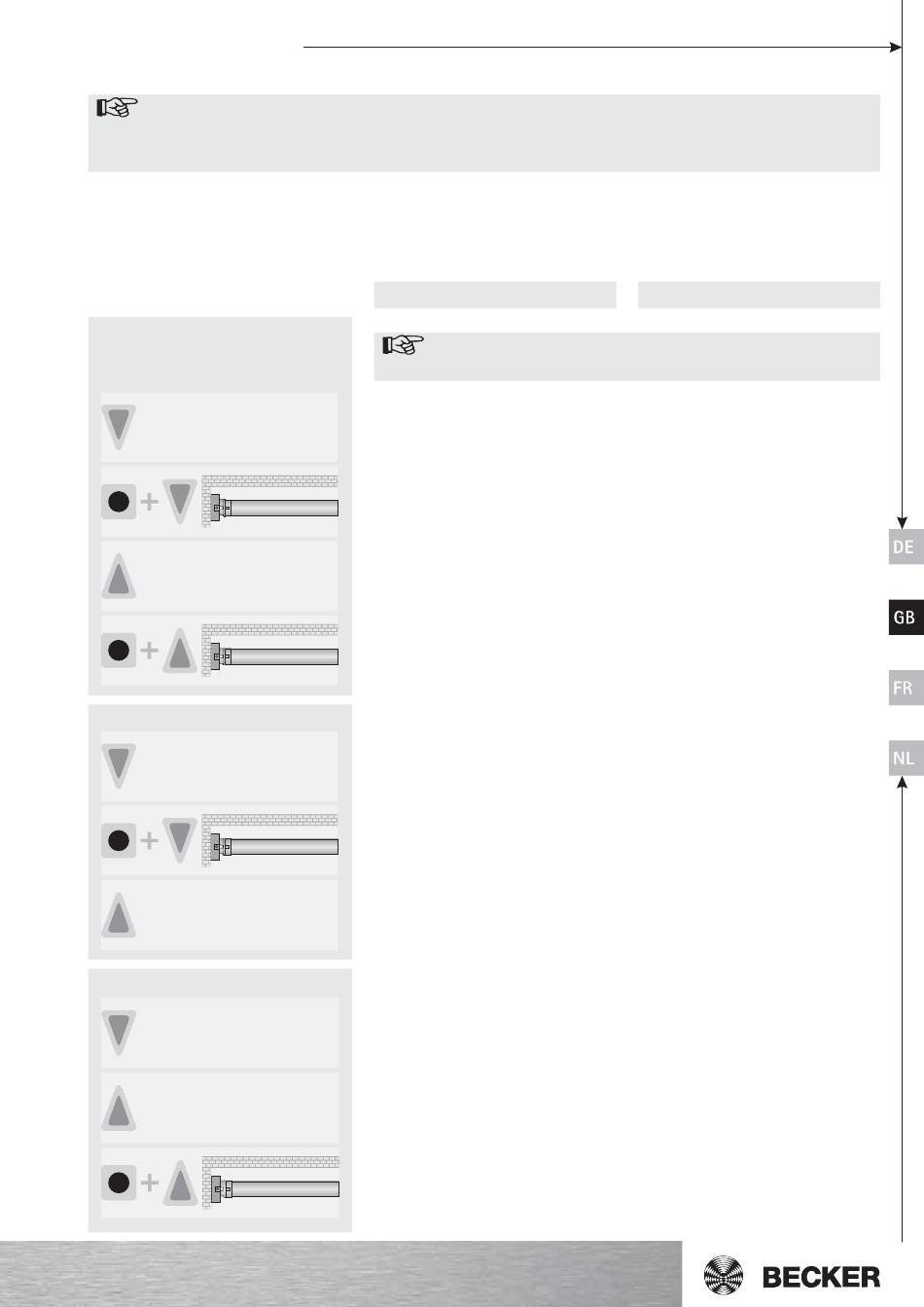

Action
5a) Lower position to upper position without stopper
Note
For this end limit setting there is no automatic shutter curtain adjustment.
Adjust the shutter into the desired lower
limit position.
First press and hold the learn button. Within
3 seconds also press the DOWN button and
hold both buttons.
Then adjust the shutter into the desired up-
per limit position.
First press and hold the learn button. Within
3 seconds also press the UP button and hold
both buttons.
to 5b) Lower position to upper stopper
Adjust the shutter into the desired lower
limit position.
First press and hold the learn button. Within
3 seconds also press the DOWN button and
hold both buttons.
Then move the shutter up towards the per-
manent upper stopper.
to 5c) Anti-lifting device at the lower limit to upper position without stopper
Adjust the shutter downwards until they
reach the lower limit position.
Then adjust the shutter into the desired up-
per limit position
First press and hold the learn button. Within
3 seconds also press the UP button and hold
both buttons.
21
Response
The tubular drive makes a "clack" sound to
confirm.
The tubular drive makes a "clack" sound to
confirm.
The end limits have been set.
The tubular drive makes a "clack" sound to
confirm.
The tubular drive switches off automati-
cally.
The end limits have been set.
The tubular drive switches off automati-
cally.
The tubular drive makes a "clack" sound to
confirm.
The end limits have been set.
