Operating Instructions
R8/17PRF+ to R20/17PRF+
Self-locking hole
Location lug
Drive adapter with safety catch
R30/17PRF+ to R40/17PRF+
M6x12 screw
Plain washer
Toothed lock washer
Spigot

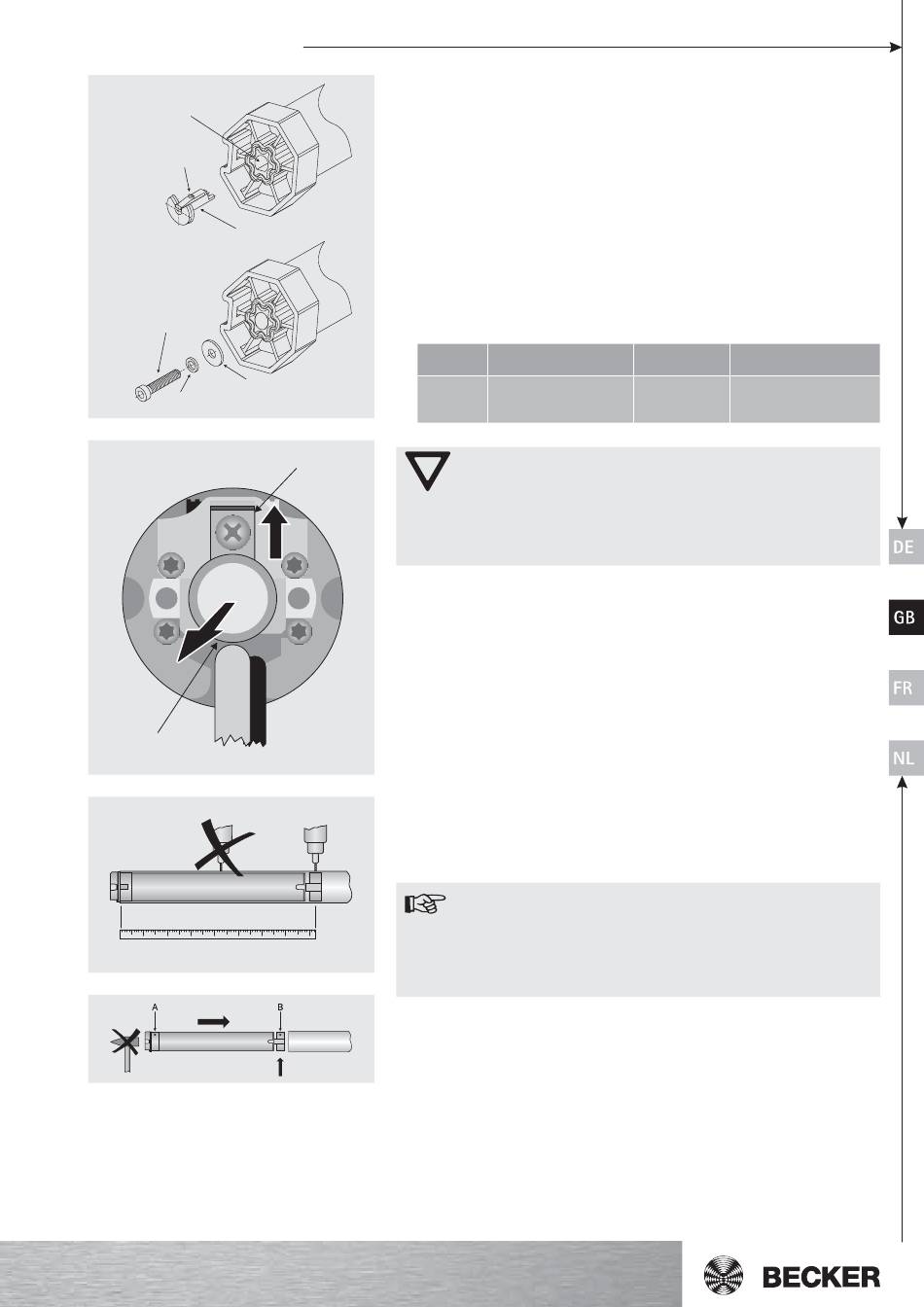

To install the drive, the following instructions must be followed carefully:
• Removing the spigot
When inserted, the centre spigot engages automatically. To remove, slide the bearer
plate upwards and remove the spigot.
• Mounting the drive adapter with safety catch R8/17PRF+ to R20/17PRF+:
The insert direction for the drive adapter is determined by the drive adapter type
(shape). When inserting the drive adapter with safety catch ensure that the catch
engages with the location lug. You will hear a clicking sound when the drive adapter
has engaged properly. Pull lightly on the drive adapter to ensure that it has been
fitted securely.
• Mounting the drive adapter with screw connection R30/17PRF+ to R40/17PRF+:
In this case the drive adapter is fastened with a M6x12 screw, which is secured by a
M6 plain washer and a corresponding toothed lock washer.
3. The drive adapter of the tubular drive is connected to the roller tube as follows:
D
i r
[
m
Ø
Becker also recommends that the counter bearing be joined to the roller tube.
Bearer plate
• Profile tubes:
Attach a suitable limit ring adapter (A) and drive adapter (B) to the tubular drive.
After having done so, slide the drive into the tube so that it engages positively. When
doing so, ensure that the limit ring adapter and drive adapter fit securely into the
tube.
For some drive adapters, the slot width tolerances of different roller tubes can be
compensated by turning the drive adapter into another slot recess. These slot re-
cesses have different dimensions and allow you to mount your drive accurately.
• Round tubes:
Release the tube at the motor end to allow the cam of the limit ring adapter to be
slid into the tube. There must be no clearance between the cam of the limit ring
adapter and the tube. For limit ring adapters without locating cams the roller tube
must be connected to the limit ring adapter using a 4.8 x 10 mm tapping screw.
4. Insert the tube into the bearing and secure the motor end in the drive bearing.
5. After the transmitter programming, position the roller tube such that the roller
shutters can be secured with springs. Alternatively, install the anti-lifting lock in
accordance with the manufacturer's stipulations.
Acknowledgement
The roller shutter drive acknowledges every programme, setting or deletion process with
a "clack" or "clack-clack" sound.
e v
R
l o
r e l
u t
e b
d
a i
m
t e
r e
m
]
[
m
m
]
0 6
-
0 7
m
m
5 4
l P
s a
c i t
r o
d
e i
a c
t s
i r d
e v
a
a d
t p
r e
Warning
When drilling the roller tube do not drill in the area around the tubular
drive!
The tubular drive must be inserted carefully into the tube. It should not
be hammered or simply dropped into the tube!
The shutters can be secured using springs or anti-lifting devices only.
Please note
When using springs we recommend that at least 3 are used; For longer
roller tubes 3 springs are to be used per meter of roller tube.
Install motor connecting cable to the tubular drive in ascending direc-
tion and secure. The motor cable and the antenna must be well clear of
the winding space. Sharp edges must be covered.
19
M
a
. x
o T
q r
e u
a F
t s
n e
r e
f s
N [
m
]
d
i r
e v
d a
p a
e t
s r
4 (
T
p a
i p
g n
c s
e r
w
s
0 5
c
u o
t n
r e
u s
k n
e h
T S
6
3 .
x
0 1
r o
c p
) . s
i w
h t
d a
