Becker R8/17PFR+ Notice D'utilisation page 20

UP button
STOP button
DOWN button
Learn button
1) +2a)
Mains connection
blue
N
black
L1
green/yellow
PE
2b)
3)
Clack-Clack
4)
Axle direction switch
Radio switch
Radio switch
Axle direction switch

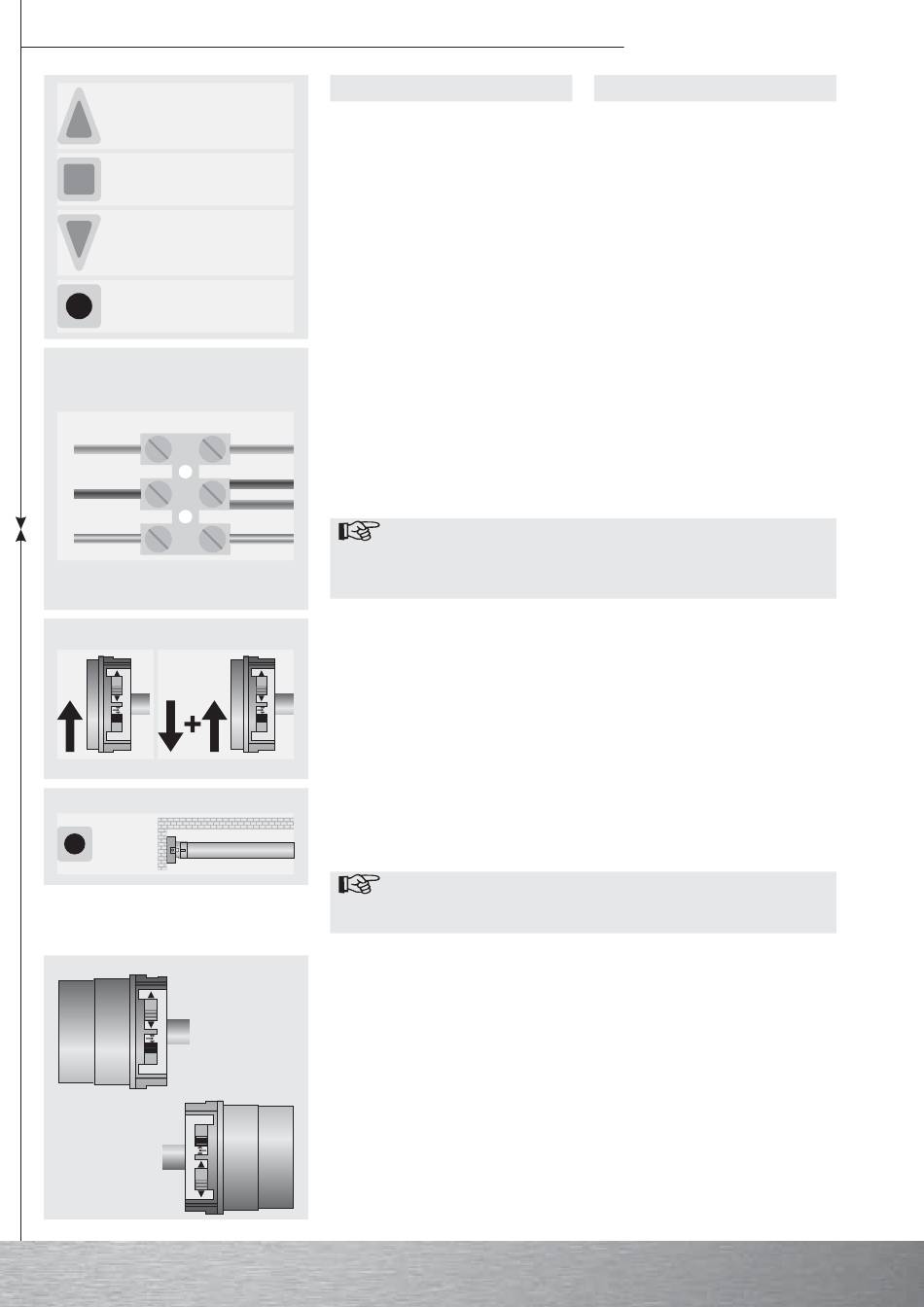

1) Connecting the tubular drive
Connect the tubular drive to the power sup-
ply and open the battery compartment of
the hand-held transmitter.
Motor cable
2) Activating tubular drive learn mode
blue
2a) Activating the tubular drive learn mode by switching on the power supply
black
Switch on the power supply.
brown
green/yellow
Note
If several tubular drives are to be connected in parallel, one of the tubular
drives can be deactivated from the learn mode by sliding the radio switch
into the outer position after having switched on the power supply.
2b) Activating the tubular drive learn mode with the radio switch
Slide the radio switch into the inner posi-
tion. If the switch is already in this position,
move the button into the outer position and
back to the inner position again.
3) Learning the master transmitter
When the drive is in learn mode, press the
learn button and hold for 3 seconds.
Note
If a transmitter had already been programmed in the receiver, press and
hold the learn button for 10 seconds.
4) Checking the axle direction
Press the UP or DOWN button.
If the shutter moves in the wrong direction, the axle direction has to be changed. This is done
as follows:
Slide the axle direction switch into the op-
posite position.
Action
The tubular drive goes into learn mode for
3 minutes.
The tubular drive goes into learn mode for 3
minutes.
The tubular drive makes a "clack-clack"
sound to confirm.
The learn process is complete.
If the shutter moves in the desired direction
=> the axle direction is OK.
The axle direction has been altered.
Re-check the axle direction.
