Connecting & Setting Up
Connecting the DVD Recorder
This section involves various methods of connecting the
DVD Recorder to other external components and required
initial setting modes.
You can connect your DVD Recorder to the television using
the SCART cable (not supplied) if the appropriate input is
available on the television.

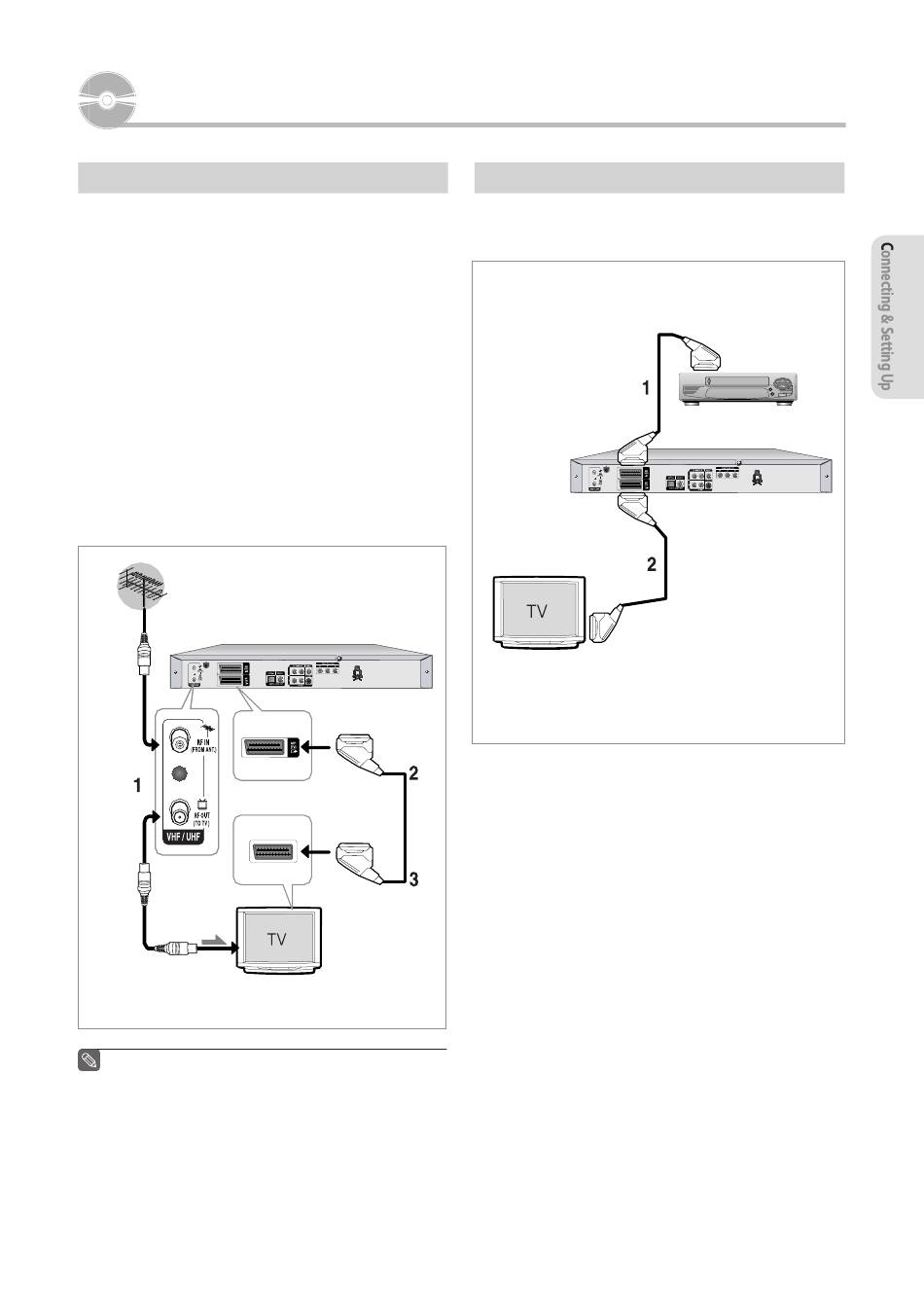

1. Connect the RF cable as shown.
2. Connect one end of the SCART cable to the AV1 socket on
the rear of the DVD Recorder.
3. Plug the other end into the appropriate connector on the
television.
4. Plug in the DVD Recorder and TV.
5. Turn on the DVD Recorder and TV.
6. Press the INPUT SEL. button on your TV remote control until
the Video signal from the DVD Recorder appears on the TV
screen.
To RF IN
To RF OUT
RF Cable
To ANT INPUT
■
The RF cable connection of this DVD Recorder sends
only signals of TV.
You must connect SCART cable or Audio/Video cables
to watch a signal from your DVD Recorder.
■
TV mode
Press the TV/DVD button on remote control, then
"TV" appear on Front LED display (or turn off DVD
Recorder).
Additional connections
You can connect your DVD Recorder to a satellite or digital
tuner.
- DVD mode
1. Connect the AV2 connector of DVD Recorder and VCR/
Satellite receiver or digital tuner using a SCART cable
(not supplied).
2. Connect the AV1 connector to the SCART AV connector on
TV.
3. Turn on the DVD Recorder, VCR/Satellite receiver or digital
tuner and TV.
4. Set Input mode on AV2.
- TV mode
1. Press the TV/DVD button on remote control,then "TV"
appear on Front LED display. (or turn off DVD Recorder.)
2. You can watch programmes from a satellite or digital tuner
connected to this DVD Recorder, even when the DVD
Recorder is turned off .
English - 15
external device
(VCR/Satellite receiver)
