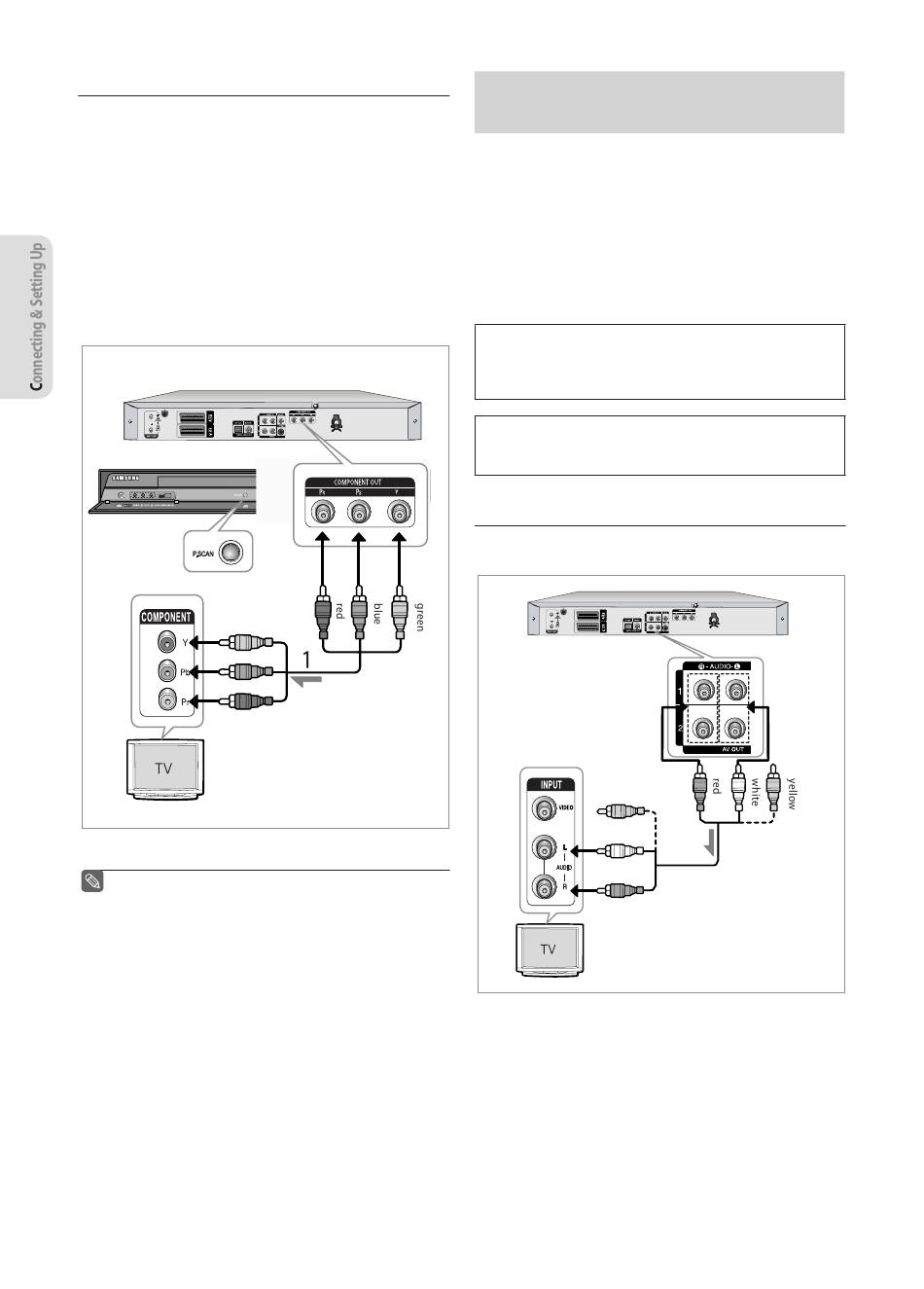

▌ Case 3 : Component Video output jacks
1. Connect Component video cables(not supplied) between
the COMPONENT OUT(Y, P
B
COMPONENT IN (Y, P , P ) jacks on your TV.
B R
2. Connect audio cables (white and red) between the AUDIO
OUT jacks on the DVD Recorder and AUDIO IN jacks on TV (or
AV amplifi er).
(See pages 18-19)
3. After connecting, refer to the page 29 to 30
• You will enjoy high quality and accurate colour reproduction
images.
green
blue
red
■
The Component jacks will not output video
resolutions above 576p.
To view 720p and 1080i connect the DVD Recorder to
your TV with the supplied HDMI cable.
With HDMI connected, press the P.SCAN button to
alternate between all available resolutions.
(See page 31)
■
Make sure that the colour coded connections match.
The Y, P , P component output jacks of your
B R
DVD Recorder must be connected to the exact
corresponding component input jacks on your TV.
■
Progressive setting is only available when the Video
Out is set to Component. (See page 30)
, P ) jacks on DVD Recorder and
R
English - 18
Other type of connecting
the Audio output cable
There are several ways to output audio signal not using
scart cables. Select the audio connection that best suits you
below.
• Case 1 : Connecting to your TV
• Case 2 : Connecting to a stereo amplifi er with AV output
jacks
• Case 3 : Connecting to an AV amplifi er with a digital output
jack
Manufactured under licence from Dolby
Laboratories. "Dolby" and the double-D symbol
are trademarks of Dolby Laboratories.
"DTS" and "DTS Digital Out" are trademarks of DTS, Inc.
▌ Case 1 : Connecting to your TV
If your TV has audio input jacks, use this connection.
yellow
white
red
