KNOW YOUR MACHINE

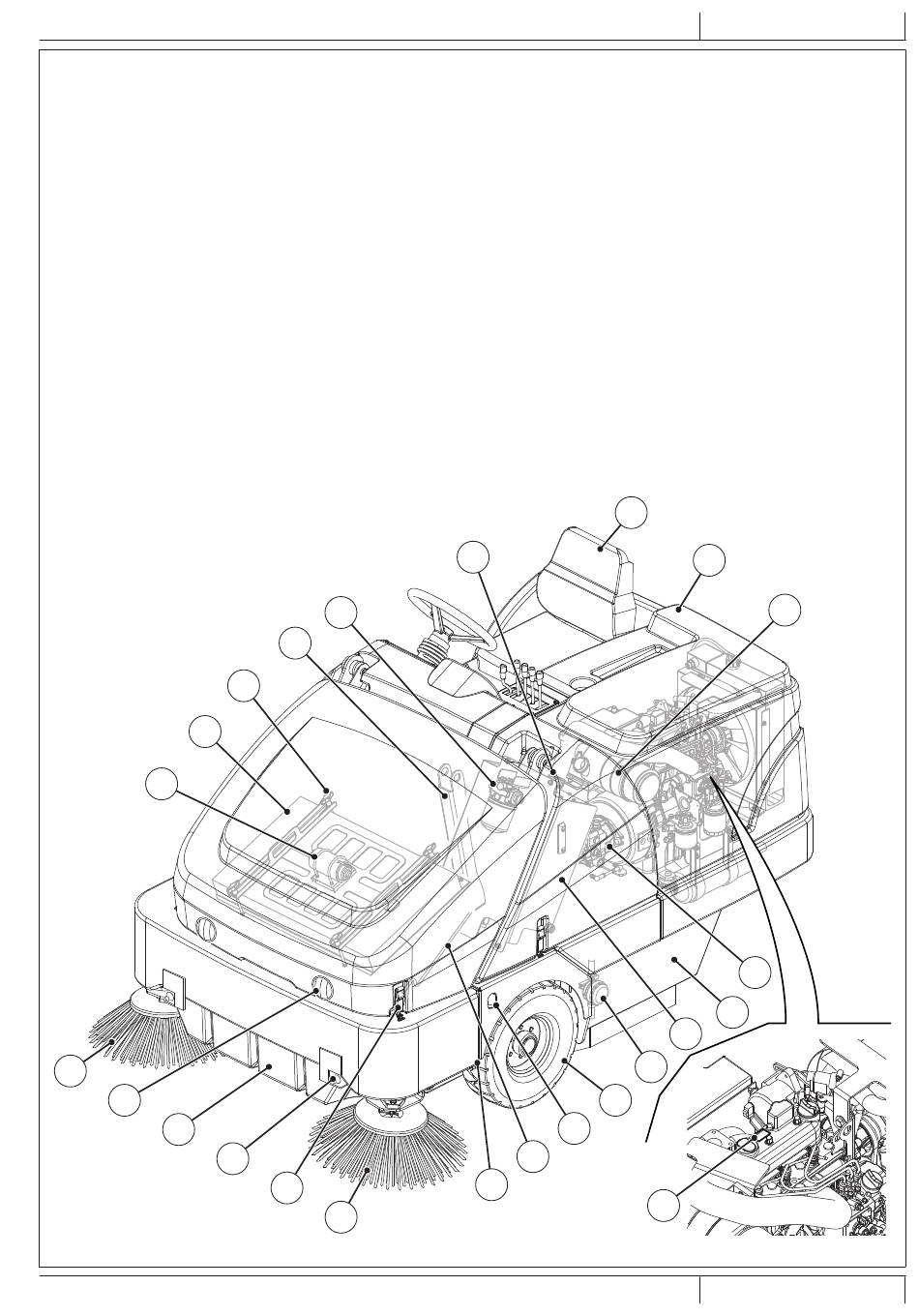

MACHINE NOMENCLATURE
1. Engine compartment hood
2. Left side main broom access panel
3. Battery
4. Left side hood / DustGuard™ system tank (optional)
5. Hopper safety support
6. Hopper hood latch
7. Working light (optional)
8. Jacking locations (rear location is under the engine
radiator)
9. Right side broom
10. Serial number plate/technical data/conformity certification
11. Dust filter shaker assembly
12. Hopper dust control filter
Panel filter (standard)
Closed pocket filter (optional)
13. Filter shaker assembly mounting knobs
14. Hydraulic oil filter
12
11
9
7
47
14
5
13
28
6
15
INSTRUCTIONS FOR USE
15. Left side broom (optional)
16. Hopper hood
17. Hopper hood support rod
18. Right side main broom access panel
19. Hydraulic oil tank
20. Hydraulic oil tank plug
21. LPG fuel tank
22. LPG tank safety valve
23. Radiator plug
24. Engine air filter
25. Engine compartment hood unlocking push-button
26. Tie-down locations (3)
27. Air filter service indicator
28. DustGuard™ system nozzles (optional)
29. DustGuard™ system tank plug (optional)
30. Water filter (optional)
31. Engine model and serial number plate
32
20
43
26
17
8
33019864 - Proterra™
1
4
45
2
19
30
31
ENGLISH
P100317
