POWR
CONTROL UNIT
CONTROL UNIT

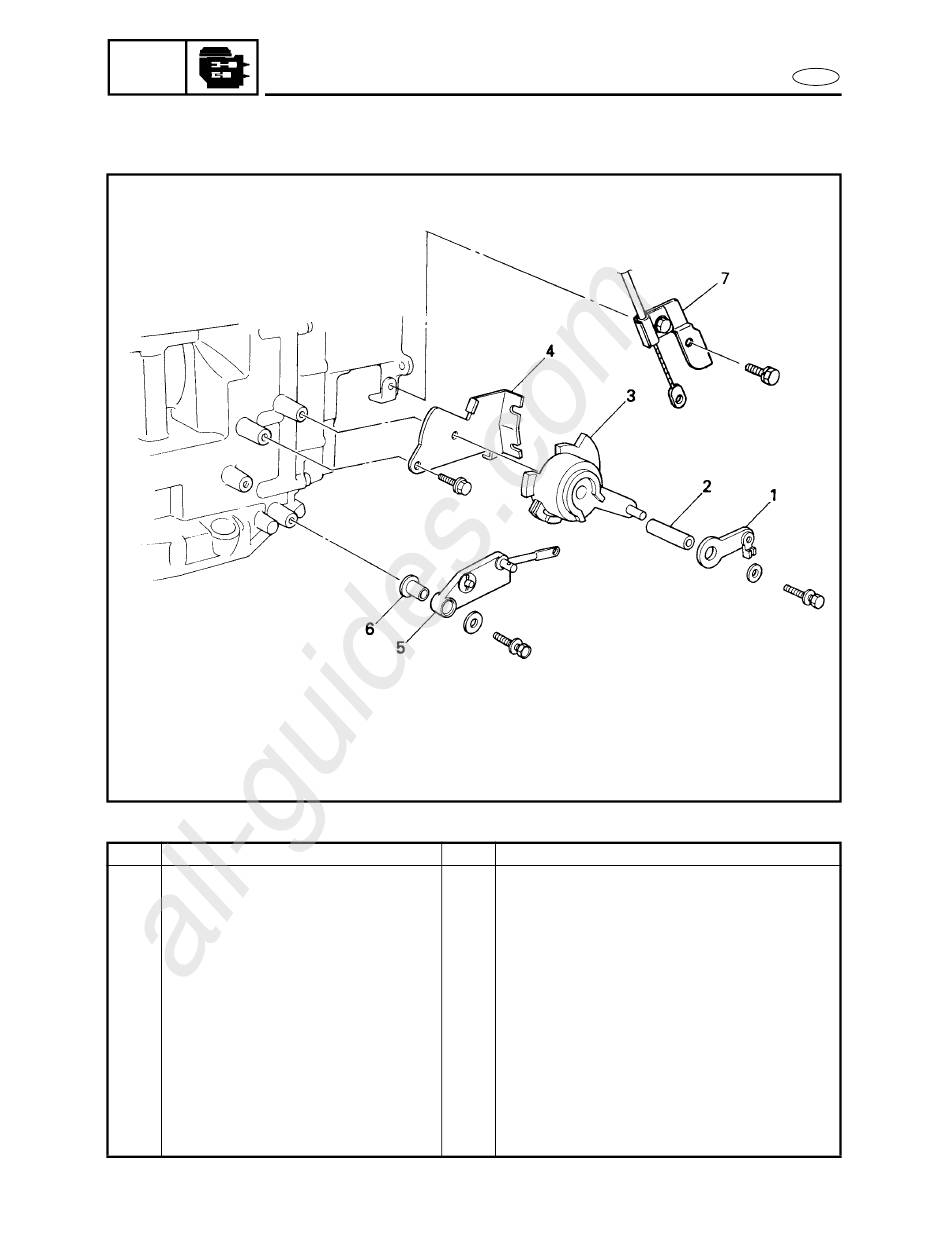

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
CONTROL UNIT REMOVAL
Throttle link rod
Shift link rod
1
Throttle control lever
2
Spacer
3
Throttle control cam
4
Throttle control cam bracket
5
Shift link rod assy.
6
Collar
7
Start-in-gear protection device
wire assy. (M)
All manuals and user guides at all-guides.com
Q'ty
1
1
1
1
1
1
1
5-17
Service points
Follow the left "Step" for removal.
Refer to "CARBURETOR UNIT" in chapter
4.
Refer to "POWER UNIT".
Reverse the removal steps for installation.
