HB 10

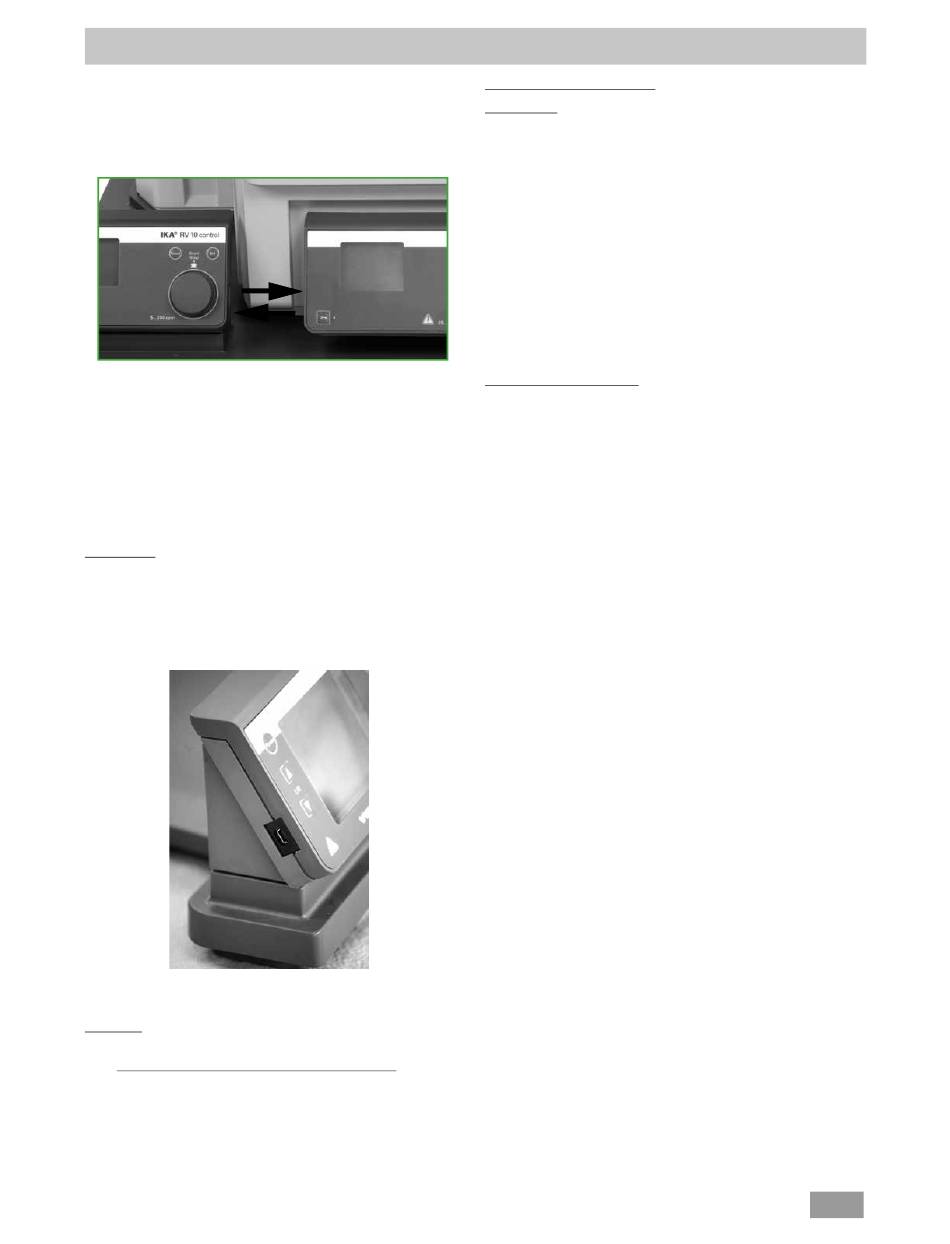

Data is exchanged between the heating bath and the drive unit by means
of an infrared link. These are located on the left display side of the hea-
ting bath or on the right side of the drive unit. Do not place any objects
between the two operating units as otherwise the data transfer may be
interrupted (fig. 22)!
IR
RV10 control
The device can be operated in "Remote" mode via an RS 232 or USB
interface using labworldsoft ® laboratory software.
The RS 232 interface at the back of the device, see fig. 20, is fitted with
a 9-pole SUB-D jack and can be connected to a PC. The pins have serial
signals. The USB interface is located on the left-hand side of the display
on the drive unit and can be connected to a PC using the USB cable
supplied.
Note: Please note the system requirements as well as the operating ins-
tructions and help section included with the software.
USB Interface
The Universal Serial Bus (USB) is a serial bus for connecting the device
to the PC. Equipped with USB devices can be connected to a PC du-
ring operation (hot plugging). Connected devices and their properties
are automatically recognized. Use the USB interface in conjunction with
labworldsoft for operation in "Remote" mode and also to update the
®
firmware.
Installation
First, download the latest driver for IKA
from: http://www.ika.com/ika/lws/download/usb-driver.zip.
Install the driver by running the setup file. Then connect the IKA
through the USB data cable to the PC. The data communication is via a
virtual COM port. Configuration, command syntax and commands of the
virtual COM ports are as described in RS 232 interface.
