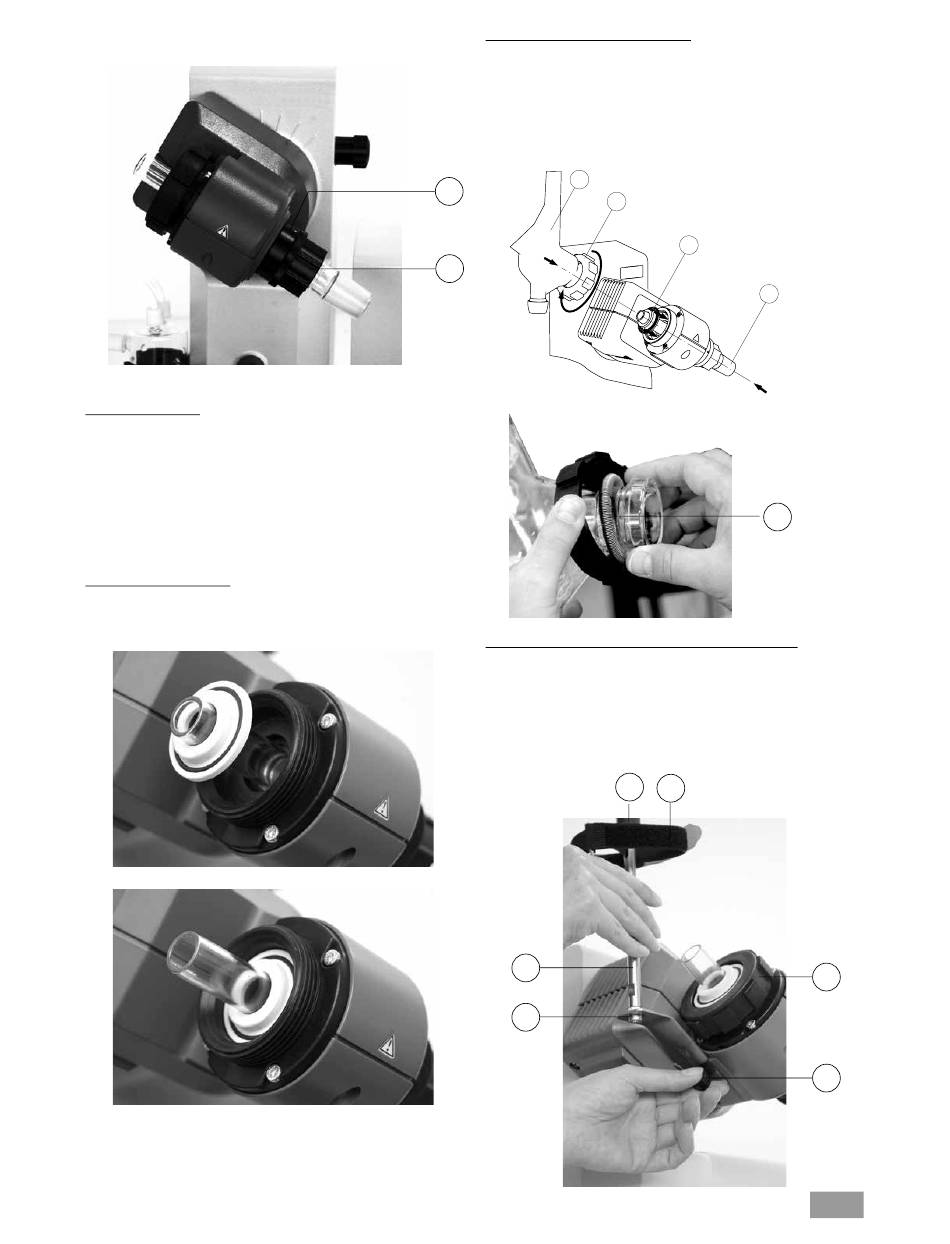

 Feed the steam pipe in until it stops.
 Then lock the locking device by turning it clockwise by 60° (Fig. 10).
 Check the axial locking device on the steam pipe.
Push-off mechanism
The plastic screw nut (H) helps loosen tight-fitting piston ground-in con-
nections (Fig. 10).
 Hold the locking device (G) and loosen the plastic screw nut (H).
 To do so, hold the tight-fitting evaporator piston and turn the plastic
screw nut (H) until the evaporator piston neck.
Note: Prior to commissioning, hand-tighten the plastic screw nut (H) left-
aligned. This will hold the steam pipe locking device (G) firmly in place.
Fitting the condenser seal
 Place the RV 10.8001 condenser seal in the condenser receptacle and
fit the glassware to the device according to the assembly instructions
(Fig. 11 a,b, c and d).
All manuals and user guides at all-guides.com
First use - Fitting the seal RV 10.8001
 Insert vapour tube (1).
 Insert seal RV 10.8001 (2).
 Slide the union nut (3b) over the flange on the condenser (3a).
 Also slide the annular spring (3c) over the flange on the condenser (3a).
 Position the condenser (3a) on top of the seal (2).
 Tighten the cap nut hand-screwed (3b).
Note: Follow the mounting instructions for the glassware
G
H
Fig. 10
Assembling the vertical glassware cooler locking device
 Assemble the condenser locking device according to the diagram (fig.
 Mount the plate (I) using the thumb screw (J).
 Put the support rod (L) on the plate (I) and attach it with the screw nut (K).
 Attach the rubber protector (M).
 Fasten the Velcro
 Secure the vertical glassware with the Velcro
Fig. 11a
Fig. 11b
3a
3b
12).
®
band (N) to the support rod (L).
M
N
L
K
2
1
Fig. 11c
3c
Fig. 11d
®
band (N).
I
J
Fig. 12
