Saving the distillation sequence as a procedure on completion of distillation
 Turn the Rotating/ Pressing knob to the right/left to select "Save".
 Press the Rotating/ Pressing knob to display the "Procedures" screen.
 Turn the Rotating/ Pressing knob to the left/right to select one of the
ten procedures. The sequence will be shown graphically.
 Press SET, to overwrite the selected procedure with the current proce-
dure (the procedure that has just been completed) and exit the menu.
Pressing ESC will prevent the selected procedure from being overwrit-
ten.
Note: Distillation sequences saved in this manner can be repeated at
a later dater in the user-defined mode by selecting the corresponding
procedure.

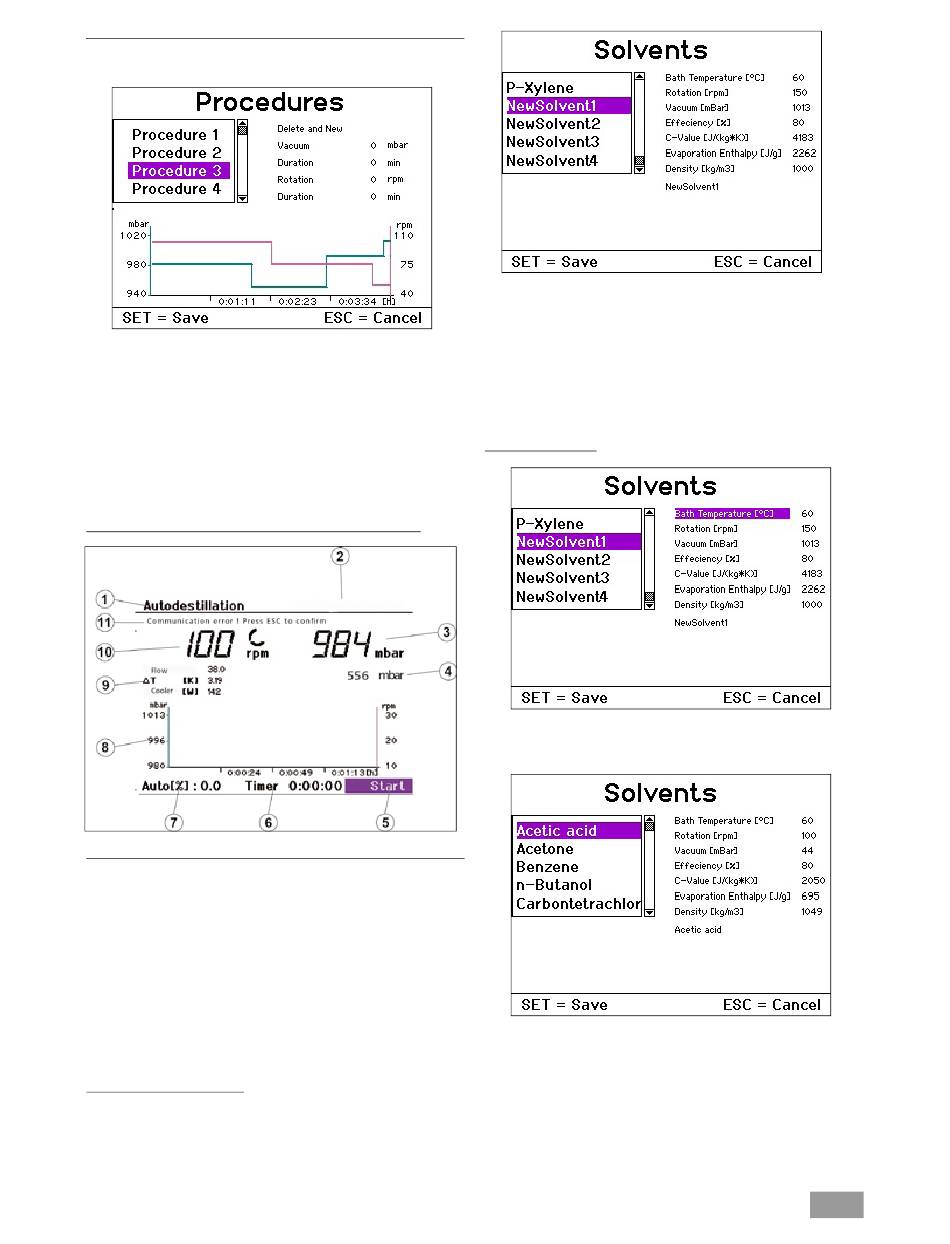

"Auto-distillation mode without boiling point recognition" menu
"Auto-distillation mode without boiling point recognition" display screen
1. Operating mode display
2. Control field for solvent
3. Vacuum display (actual value)
4. Vacuum display (target value)
5. Control field for „Start/ Stop" distillation
6. Timer display
7. Distillation progress indicator
(% of required quantity of distillate)
8. Vacuum-rotation-time graph
9. Display of flow rate, differential temperature, and condenser heat
rejection rate.
10. Rotary speed display (target value) and speed measurement unit
11. Error message in case of fault, otherwise status indicator
Changing the selected solvent
 Turn the Rotating/ Pressing knob to the right/left to select the control
field "Solvent".
 Press the Rotating/ Pressing knob to display a list of the various solvents
available.
All manuals and user guides at all-guides.com
 Turn the Rotating/ Pressing knob to the right/left to select a "Solvent".
 Press the SET key.
 The solvent selected will be used for the subsequent distillation.
Note: The display shows the parameters for each of the solvents. The
parameters can only be changed for the user-definable solvents User-
Solvent1 ... UserSolvent5. Please refer to the next section for instructions
on how to do this.
User defined solvents
 Select one of the options NewSolvent1 ... NewSolvent5 from the "Sol-
 Select one of these solvents and press the Rotating/ Pressing knob.
All the parameters displayed for the solvent can now be modified.
 Turn the Rotating/ Pressing knob to the right/left to select the para-
 Press the Rotating/ Pressing knob.
 Turn the Rotating/ Pressing knob to the right/left to change the selec-
 Press the Rotating/ Pressing knob.
 Press SET to save all values.
 This action selects NewSolvent1 as the current solvent.
Note: It is not possible to return to the selection list.
vents" screen.
meter to be changed.
ted parameter.
65
