Connecting The Welding Torch/Connecting The Gas Cylinder; Safety; Connecting The Welding Torch - Fronius VarioStar 1500 Instructions De Service

Connecting the welding torch/connecting the gas cy-
linder

Safety

Connecting the
welding torch
1.
Connecting up
2.
the gas cylinder
3.
4.
5.
6.
7.

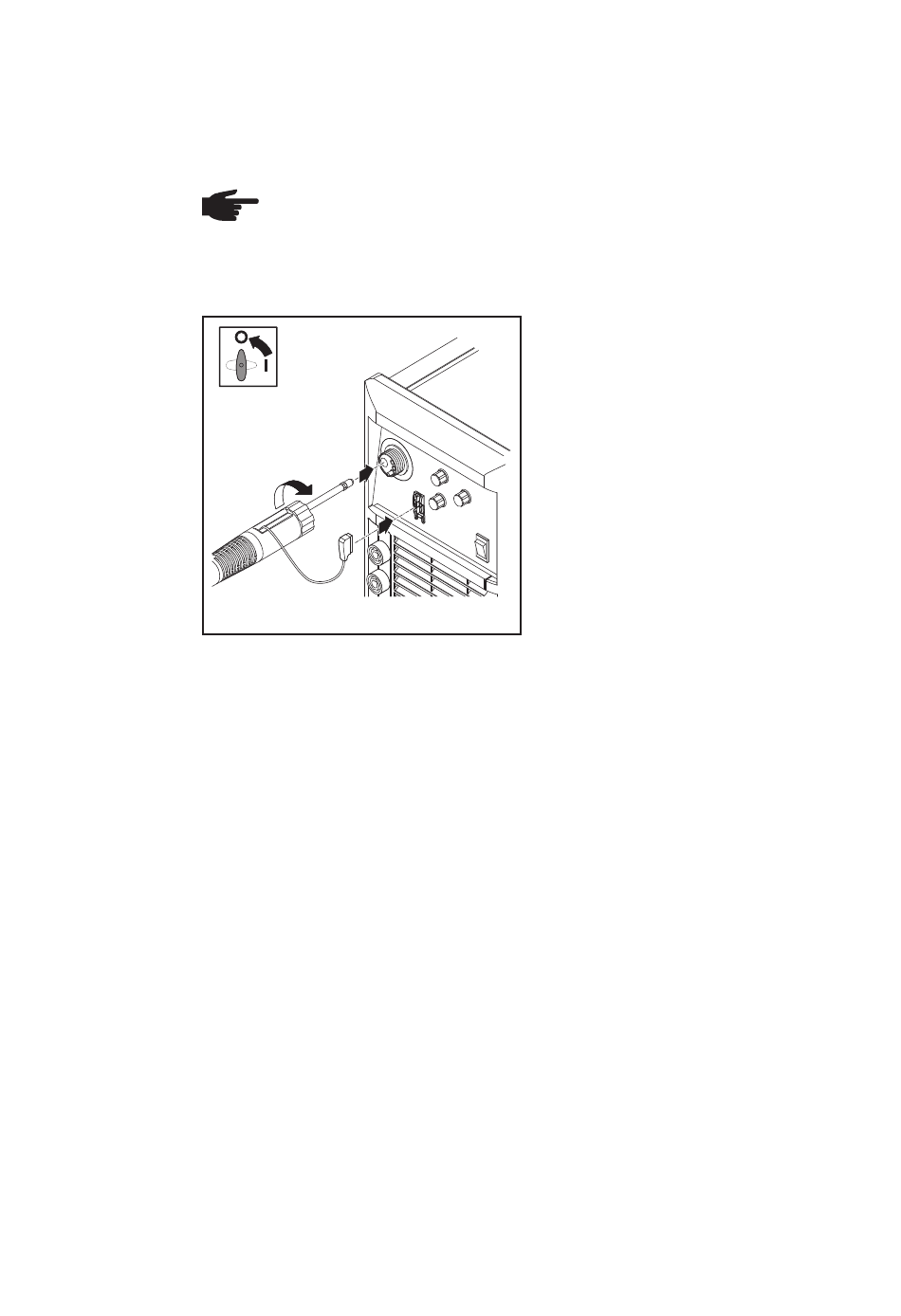

NOTE! When connecting the welding torch, check that
- all connections are connected properly
- all cables, leads and hosepacks are undamaged and correctly insulated.
1
2
3
4
Place gas cylinder in the console provided on the floor of the trolley
Fix gas cylinder in place with a chain
Take the protective cap off the gas cylinder
Briefly turn the gas-cylinder valve anticlockwise to blow off any dust and dirt
Inspect the seal on the pressure regulator
Screw the pressure regulator onto the gas cylinder and tighten it
Attach the gas hose from the machine to the pressure regulator
