Yamaha VX700F Manuel D'atelier page 168

MM700
Å
10 Nm (1.0 m · kg, 7.2 ft · lb)
:
ı
23 Nm (2.3 m · kg, 17 ft · lb)
:
Order Job name/Part name

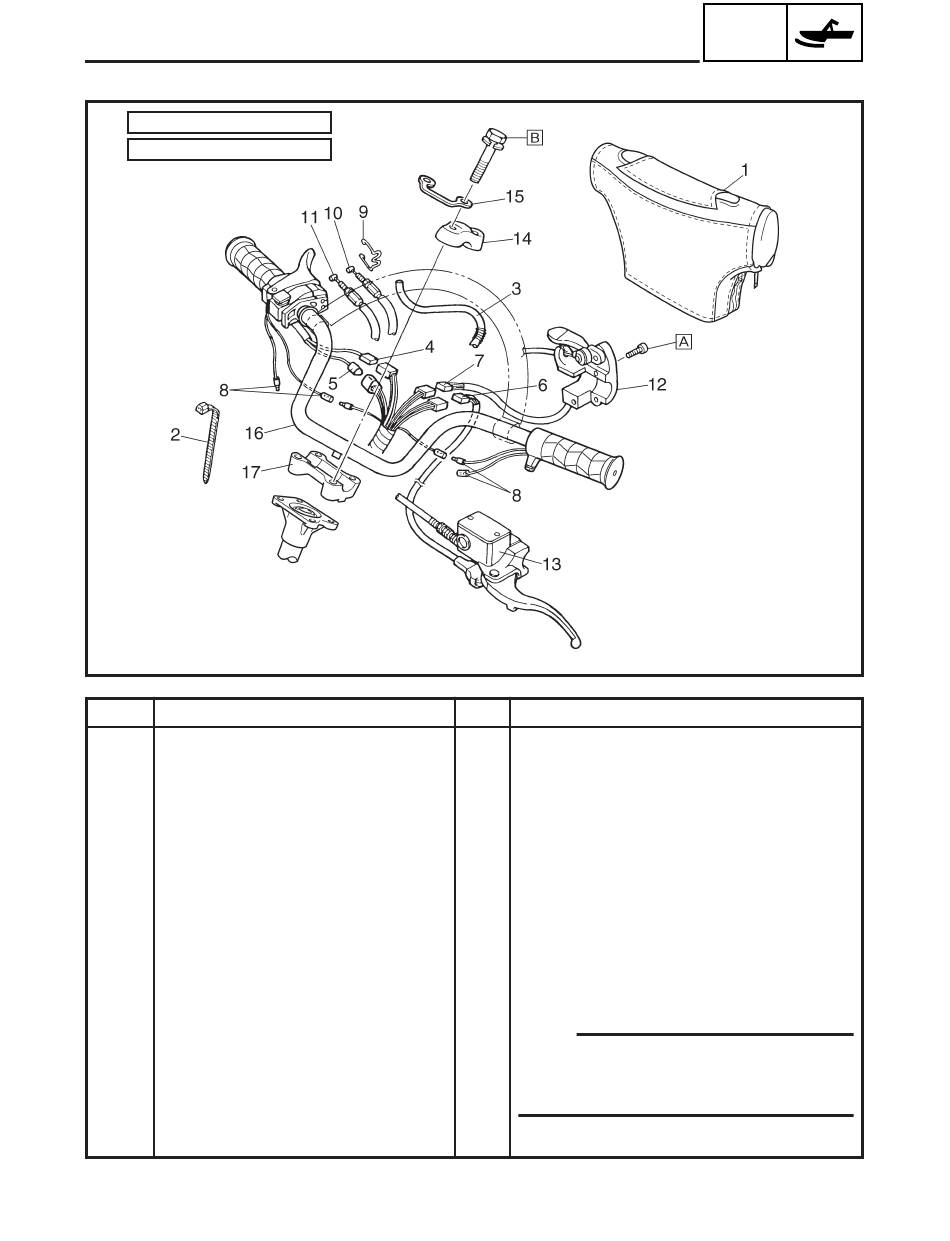

Handlebar removal
1 Handlebar cover
2 Plastic band
3
Oil tank breather hose
4 Thumb warmer coupler
5 Engine stop switch coupler
6
Brake switch coupler
7 Headlight beam switch coupler
8 Grip warmer lead
9 Throttle cable holder
10 Throttle cable
11 Oil pump cable
12 Brake lever holder
13 Master cylinder assembly
14 Handlebar holder (upper)
15 Cable holder
16 Handlebar
17 Handlebar holder (lower)
STEERING
Q'ty
Remove the parts in the order listed below.
1
3
1
1 Disconnect.
1 Disconnect.
1 Disconnect.
1 Disconnect.
4 Disconnect.
1
1
1
1
NOTE:
1
After installing all parts, refer to "CABLE ROUT-
2
ING" in CHAPTER 9, to check the cable, lead
1
and hose routings.
1
1
For installation, reverse the removal procedure.
3-2
CHAS
SCH3020
Remarks
