■ Pattern C: Vertical installation, air intake port at the top
Reversing the heat exchanger and reattaching the thermistor are required.
■ Pattern D: Horizontal installation, air intake port at the left
Reversing the heat exchanger and reattaching the thermistor are required.
AIR
The unit as shipped from the factory is not confi gured for vertical down or horizontal right
discharge applications and must be converted in the fi eld to work in those applications.

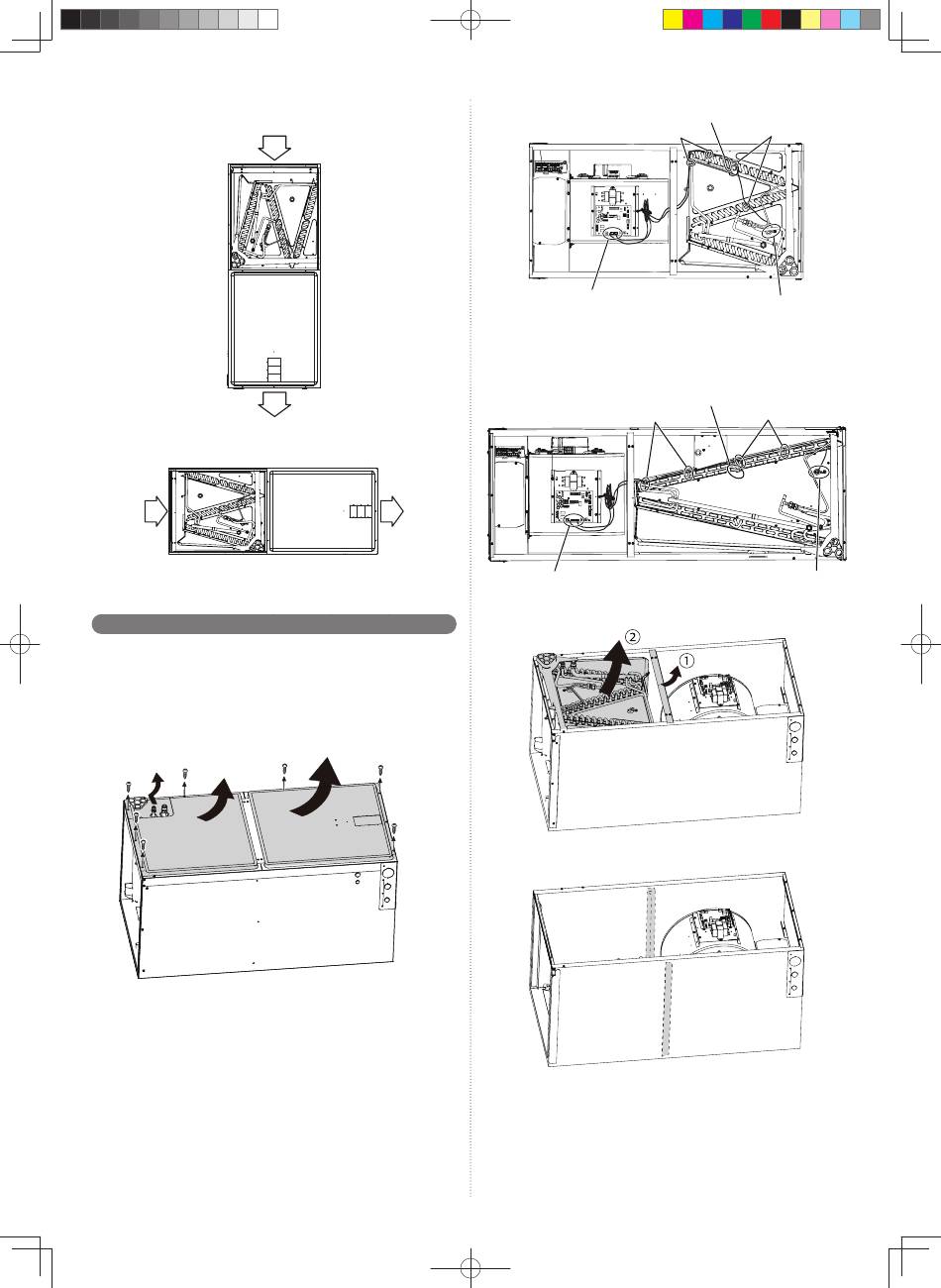

3. 4. Reversing the heat exchanger

DRIP LOOP NOTE: When installing the unit in down or horizontal right discharge
applications, make sure the wires going to the blower motor form a proper drip loop to
force any condensate that might form on the wires to drip off the lowest point of the wiring
instead of entering the motor or motor control. This may require cutting the wire-tie and
installing a new wire-tie to form a new drip loop.
Reverse the heat exchanger by the procedure below.
(1) Remove the screws fi xing three sheet metals.
Then remove the sheet metals.
(2) From here, the work is diff erent depending on the 24/30 models or 36/48 models. The
work is described individually.
En-6
9384203007-04.indb 6
9384203007-04.indb 6
AIR
AIR
AIR
■ For 24/30 models
③ Cable tie
① Connector
• Remove the screws fi xing the control box cover.
① Remove the control box cover and remove two connectors.
② Remove the screw and remove the Thermistor (room) inside the hole.
③ Cut the cable ties at four places to remove the cable.
■ For 36/48 models (Perform in the same way as 24/30 models.)
③ Cable tie
① Connector
(3) ① Remove the sheet metal in the center.
② Remove the heat exchanger.
(4) Install the supplied rail with screws.
Thermistor (pipe)
③ Cable tie
② Thermistor (room)
Thermistor (pipe)
③ Cable tie
② Thermistor (room)
