Abus Terxon SX AZ4301 Manuel D'installation page 87

1
Connection of 230V mains supply with primary fuse (T 250V 250mA).
2
230V AC / 12V DC transformer.
3
Terminal connector strip for siren, flashlight, programmable output, loudspeaker, 12V DC power supply
and alarm zones.
4
Tamper contact of alarm panel housing.
5
Terminal connector strip for standby battery.
6
Terminal connector strip for control units.
7
Terminal connector strip for extra transistor outputs or the optional relay module.
8
Room for 12V standby battery (7Ah) and cabling.
Note for 230 V connection
Do not switch on the mains power yet!

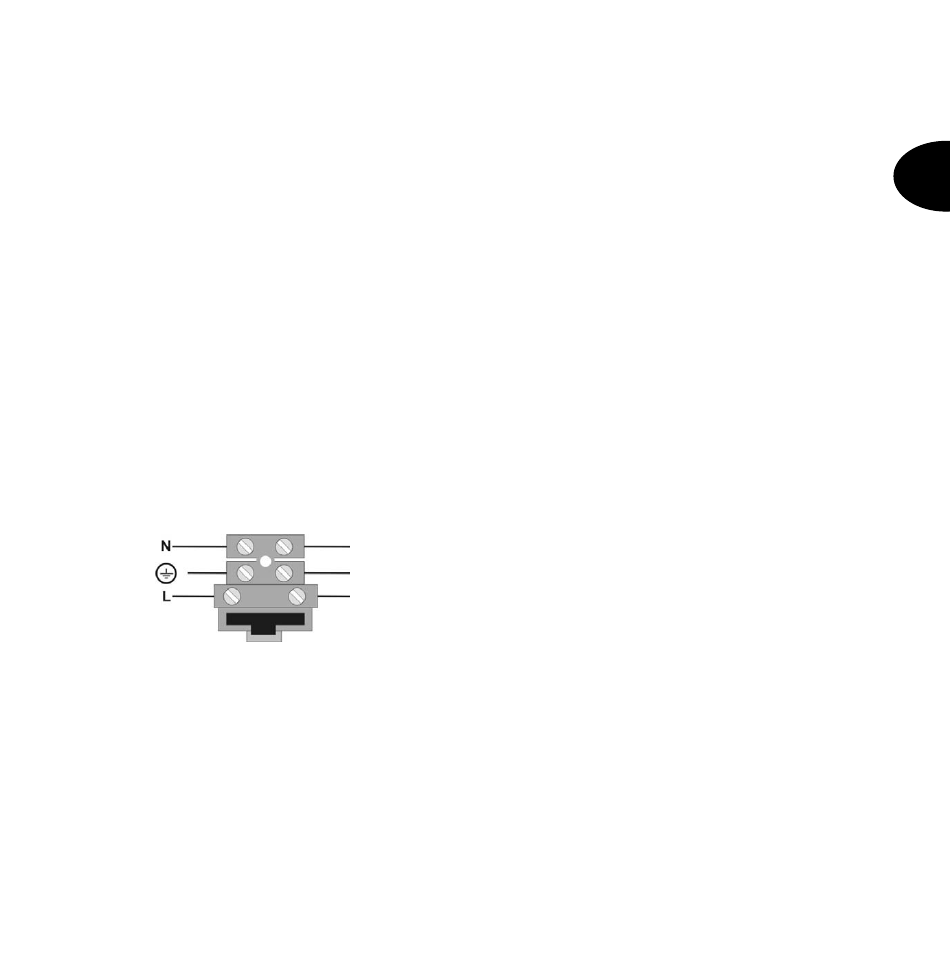

Connect the mains power to the terminal connector strip as follows:
n
ground (green/yellow)
Phase (black)
