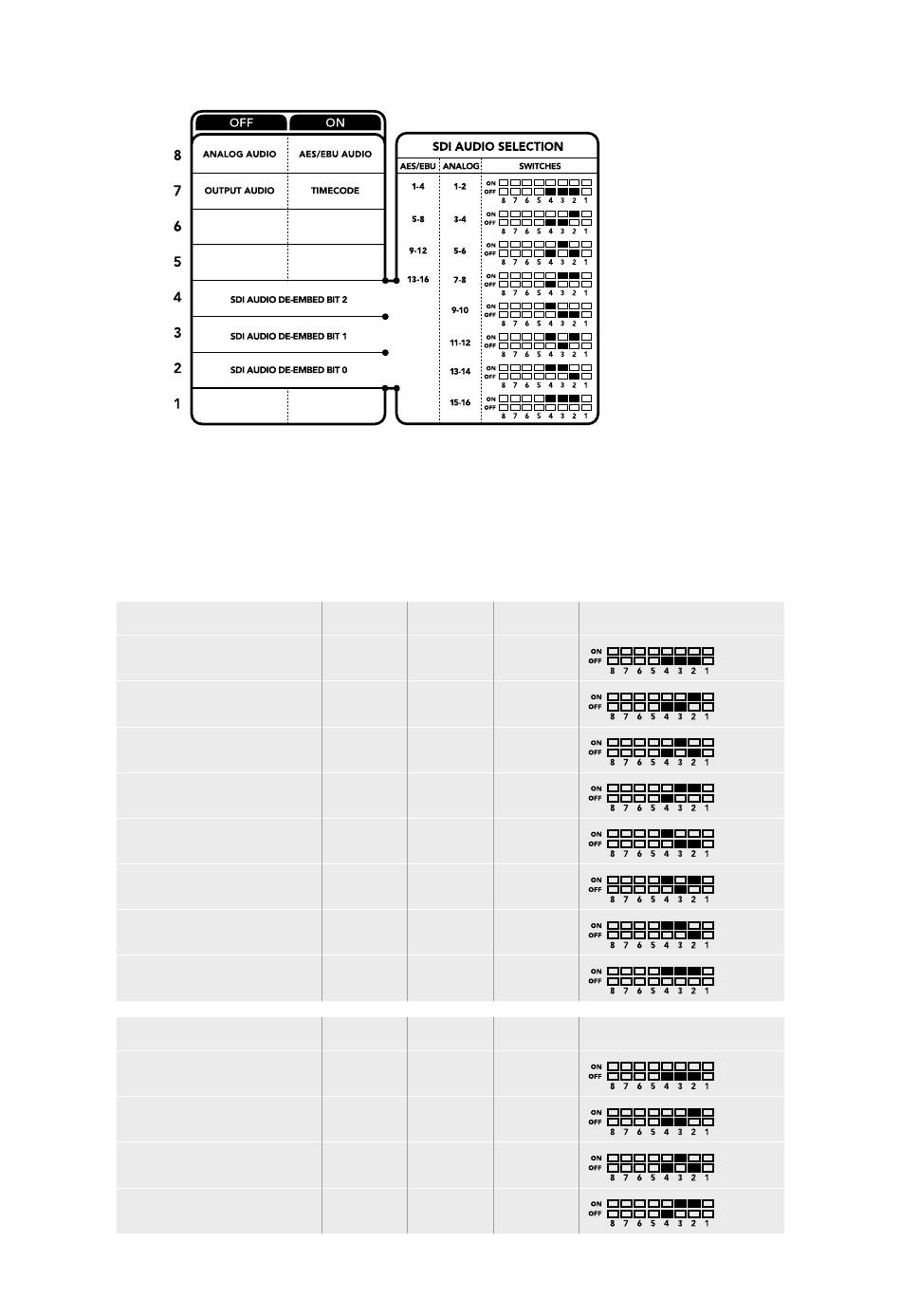

The switch legend on the base of your converter gives you all the
information you need to change conversion settings.
SDI Audio Selection Table
By using the following combinations of switch settings, you can select which SDI audio channels
to embed into your Teranex Mini – SDI to HDMI 12G's output signal.
Analog Audio Channels
1 and 2
3 and 4
5 and 6
7 and 8
9 and 10
11 and 12
13 and 14
15 and 16
AES/EBU Audio Channels
1-4
5-8
9-12
13-16
Switch 4
Switch 3
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON
ON
OFF
ON
OFF
ON
ON
ON
ON
Switch 4
Switch 3
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON
Switch 2
Switch Diagram
OFF
ON
OFF
OFF
OFF
ON
OFF
ON
Switch 2
Switch Diagram
OFF
ON
OFF
ON
Teranex Mini – SDI to HDMI 12G
27
