7.3 Maintenance of other water circuit
components
IMPORTANT WARNING:
• The external power supply must always be disconnected when
carrying out any maintenance on the humidifier.
• Do not use detergents or solvents to clean plastic components.
• Scale can be removed with a vinegar solution or a mild acetic
acid solution and a soft brush; rinse the cylinder completely
with fresh water.
• Cleaning the feed or mixing valve and drain pump
• With the power supply disconnected, shut off the water supply
and disconnect the feedwater hose.
• Remove the valves and the drain pump by unscrewing the
corresponding screws; check the condition of the valve inlet
filters;
• Clean with a solution of vinegar or diluted acetic acid using a
soft bristle brush.
• Rinse the parts with fresh water.
• Replace any components that show signs of excessive wear
or that cannot be completely cleaned. Make sure the gasket is
properly fitted in the drain valves.

7.4 Spare parts

To replace any faulty components, only use original accessories
and spare parts available from authorized Carel dealers. No
changes must be made without the express authorization of the
manufacturer.
9
7
1
3
5
10

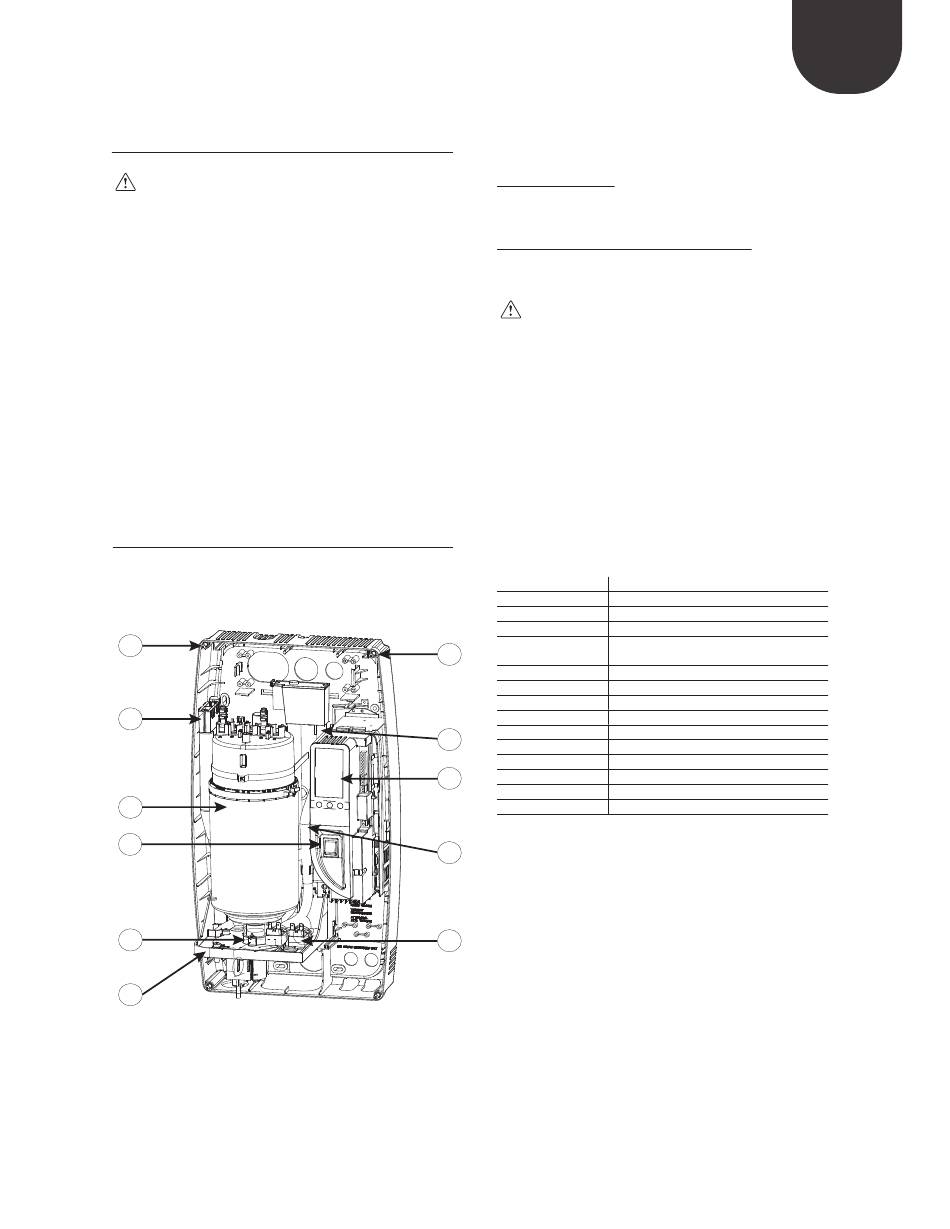

Fig. 7.c
Cleaning the fill tank: clean the tank from any built-up minerals
and check that water flows freely from the tank to the drain via
the drain pump.
Cleaning the feedwater, fill and overflow lines: check that these
are clean and not blocked and replace if necessary.
IMPORTANT WARNING: after replacing or checking the
water circuit, make sure that the components have been correctly
reconnected with the appropriate gaskets. Restart the humidifier
and complete a number of cleaning cycles (from 2 to 4, see
paragraph 4.4 "Starting with a new cylinder"), then check that
there are no water leaks.
Key:
Part number Description
1 CY0S2E0002 cylinder
2 CHM04V0003 Control module and transformer assembly
3 CHSW16000 On-off switch for compact steam
4 CHKFV02003 FILL SOLENOID VALVE + DRAIN TEMPERING
9
230 V FOR DRAIN PUMP
5 CHKDP02000 KIT FOR DRAIN PUMP 230V
6 CHKFT00000 FILL TANK + PLUG FOR DRAIN PUMP
7 CHKDT0000 DRAIN TANK + PLUG FOR DRAIN PUMP
8 CHKTD00001 DUCT TUBING KIT FOR DRAIN PUMP
9 CHKSCREW00 COVER FASTENING SCREWS
6
10 CHKBT00001 BOTTOM TANK FOR DRAIN PUMP
- CHKCAB0004 WIRING KIT FOR UNIT WITH DRAIN PUMP
2
- MCH2004853 RS485 KIT
- CHKADAP000 STEAM CYLINDER HOSE ADAPTER
- 98C425C001 RS232 - RS485 SERIAL CONVERTER
8
4
31
