Model of compactSteam available:
Duct steam distribution
The compactSteam model number is identified by a 10 character
alphanumeric part number. The meaning of each character is as
follows:

2. MODEL

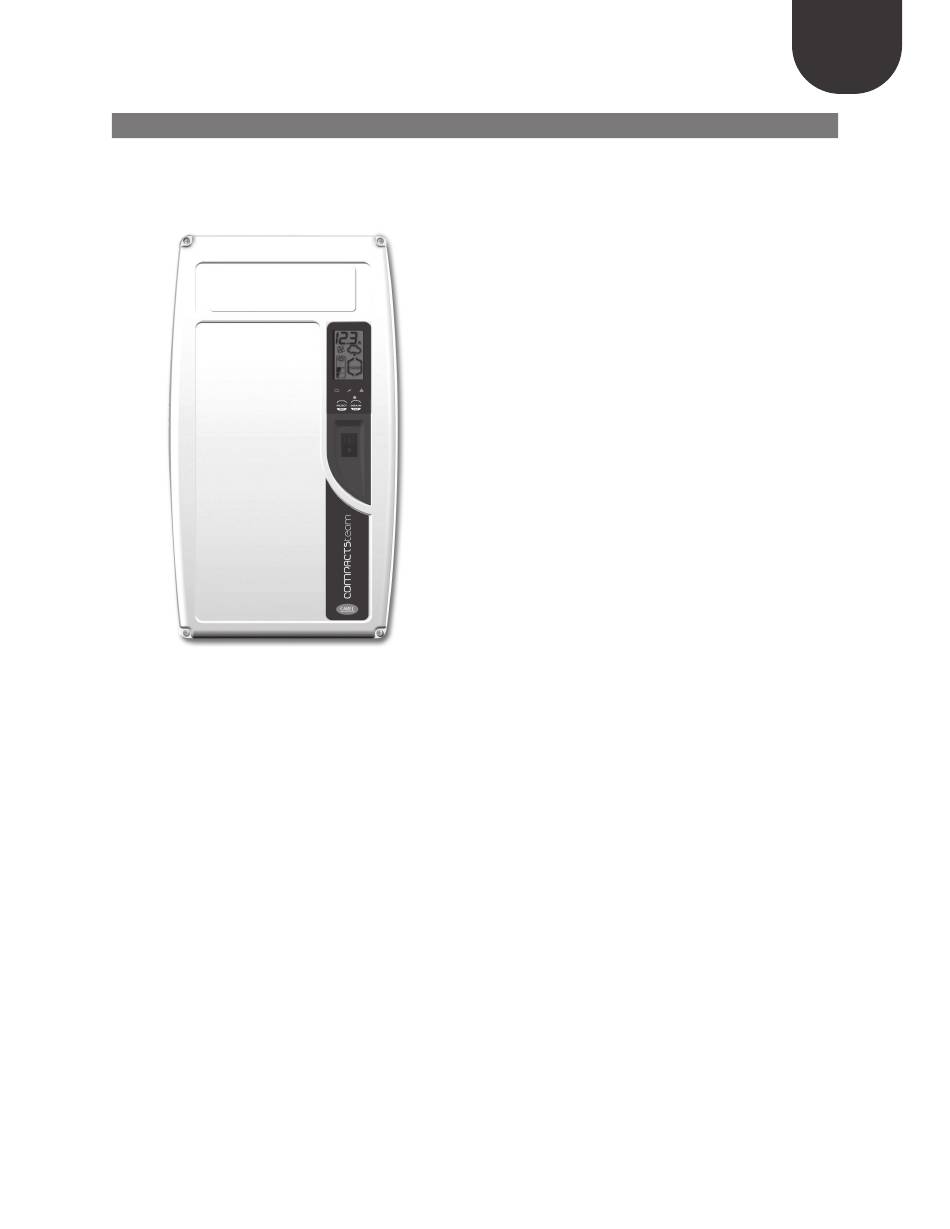

Fig. 1.a
13
CH m ss c v xx r
CH = stands for compactSteam Humidifier and is always present;
m = model: 0 stands for humidification in the duct;
ss = nominal steam flow-rate in kg/h, this is always 04 = 4.5
kg/h;
c =
type of control, always N (N = ON/OFF control);
v = power supply: 0 = 115/230 VAC single-phase;
xx = customization;
r = version.
Model Ref. Type of installation Power supply Approval
CH004N0003 Fig. 2.a duct
"compactsteam" +03U0092EF - rel. 1.0 - 2020.08.31
ENG
115/230 Vac ETL
Tab. 1.a
