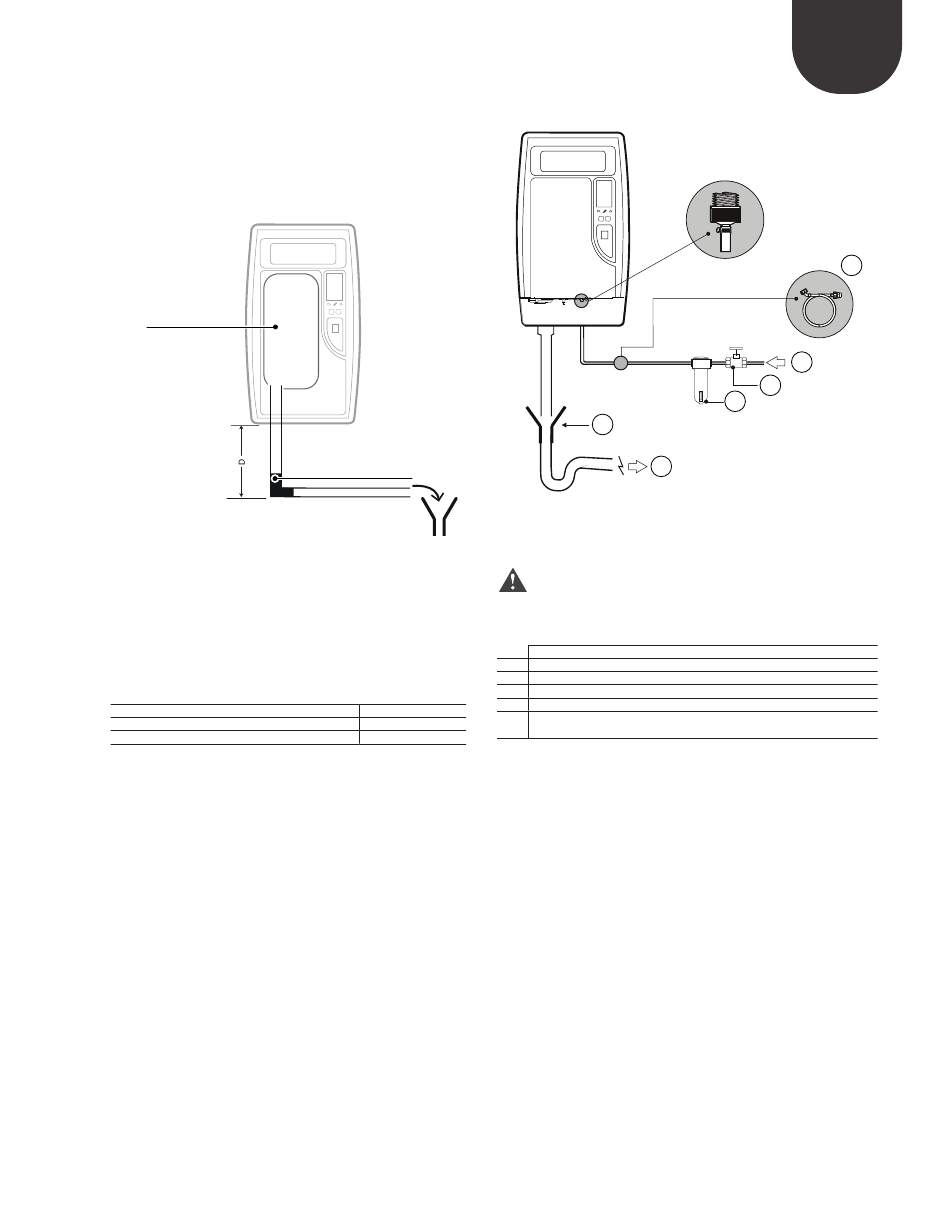

In this case, the drain pipe can only be connected at the bottom of
the appliance (Fig. 3.f and must have a minimum inside diameter
of 19 mm (3/4"); it must be fixed to the humidifier drain outlet
without weighing on the unit. Observe the following instructions
for the installation distances.
boiler
D = 3.2 ft (1m)
Fig. 3.f
General instructions for all units
The characteristics of the drain line are shown in Tab. 3.e. It is
also recommended to provide a funnel to interrupt continuity
in the drain pipe and avoid flooding inside the appliance.
compactSteam is equipped with a mixing valve that, by opening
at the same time as the drain pump, introduces cold feedwater
into the drain line so as to guarantee a maximum drain water
temperature of 60°C (140°F).
Instant drain flow-rate 60Hz
Nominal connection diameter
Drain temperature
Important: for all units, a distance of 1m or 3ft must be
ensured without any bends, underneath the drain
Key:
1
Supply
2
Manual valve
3
External filter (recommended)
4
Drain funnel
5
Drain
23.5 l/min / 6.2 gpm
6
Water fill hose FWH3415003 (1.5 m /4ft long)
19 mm / 3/4"
60°C / 140°F
Tab. 3.d
17
2
3
4
5
Fig. 3.g
(CHF04N2003)
"compactsteam" +03U0092EF - rel. 1.0 - 2020.08.31
ENG
6
1
