IMPORTANT WARNINGS:
Before starting:
1. check that the humidifier is in perfect condition,
2. make sure there are no water leaks and that the electrical
components are dry.
Do not connect the power supply if the humidifier is damaged or
even partially wet!
When installation is completed, flush the supply hose for around
10 minutes by piping water directly into the drain, without
sending it into the humidifier; this will eliminate any scale or
processing residues that may cause foam when boiling.
IMPORTANT:
when starting the humidifier with a new or
empty cylinder, it may take some time (several hours) for the
water to reach a sufficient concentration of minerals as to allow
nominal steam production.

4.1 Checks when starting

Before starting the humidifier, check that:
• The water supply is connected, the line has been flushed and the
taps are open.
• The drain is connected as explained in the paragraph 3.5 (flood
prevention funnel and drain trap under the unit).
• The power supply is connected in accordance with the instructions,
the laws in force and the rating labels on the unit.
• The power fuses are installed and intact.
• Any air flow switch is wired to open if there is no air flow.
• Any limit humidistat is wired to open if the humidity increases
above the set value.
• All the wire connectors on the unit are tight.
• The steam and condensate hoses are installed correctly, without
kinks or twisting, and are correctly sloped in compliance with the
manual.

4. INSTALLATION

4.2 CompactSteam control device

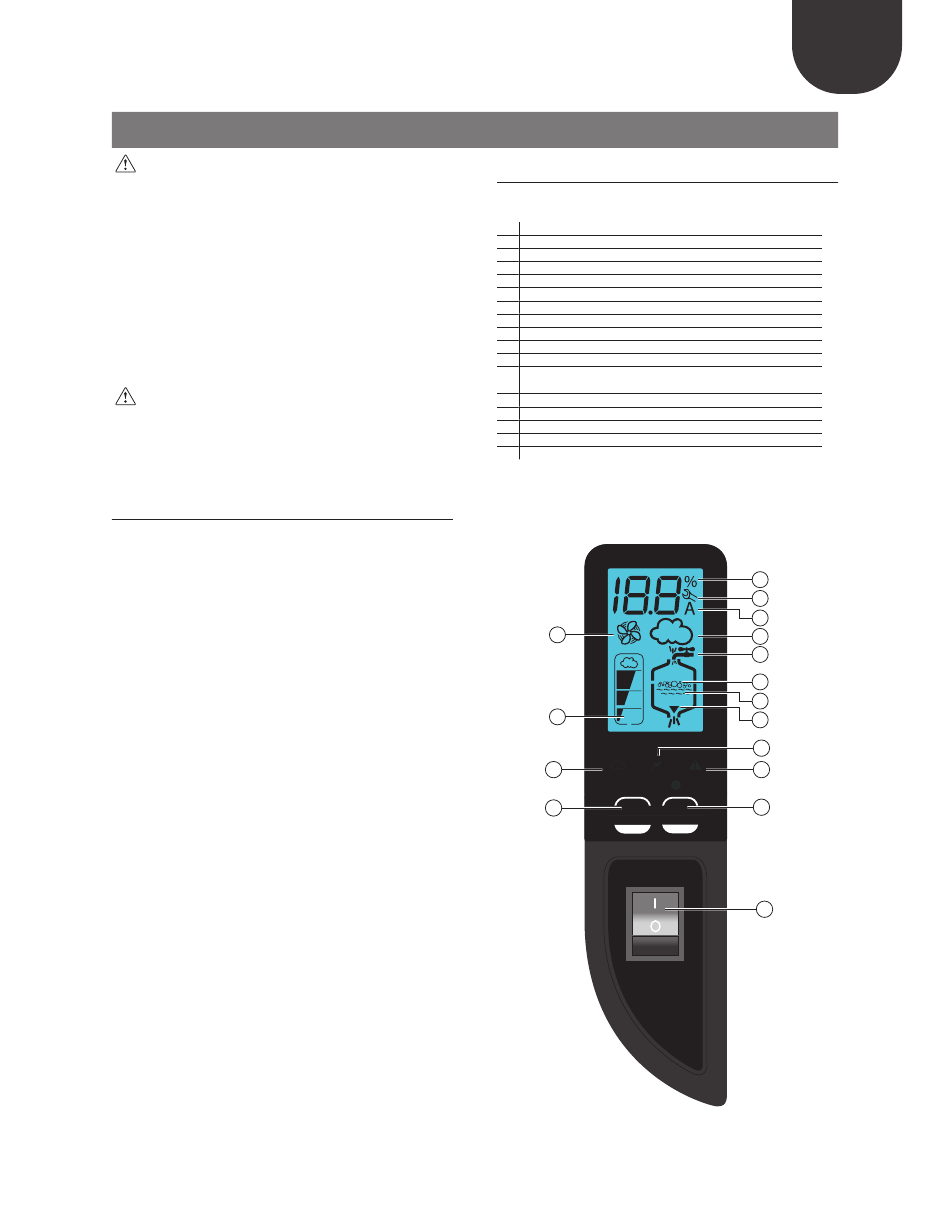

The compactSteam control device features an LCD that, using icons
and numbers, displays the operation of the system:
1 Steam production as a % of rated capacity
2 Active alarm icon
3 Instant current flow in amperes (default display)
4 Steam production in progress
5 Cylinder fill in progress
6 Foam detected inside the cylinder
7 Water inside the cylinder
8 Cylinder drain in progress
9 Red LED: alarm
10 Yellow LED: power supply
11 Green LED: operation
12 Drain button for manually emptying the cylinder and confirm-
ing the values set for the parameters
13 On/Off button
14 "Reset" button to reset alarms and access the parameters
15 Level of steam production: 33%, 66%, 100%
16 Fan relay active
11
14
25
16
15
RESET DRAIN
sel
SEL ENT
Fig. 4.a
"compactsteam" +03U0092EF - rel. 1.0 - 2020.08.31
ENG
Tab. 1.a
