Aesculap ®
activO frame system
►

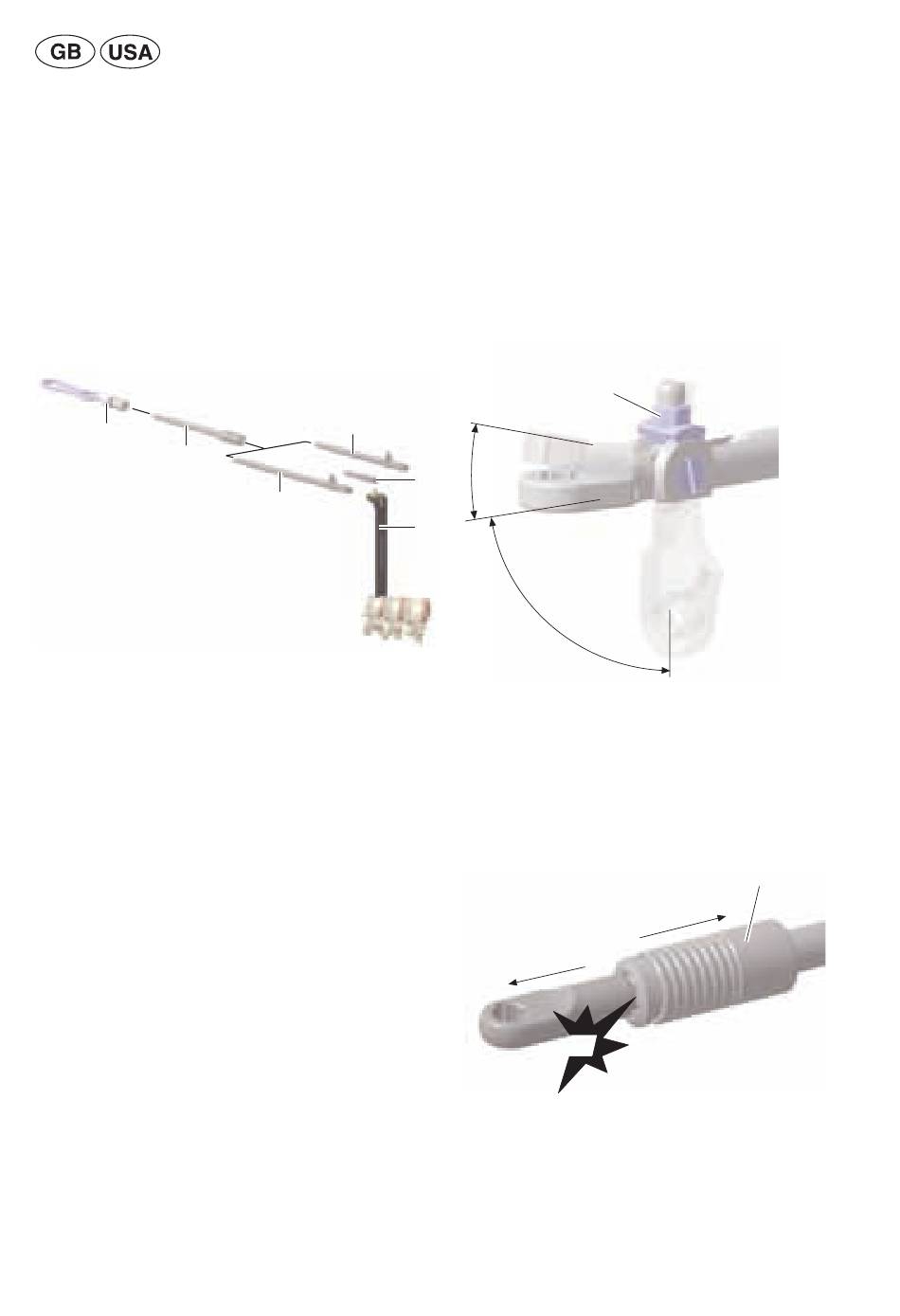

If necessary mount universal holder J on the
respective coupling.
►
To extent the construct, install connecting piece
with quick-release coupling A on the respective
coupling, see Fig. 2.
J
A
Fig. 2
Adjusting the inclination angle of the
coupling bars
Note
Coupling bars B can be adjusted to an inclination of
between 15° upwards and 90° downwards.
►
To loosen the coupling lock, apply T-wrench H on
hexagon 1 and untighten counterclockwise.
6
B
C
B
D
►
Move T-wrench H to the required angle and
tighten hexagon 1 turning the tool clockwise, see
Fig. 3.
Coupling bar B is locked again.
1
15°
90°
Fig. 3
Releasing the quick-release coupling
►
Grip the quick-release coupling 1 of the connect-
ing piece A or the UNITRAC universal holder J on
the handle part and pull backwards, see Fig. 4.
click
Fig. 4
Note
Optionally, optics holder RT081R can be fixed to UNI-
TRAC universal holder J and connecting piece with
quick-release coupling A.
1
