Mounting the OP field illumination bar
Burns from the hot end of
optical fiber!
►
WARNING
►
►
Affix the surgical lighting rod I directly with the
fastening clip G or, using the bracket BV020R and
the bracket for OP surgical lighting FG410R affix
onto the coupling bars A, B or C.
The OP field illumination bar has three different light
cable connectors, see Fig. 10.
►
Unscrew connectors that are not required.
ACMI
Fig. 10
When using the product
with a light source, make
certain that the end of the
optical cable does not
touch human tissue or
highly inflammable mate-
rials. Keep a distance of at
least 10 mm.
Only use light sources of a
power rating of up to 180
W.
Wolf
Aesculap
Olympus
Storz

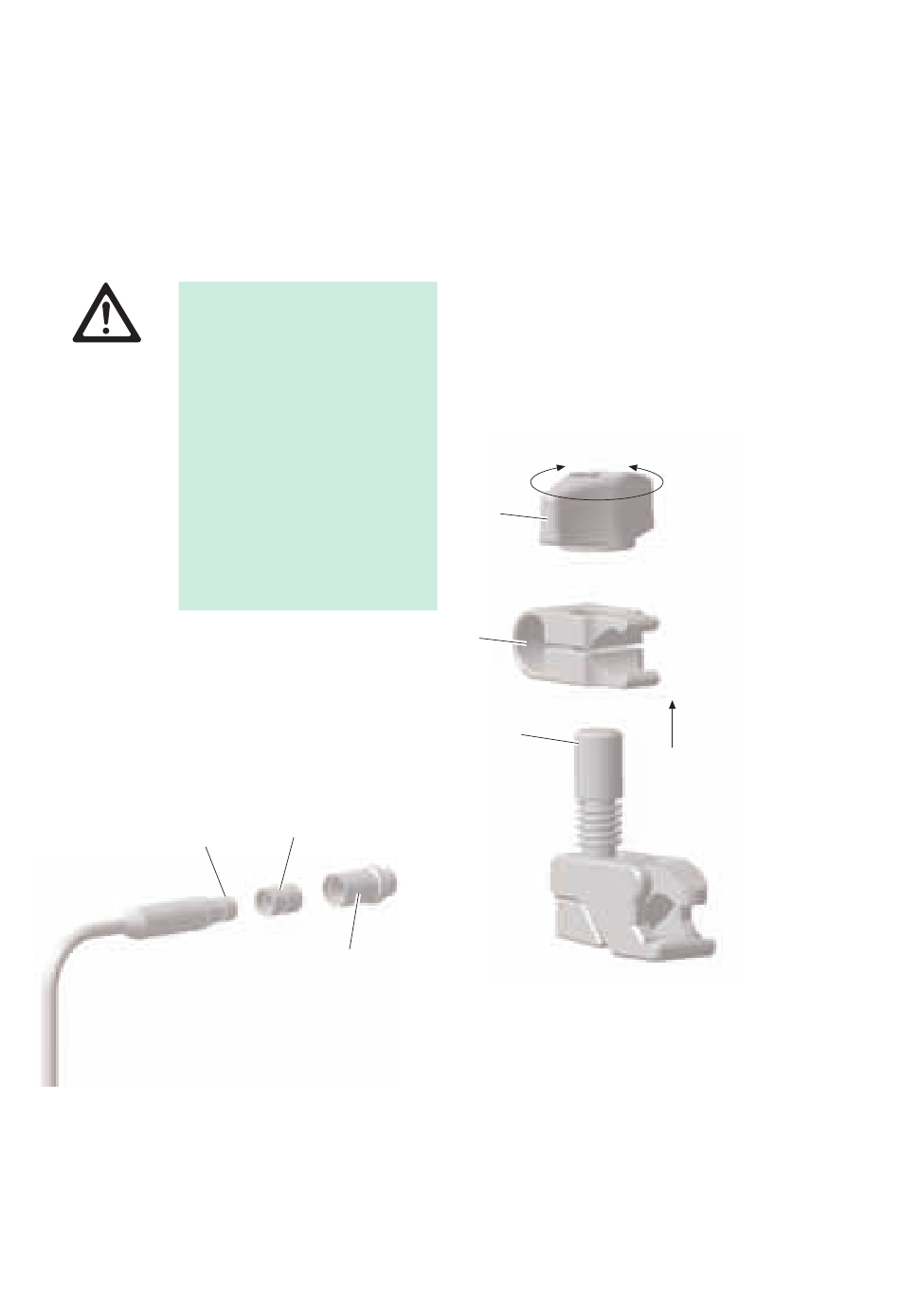

Disassembling/Assembling the fastening
clamp
Disassembling
►
Remove fastening nut1 from threaded pin 3 by
turning it counterclockwise.
►
Remove jaw part 2, see Fig. 11.
1
2
3
Fig. 11
Assembling
►
Put jaw part 2 with its hole over threaded pin 3.
►
Screw on fastening nut1 clockwise, with the hexa-
gon facing upwards.
