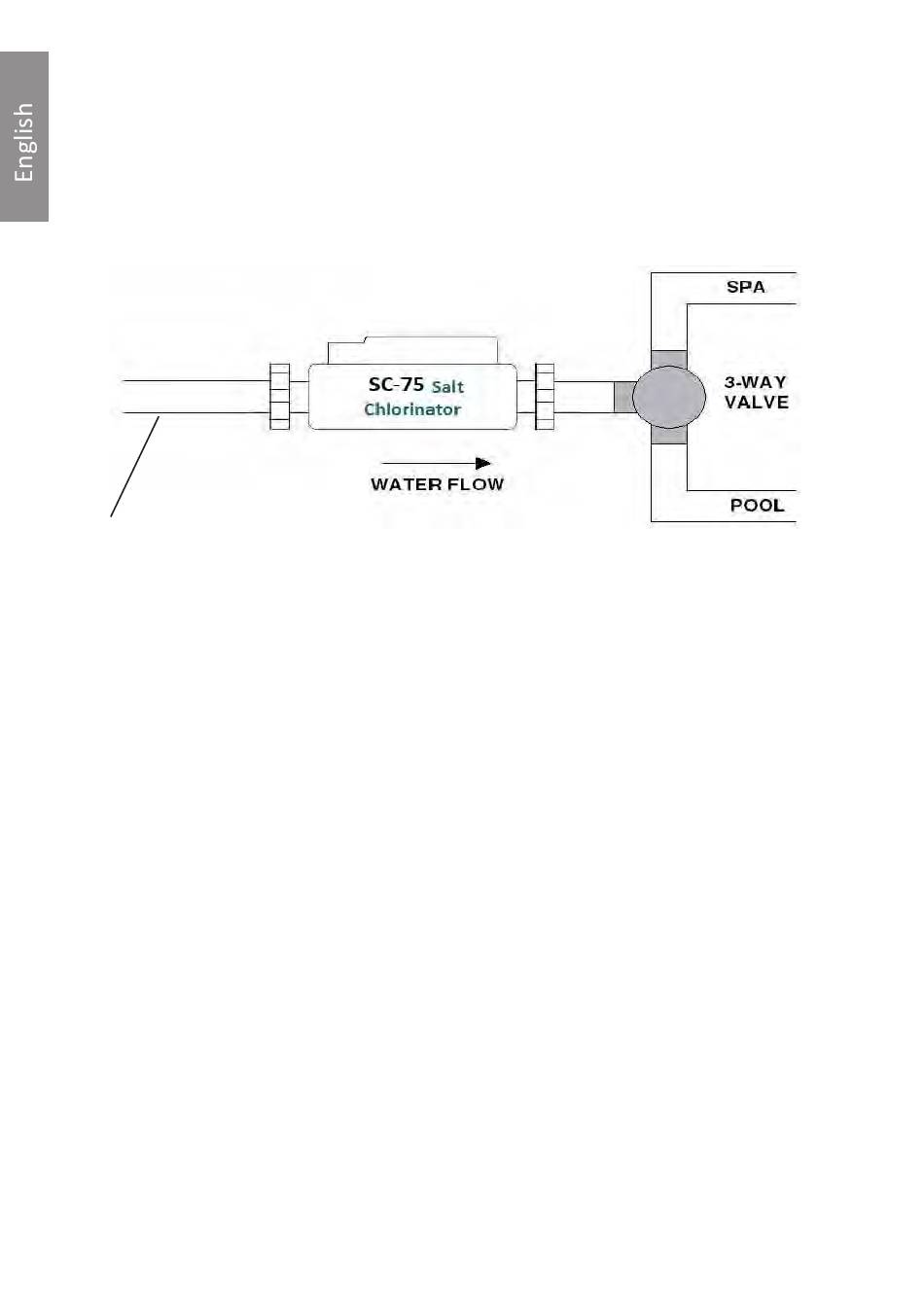

SC-75 Plumbing Diagram
Plumbing the SC-75 Salt Chlorinator:
• Always install the SC-75 Salt Chlorinator AFTER the filter and heater. The SC-75 should be no closer than 1m away from
the heater outlet.
• If the SC-75 is installed on a pool/spa combination system, install (see diagram below) the SC-75 BEFORE the pool/spa
return valve to allow proper chlorination of both the pool and spa and also to avoid creating gas traps in the pipes.
Note: For best flow, provide
at least 30 to 45cm of straight
pipe in front of the cell inlet.
6
NOT TO SCALE
