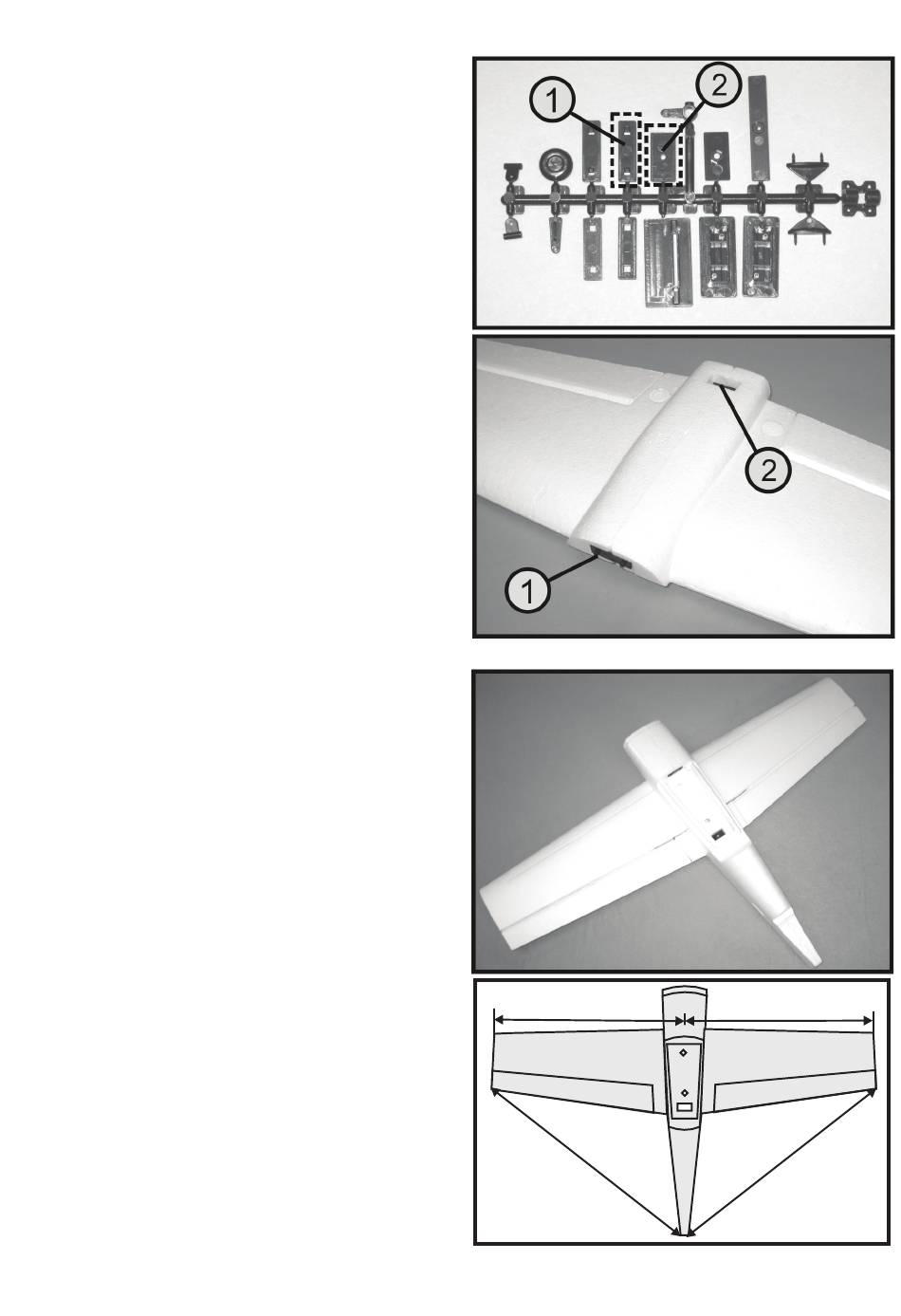

g) Mounting the Wing Bracket
Before you glue the front wing bracket (1) solidly to the wing, place it into
position without glue and check that it sits correctly.
To do so place the wing and the fuselage together loosely. Once the correct
position is found, you can glue to wing bracket (1) and the screw base (2)
solidly into the wing.
h) Mounting the Wing
Slide the wing screw - together with the base plate - from below through the
screw hole into the wing.
The rubber ring provided is then slotted onto the screw and prevents the
screw falling out.
Now place the wing on the fuselage and screw both parts together.
Check the orientation of the wing in relation to the fuselage. The two distances
„A" and „B" must be of the same length.
40
B
A
A=A
Figure 11
B
A
B=B
Figure 12
