Maintenance RD 16
4.12 Grease Fittings

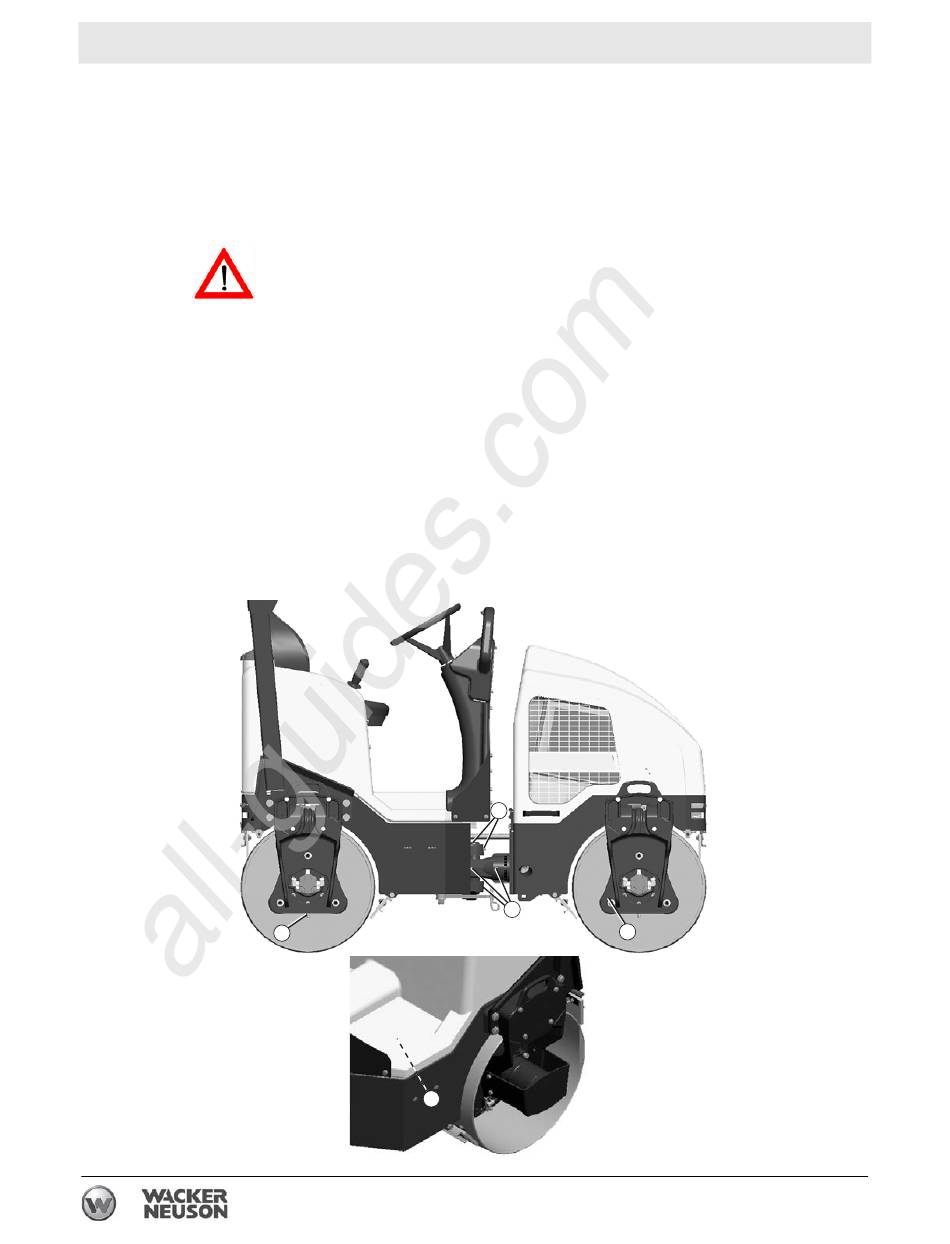

See Graphic: wc_gr003457
See section Technical Data for oil quantity and type.
Articulation Joint Lockarm:
The articulated joint is equipped with grease fittings (a) for lubrication.
To avoid being pinched by the machine halves, set the lockarm before
greasing the articulating joint!
WARNING
Rear Drum:
The rear drum drive bearing is equipped with a grease fitting (b)
located at the center of the drum behind the right rear drum support.
Exciter:
The exciter is grease lubricated. There are two grease fittings (c), one
on each side of the machine, located behind the front drum supports.
Steering Cylinder:
The steering cylinder is located under the operator's platform. There is
a grease fitting near the base and rod ends of the cylinder (d).
a
a
c
b
d
wc_gr003457
