RD 16

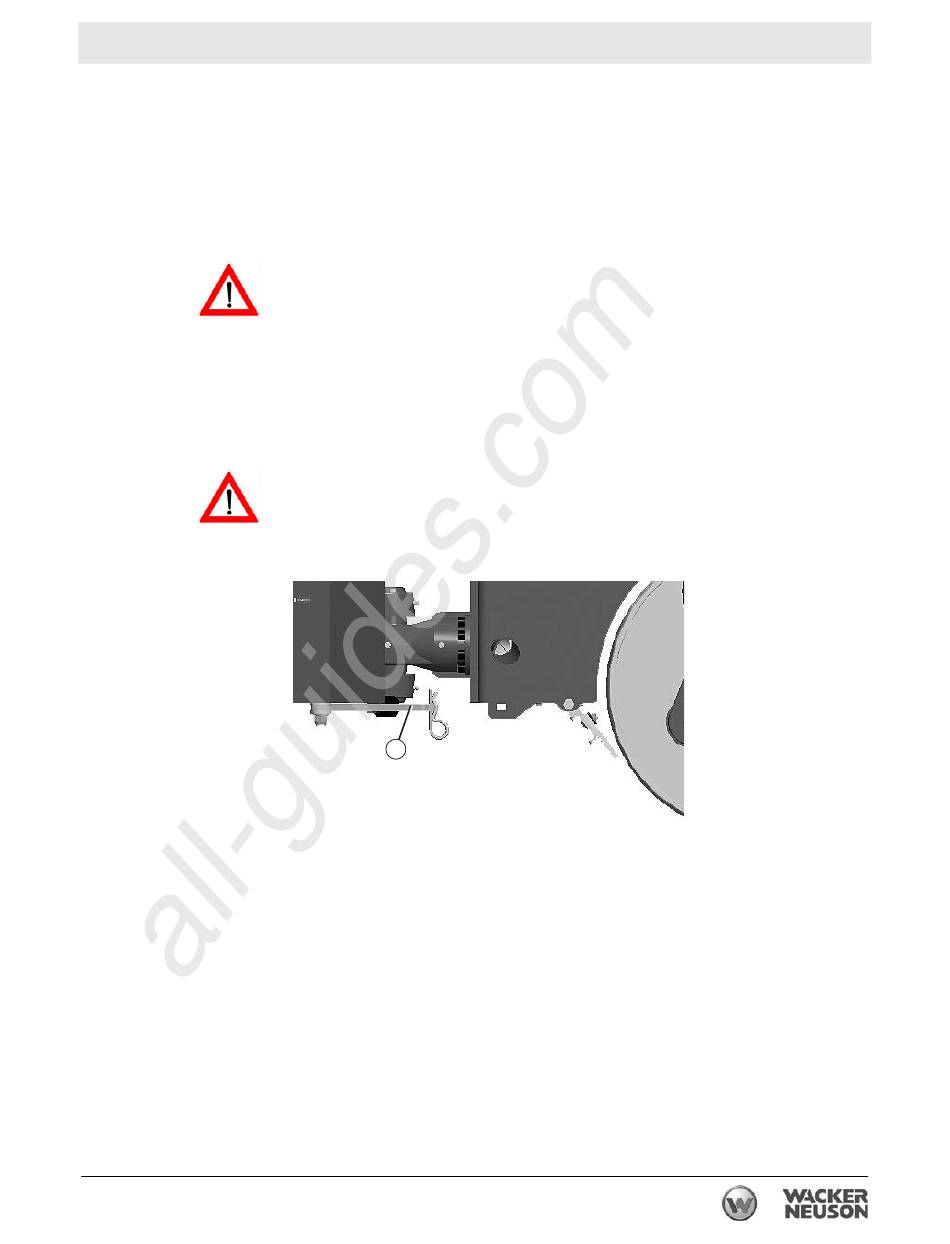

3.12 Articulation Joint Lockarm
See Graphic: wc_gr002956
WARNING
WARNING
wc_tx001075gb.fm
All manuals and user guides at all-guides.com
A lockarm (23), located below the articulated joint, is provided to
secure the front and rear halves of the roller together. Once secured,
the lockarm prevents the two halves from swinging together.
To avoid being pinched by machine halves, set the lockarm before
lifting the machine for transport or repairs!
To set lockarm, release it from its holder and swing it out from its stored
position. Place the forward end of the arm into the hole provided in the
front frame of the machine. Secure it in this position using the large
hairpin cotter provided.
ALWAYS disengage and stow locking bar for the articulated steering
joint before operating machine. The machine cannot be steered when
the locking bar is engaged.
23
wc_gr002956
41
Operation
