ADJUSTMENTS
WARNING:
Before performing any adjustment, make sure the
tool is unplugged from the power supply and the
switch is in the OFF position. Failure to heed this
warning could result in serious personal injury.
The saw has been adjusted at the factory for making very
accurate cuts. However, some of the components might
have been jarred out of alignment during shipping. Also,
over a period of time, readjustment will probably become
necessary due to wear.
Do not start any adjustments until you have checked with
a square and made test cuts to be sure adjustments are
needed.
TO SQUARE THE CUTTING WHEEL TO THE
TABLE
See Figure 41.
Do not loosen any bolts for this adjustment until you have
checked with a square and made test cuts to be sure adjust-
ments are necessary. Once the botls are loosened, these
items must be reset.
 Unplug the saw.
 Using a hex key, loosen bolts on the left and right rails.
 Place a framing square against the fence and the flat part
of the wheel.
 Using set screws to adjust, move both rails at the same
time until the fence is square with the cutting wheel.
 Tighten the bolts securely.
TO ADJUST TABLE ROLLERS
See Figure 42.
If the table doesn't slide smoothly, seems too loose on the
rails, moves side to side, or is visibly off track adjustments
may be required. Only adjust front and rear tables.
To adjust the upper table roller:
 Loosen set screw.
 Turn cam bolt to adjust roller up or down.
NOTE: Only the front and rear rollers are adjustable. Do
not attempt to adjust the center rollers.
 Once the rollers are touching the rail, tighten the set screw
securely.
To adjust the lower table rollers:
 Loosen the cam bolt nut.
 Insert hex key through the hole in the left side of the table
and adjust bolt as needed.
 Once the rollers are touching the rail, tighten the cam bolt
nut securely. Repeat for each roller as required.
NOTE: Check that rollers are sliding properly after each
adjustment.
All manuals and user guides at all-guides.com
BOLT NUT
28 — English
HEX KEY
SET
SCREW
FRAMING
SQUARE
ADJUSTING UPPER TABLE ROLLER
SET
SCREW
FRONT
ROLLER
ADJUSTING LOWER TABLE ROLLERS
CAM
ROLLER
LEFT RAIL
HEX BOLTS
RIGHT RAIL

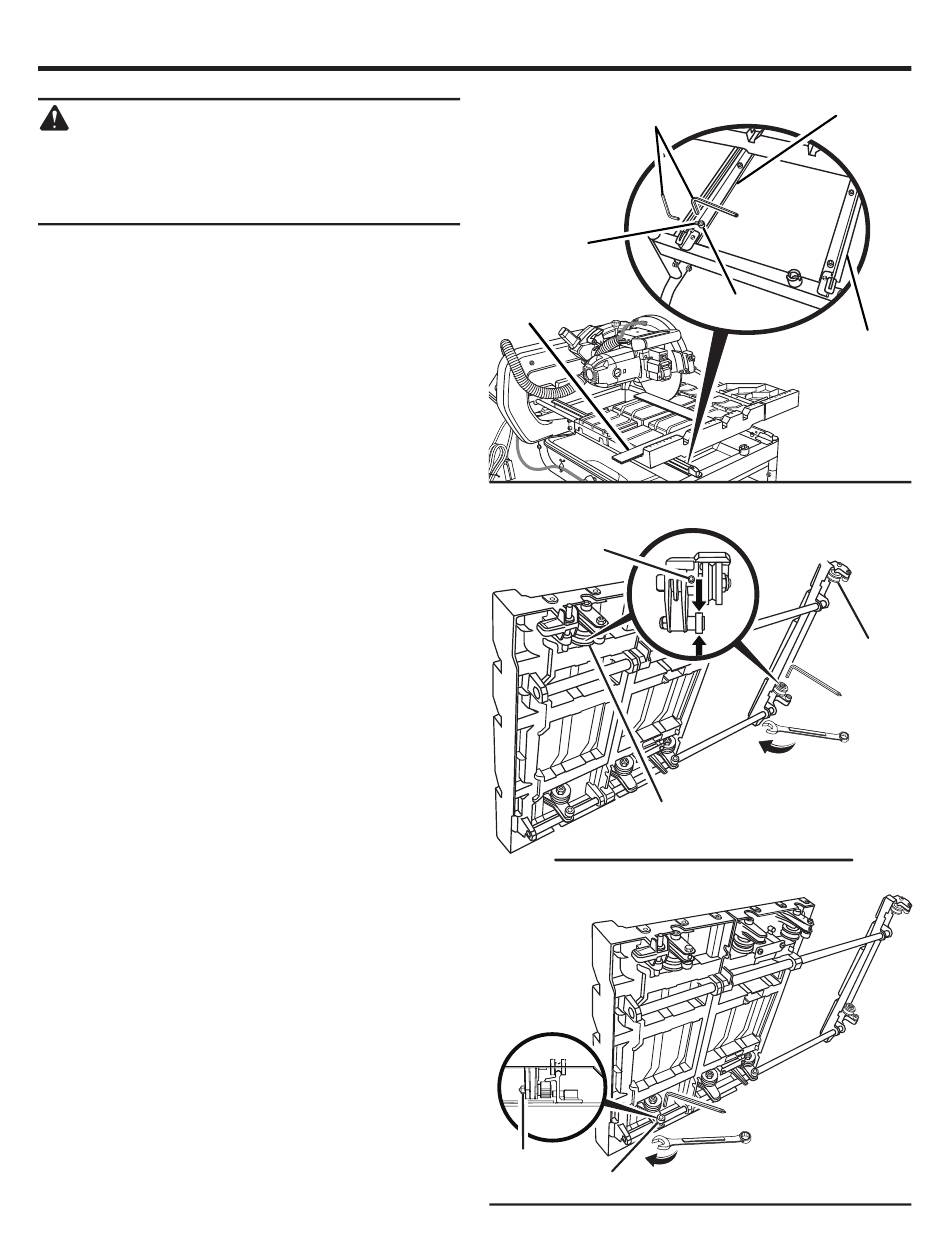

Fig. 41
