OPERATION
TO CHANGE CUTTING WHEEL DEPTH

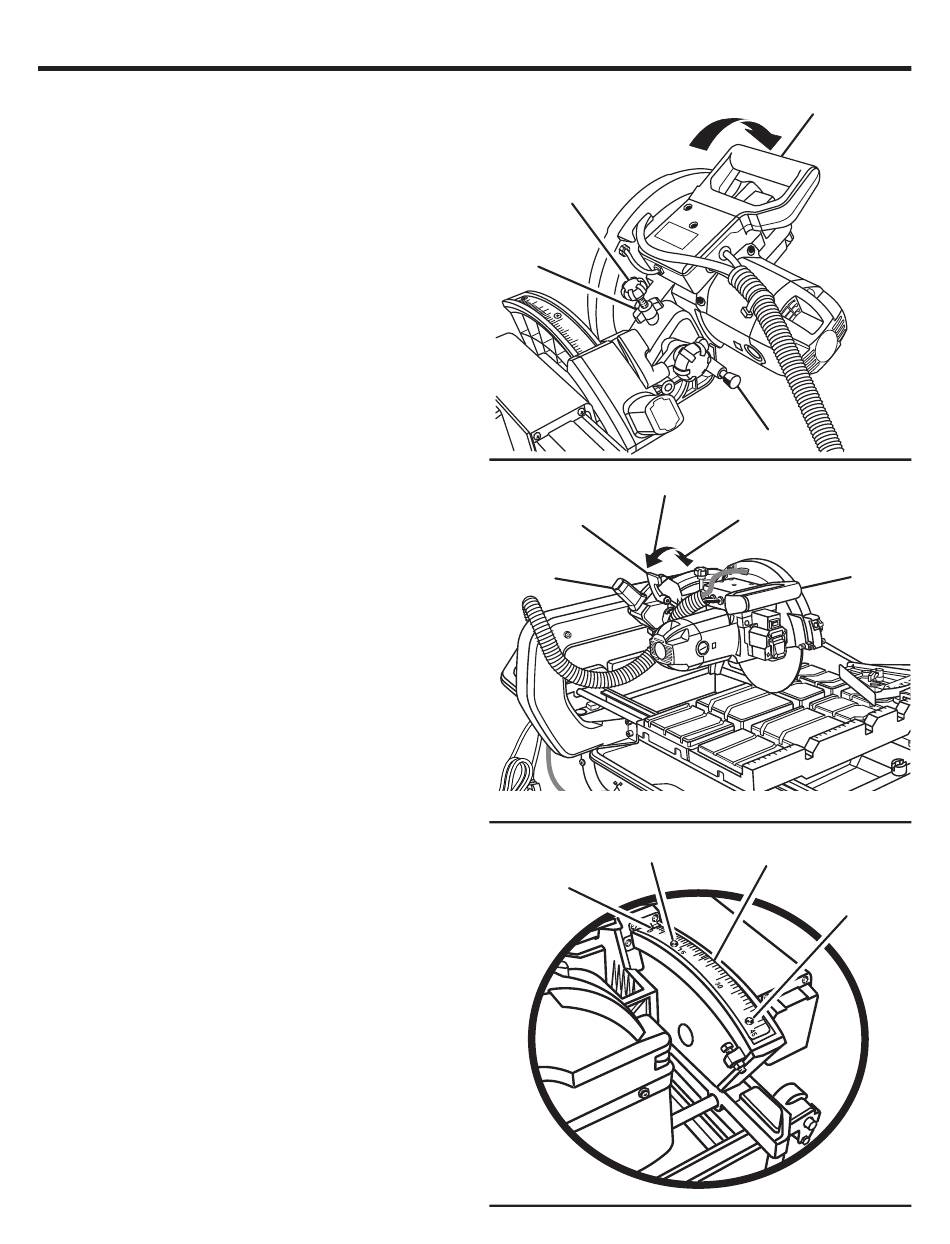

See Figure 28.
The depth stop limits the wheel's downward travel allowing
the wheel to go below the table enough to maintain full
cutting capacities. When the saw arm is locked in the down
position, this is the position for all cuts except for plunge
cuts and non-through cuts.
NOTE: If the cutting depth has been adjusted using the depth
stop, the factory settings have been changed. Set the depth
stop to the desired position using the instructions below.
 Unplug the saw.
 To adjust the depth, loosen the wing nut located on the
depth stop knob.
 Turn the depth stop knob. Set the wheel to the desired
cutting depth (wheel just below the table surface) for
through cuts. Lower the cutting wheel to the table to
check wheel clearance.
 Tighten the wing nut.
TO CHANGE CUTTING WHEEL ANGLE
(BEVEL)
See Figure 29.
NOTE: A 90° cut has a 0° bevel and a 45° cut has a 45° bevel.
 Unlock bevel control by lifting the bevel lock lever.
 Standing at the right side of the saw, place the left hand
on the "D" handle and the right hand on the grip.
 Lift the cutting head and move the head to the desired
angle.
 Tighten bevel control by pushing the bevel lock lever
down.
TO ADJUST THE BEVEL INDICATOR
See Figure 30.
 With the cutting wheel at 0°, the bevel scale should be
pointing to 0°.
 Loosen the screw on the bevel scale and position the
bevel scale to point to 0°. Retighten screws.
 With the wheel at 45°, the bevel indicator should be
pointing to 45°.
 Loosen the screws on the bevel scale and adjust the scale
to 45°.
All manuals and user guides at all-guides.com
22 — English
DEPTH STOP
WING NUT
UNLOCK
BEVEL LOCK
LEVER
GRIP
SCREW
BEVEL
INDICATOR
D-HANDLE
Fig. 28
LOCK PIN
LOCK
D-HANDLE
Fig. 29
BEVEL SCALE
SCREW
Fig. 30
