FEATURES
KNOW YOUR TILE SAW
See Figure 3.
The safe use of this product requires an understanding of
the information on the tool and in this operator's manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
10 in. TILE CUTTING WHEEL - A 10 in. tile cutting wheel
is included with your saw.
WARNING:
Do not use wheels rated less than the speed of
this tool. Failure to heed this warning could result
in personal injury.
BEVEL LOCK LEVER - The bevel lock lever securely locks
the saw head from 0º to 45º bevel angles.
ELECTRIC BRAKE - An electric brake has been provided
to quickly stop wheel rotation after the switch is released.
A D J U S T A B L E
SYSTEM - For more accurate cuts, a laser guide is included
with the tile saw. When used properly, the laser guide makes
accurate, precision cutting simple and easy. Simply push the
button to turn the laser on or off.
LED WORKLIGHT - The saw comes equipped with an LED
worklight that lights the work area for more accurate cuts.
The worklight turns on when the saw is plugged in.

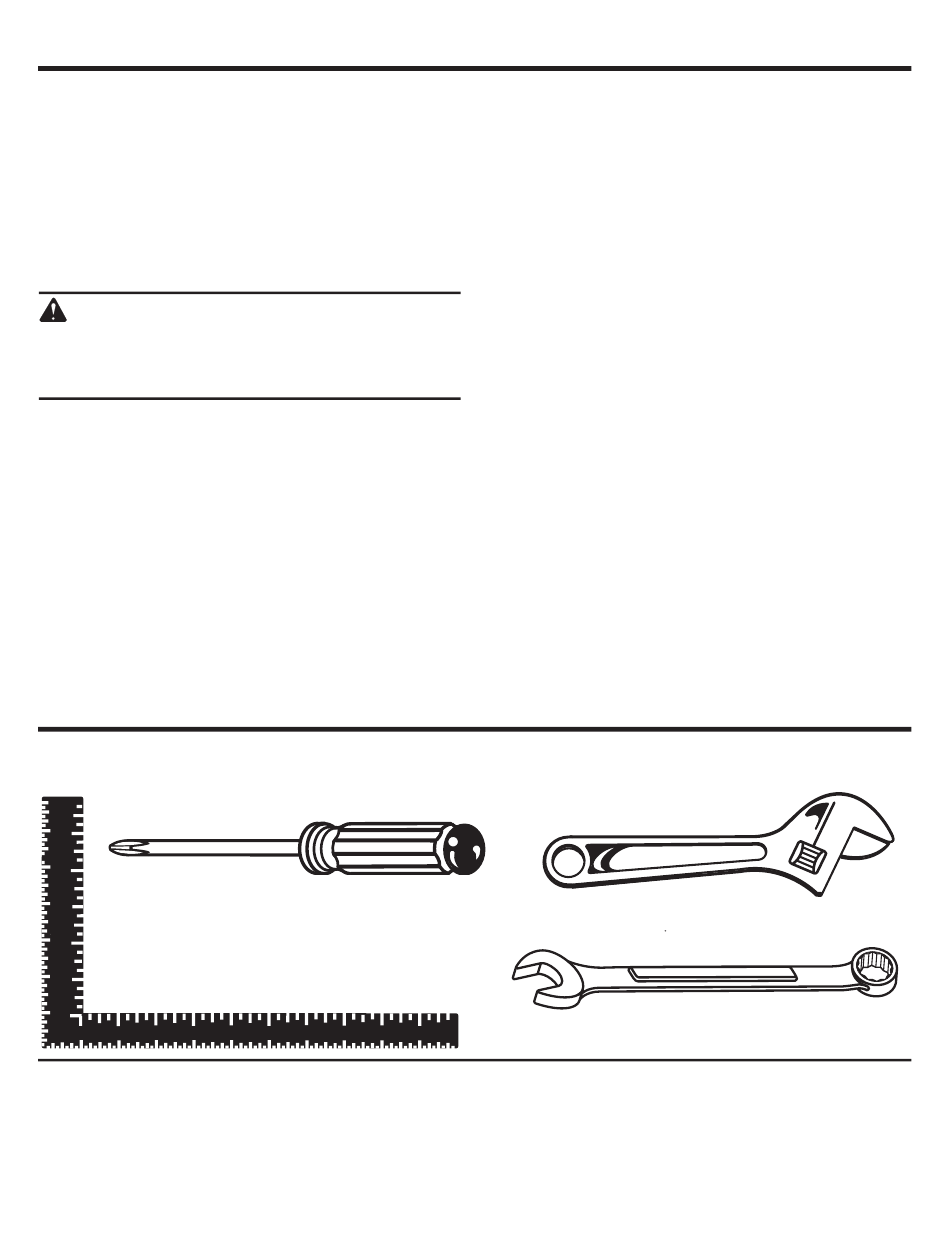

TOOLS NEEDED
The following tools (not included or drawn to scale) are needed for assembly and alignment:
FRAMING SQUARE
All manuals and user guides at all-guides.com
L A S E R
A L I G N M E N T
PHILLIPS SCREWDRIVER
MICRO-CUT FENCE SUPPORT - This machined ledge
helps prevent tile from cracking.
MITER GUIDE - The easy-to-read indicator on the miter
guide shows the exact angle for a miter cut with detents at
0°, 22.5°, and 45°.
MULTI-POSITION CUTTING HEAD - Increase cutting
capacity by moving the cutting head left or right on the saw
arm.
ON/OFF SWITCH - This saw has an easy access power
switch located on the motor housing.
SEDIMENT SEPARATION SYSTEM™ - This system
separates sediment and debris filtering the water before it is
recycled into the water tank.
SLIDING TABLE - The sliding table allows the user to slide
the workpiece into the cutting wheel for accurate cuts.
SUBMERSIBLE PUMP - The submersible pump (not shown)
provides water to the cutting wheel.
WATER TANK - Using the universal pump and water tank
together keeps water circulating to the tool eliminating the
need for frequent water changes.
WATER TRAY EXTENSIONS - When cutting larger tile, the
extensions keeps work area cleaner and drier.
WRENCH STORAGE - The wheel wrench is conveniently
stored on the back of the saw arm.
WSUV™ WET SAW UTILITY VEHICLE - Attached to the
saw base, the leg stand opens and closes with ease making
transportation simple.
10 — English
ADJUSTABLE WRENCH
10 mm, 13 mm and 17 mm
WRENCH
Fig. 4
