ASSEMBLY

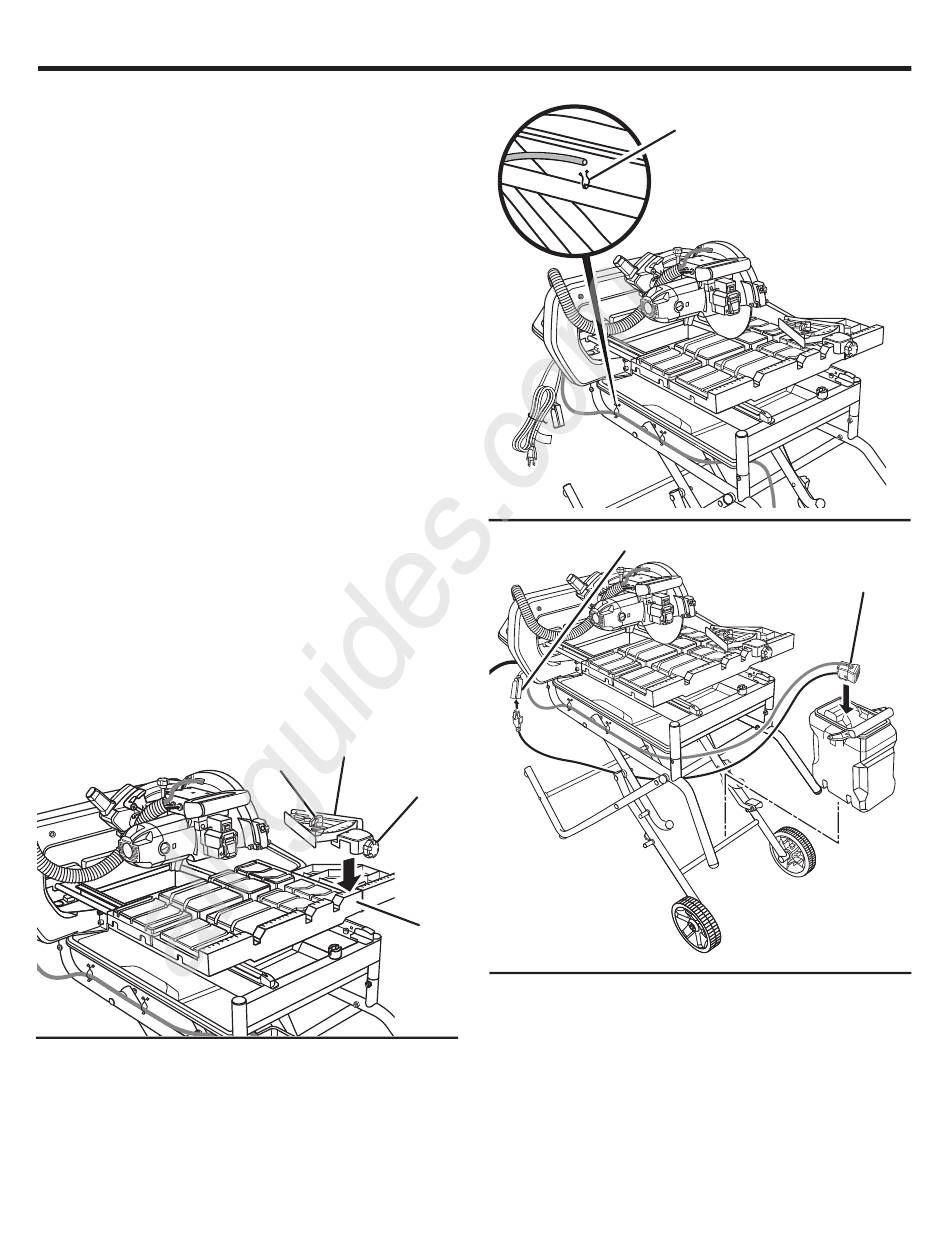

INSTALLING THE MITER GUIDE
See Figure 14.
The miter guide can be used from both the left and right side
of the cutting wheel.
 Place the slot on the underside of the miter guide on the
sliding table fence.
 Lock the miter guide securely to the table by turning the
miter guide knob clockwise.
To adjust angles:
 Loosen the lock knob.
 Set to the desired angle by moving the guide left or right.
 Tighten the knob securely before turning on the saw.
INSTALLING WATER PUMP AND WATER TANK
See Figures 15-16.
Plastic hose clamps secure clear tubes to the leg stand. To
attach a plastic hose clamp, slide the end of the clamp into
the holes on the leg stand upper tube.
 Fill the water tank to the two-thirds level of the tank.
 Center the water tank on the lower brace of the leg stand
and push the tank firmly against the center brace until it
locks into place.
 Secure with a hose clamp.
 Attach the clear tube to the submersible water pump and
set the pump in the bottom of the water tank.
 Push back rubber boot on electrical cord and plug pump
into an outlet or extension cord. Pull boot over cord
connections to help keep water off the plug.
 Check for leaks.
All manuals and user guides at all-guides.com
MITER
LOCK
GUIDE
KNOB
MITER
GUIDE KNOB
SLIDING
TABLE
FENCE
Fig. 14
16 — English
HOSE CLAMP
(PLASTIC)
RUBBER BOOT
Fig. 15
WATER PUMP
Fig. 16
