ASSEMBLY
INSTALLING TH E WATER TRAY AND TRAY
EXTENSI ONS

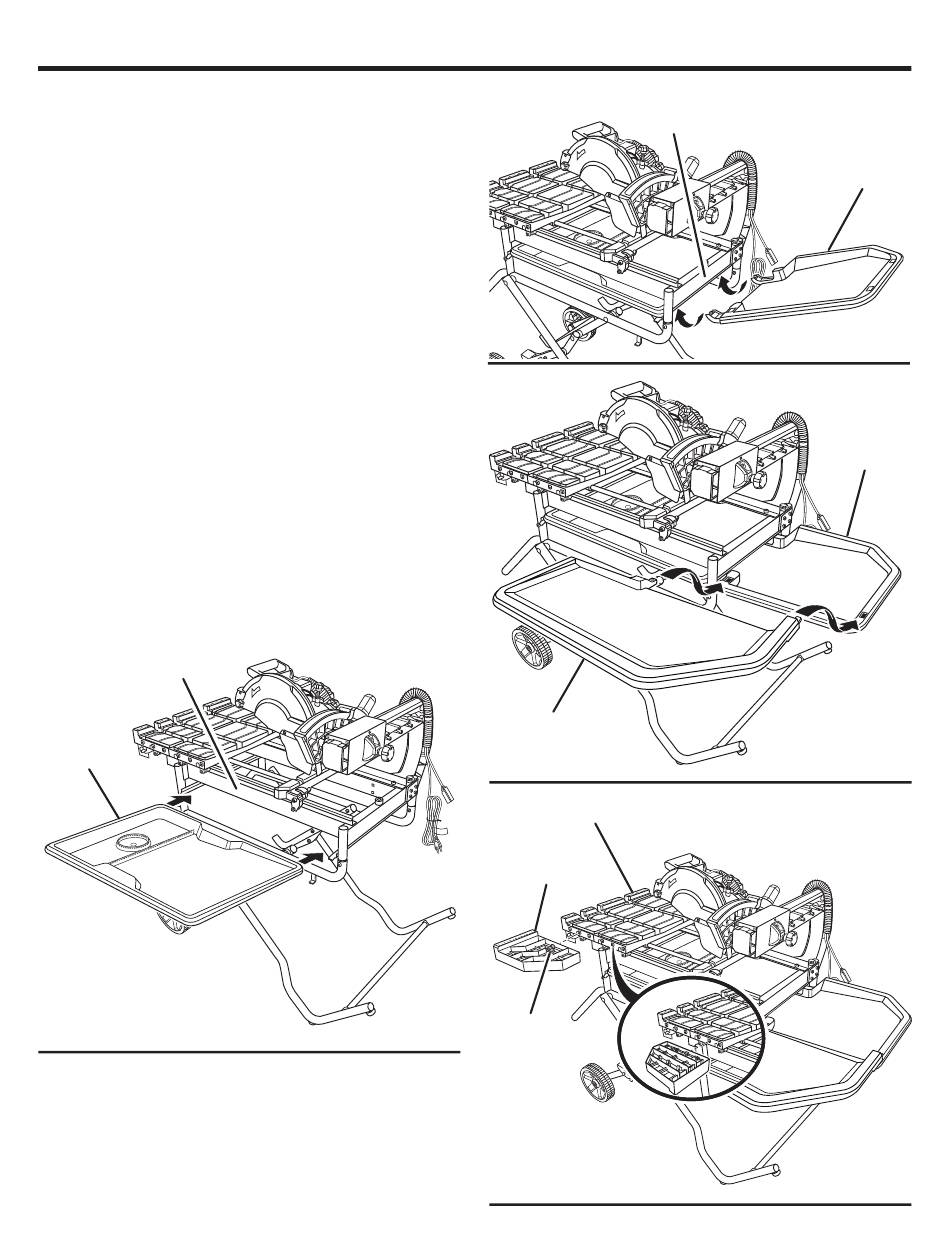

See Figures 10 - 12.
 From the right side of the saw, place the water tray (drain
plug end to the left) on the lip at the bottom of the water
tray frame. Slide the water tray in under the sliding table.
 Standing at the back of the saw, hold the water tray
extension at an angle. Tilt the tray and slip the guide
between the frame top and frame bottom.
 Once the extension slides into place, lower the water tray
extension until the tray tabs fit into the holes under water
tray frame.
 From the right side of the saw, slide the second (or side)
water tray extension into the slots on the back water tray
extension.
INSTALLING SLIDING TABLE EXTENSION
See Figure 13.
 From the side of the saw, align the pins on the sliding
table extension with the holes in the sliding table frame.
 Secure in place by turning the table extension lock knob
underneath the extension clockwise.
NOTE: For added support when making diagonal cuts of
large workpieces, turn the sliding table extension upside
down and secure in holes on middle table.
WATER TRAY
FRAME
WATER
TRAY
All manuals and user guides at all-guides.com
Fig. 10
EXTENSION
LOCK KNOB
15 — English
WATER TRAY
FRAME
WATER TRAY
EXTENSION
SLIDING TABLE
SLIDING TABLE
EXTENSION
TABLE
WATER TRAY
EXTENSION
Fig. 11
WATER TRAY
EXTENSION
Fig. 12
Fig. 13
