ASSEMBLY
LOCKING/UNLOCKING THE SLIDING TABLES
See Figure 8.
To release the rear table from the frame, cut the tie-wrap.
This saw has three sliding tables: front, middle, and rear.
The front and rear table move together.
To lock the front and rear tables:
 Pull the front table to the front of the water tray frame.
 From under the right side of the table, align the hole in
the rail with the pin in the sliding table lock lever. Push
the pin into the rail locking the table.
NOTE: When the front table is locked, the back table will
not move.
INSTALLING THE WATER TRAY FRAME
ASSEMBLY TO THE LEG STAND
See Figure 8.
 Lock the table stop by-pass by pulling up on the stop
and turning it until the slot in the center of the lock is
horizontal (left to right).
 Lock the sliding tables.
 Slide the tubes on the water tray frame assembly into the
tubes on the leg stand. As shown in figure 8.
 Insert short carriage bolts into holes and tighten securely
using lock nuts.
INSTALLING MOTOR HEAD ASSEMBLY TO
WATER TRAY FRAME
See Figure 9.
 Align the holes in the motor head assembly with the holes
on the side of the water tray frame.
 Insert short cap bolts. Finger tighten using nuts.
 Slide long cap bolts into sleeve. Insert into holes. Finger
tighten.
 Tighten all cap bolts using an 8 mm hex key.
All manuals and user guides at all-guides.com
REAR
TABLE
14 — English
TABLE STOP
BY-PASS
MIDDLE
TABLE
LOCK
NUT
SHORT
CARRIAGE
BOLT
STAND
MOTOR HEAD
ASSEMBLY
HEX NUT
WATER TRAY
FRAME
SLIDING TABLE
LOCK LEVER
FRONT
TABLE

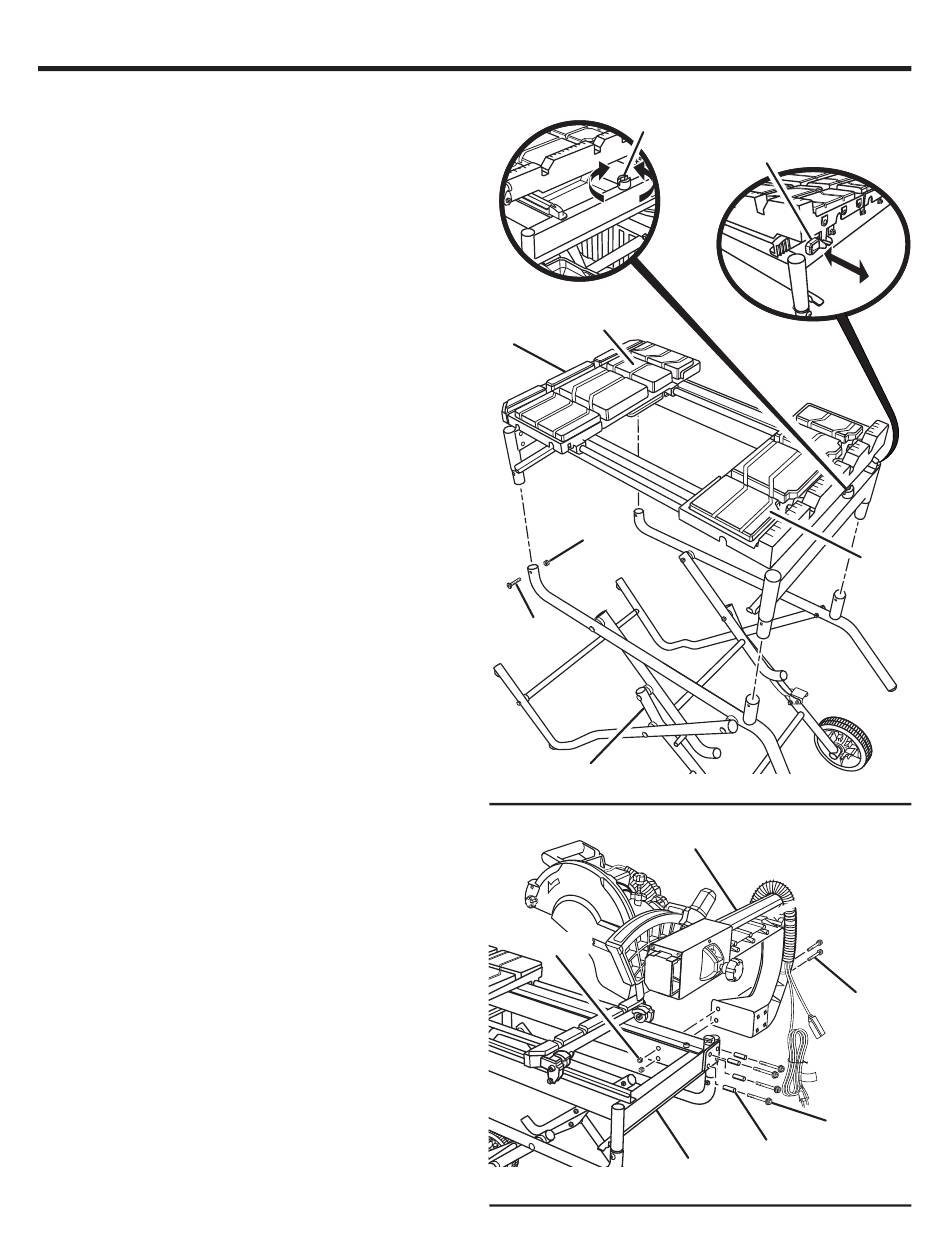

Fig. 8
