ASSEMBLY
TO CLOSE / OPEN THE WSUV™ WET SAW
UTILITY VEHICLE / LEG STAND

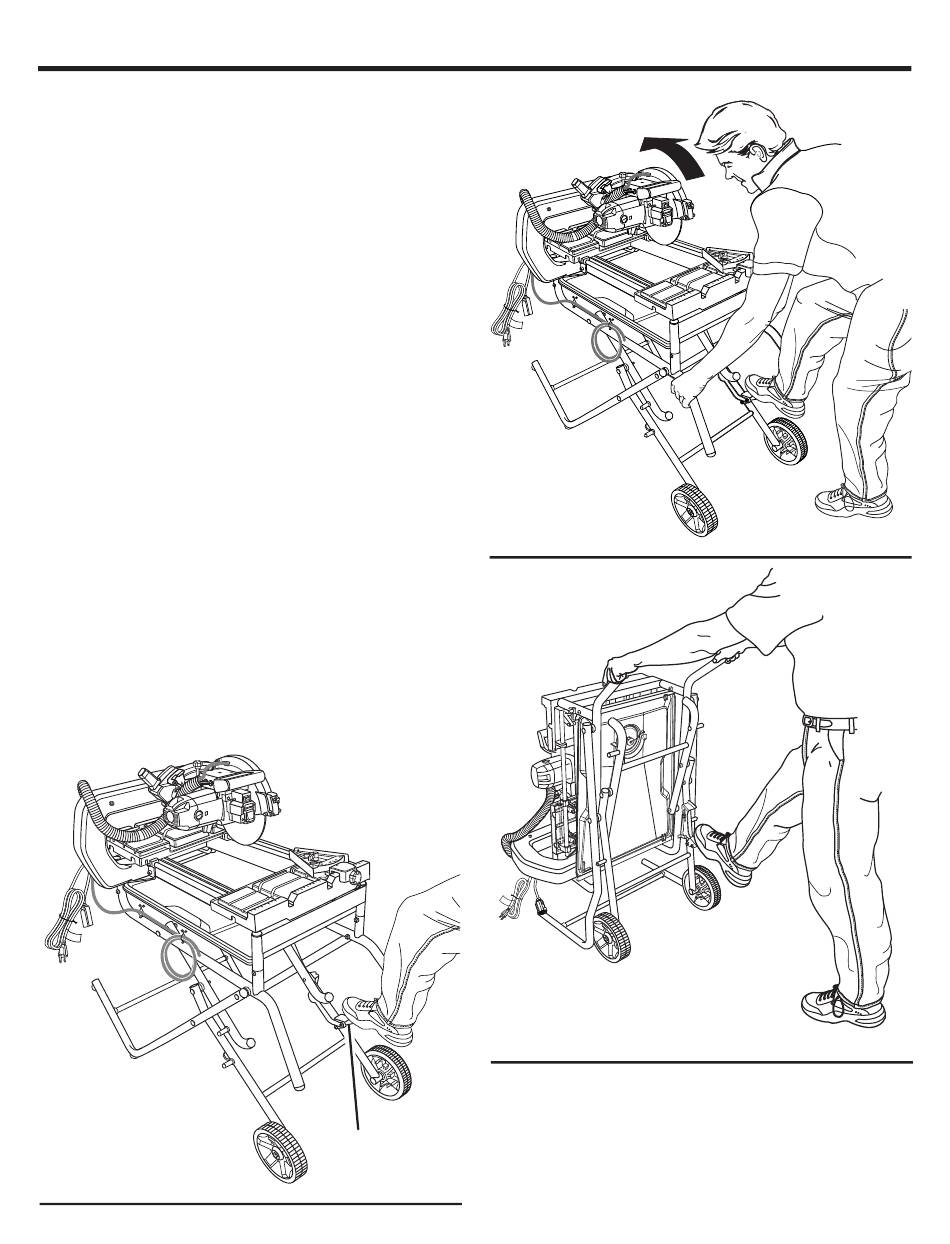

See Figures 17 - 19.
 Remove water tray extensions and the water tank, and
any workpieces from the tool. Store.
 Replace the sliding table in the center of the frame and
lock table in place. Move middle table to rear.
 Lower the wheel and secure by locking the saw head in
place using the lock knob and lock pin.
To close the leg stand:
 At the same time, step on the release lever, grasp the
grips, and lift the handles up and away from the body.
 Push the saw until the release lever clicks and locks into
place.
To move the leg stand:
 Holding the grips firmly, pull the handles toward you until
the leg stand and saw are balanced on the wheels.
 Push the saw to the desired location then either open
the leg stand for saw operation or store the saw in a dry
environment.
To open the leg stand:
 Step on the release lever and pull the grips toward you
at the same time.
 Once the leg stand is released from the release lever,
ease the leg stand toward the floor by pushing the grips
toward the floor.
 With your hands on the grips, push the leg stand towards
the ground until the saw is in an open position.
NOTE: The release lever will close over the pins locking
the leg stand in an open position.
All manuals and user guides at all-guides.com
RELEASE
LEVER
Fig. 17
17 — English
Fig. 18
Fig. 19
