7. Life Phases

7.4.2 Installing the motor assembly onto the electric cylinder

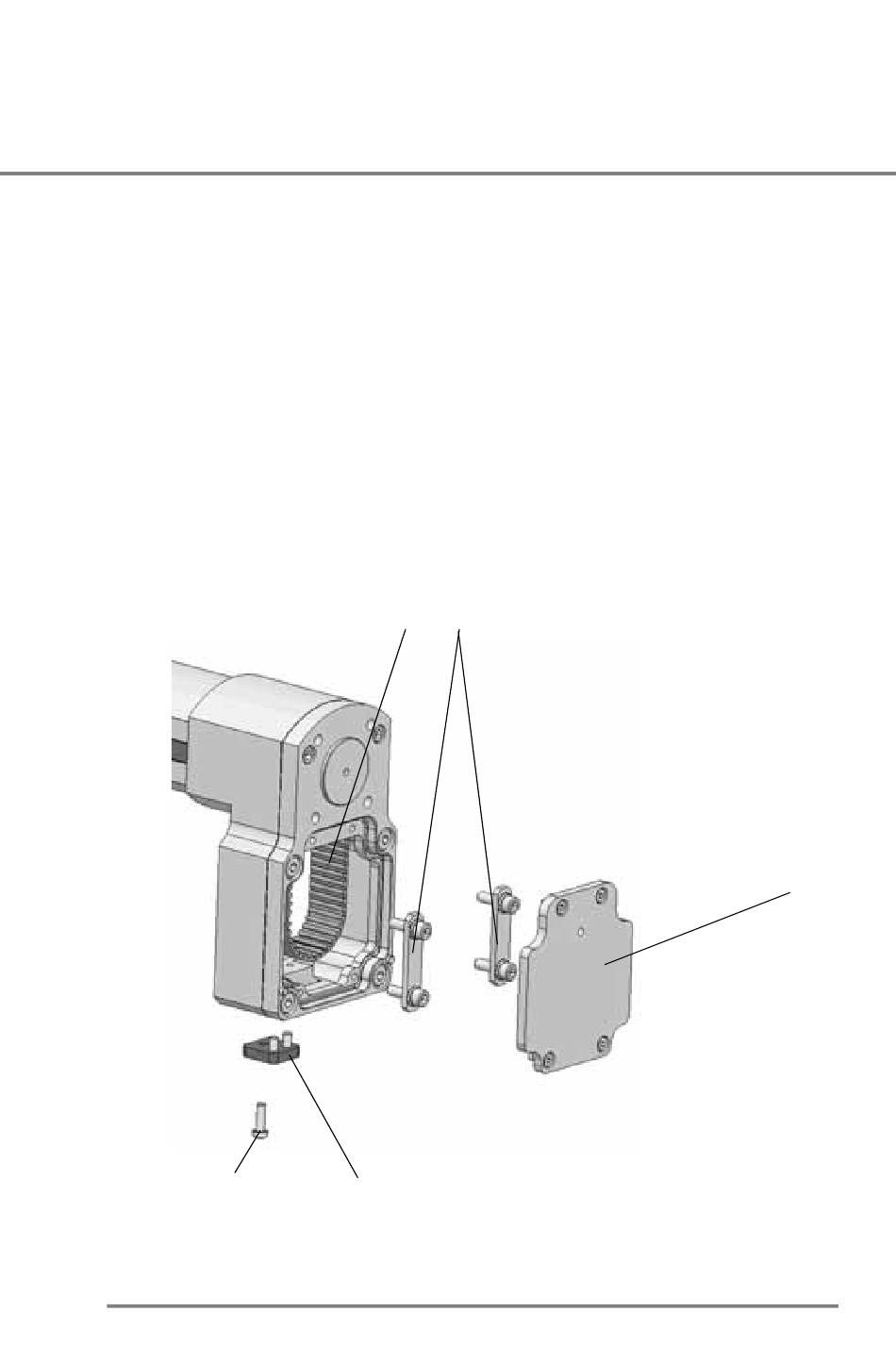

Overview of the housing components
1 Toothed belt
Lock plate
Fastening material:
2
2 x M5x10-8.8 cylinder screws VZ
2 x washers
Maintenance cover
Fastening material:
3
4 x M5x10-8.8 cylinder screws VZ
4 x washers
Tightening block
4 Fastening material:
2 x M5x10-8.8 cylinder screws VZ
5 Tensioning screw (M5x16-8.8 cylinder screws VZ)
56
5 4
2
1
3
