SOMFY J4 RTS Notice Installateur page 77

4.5.2.

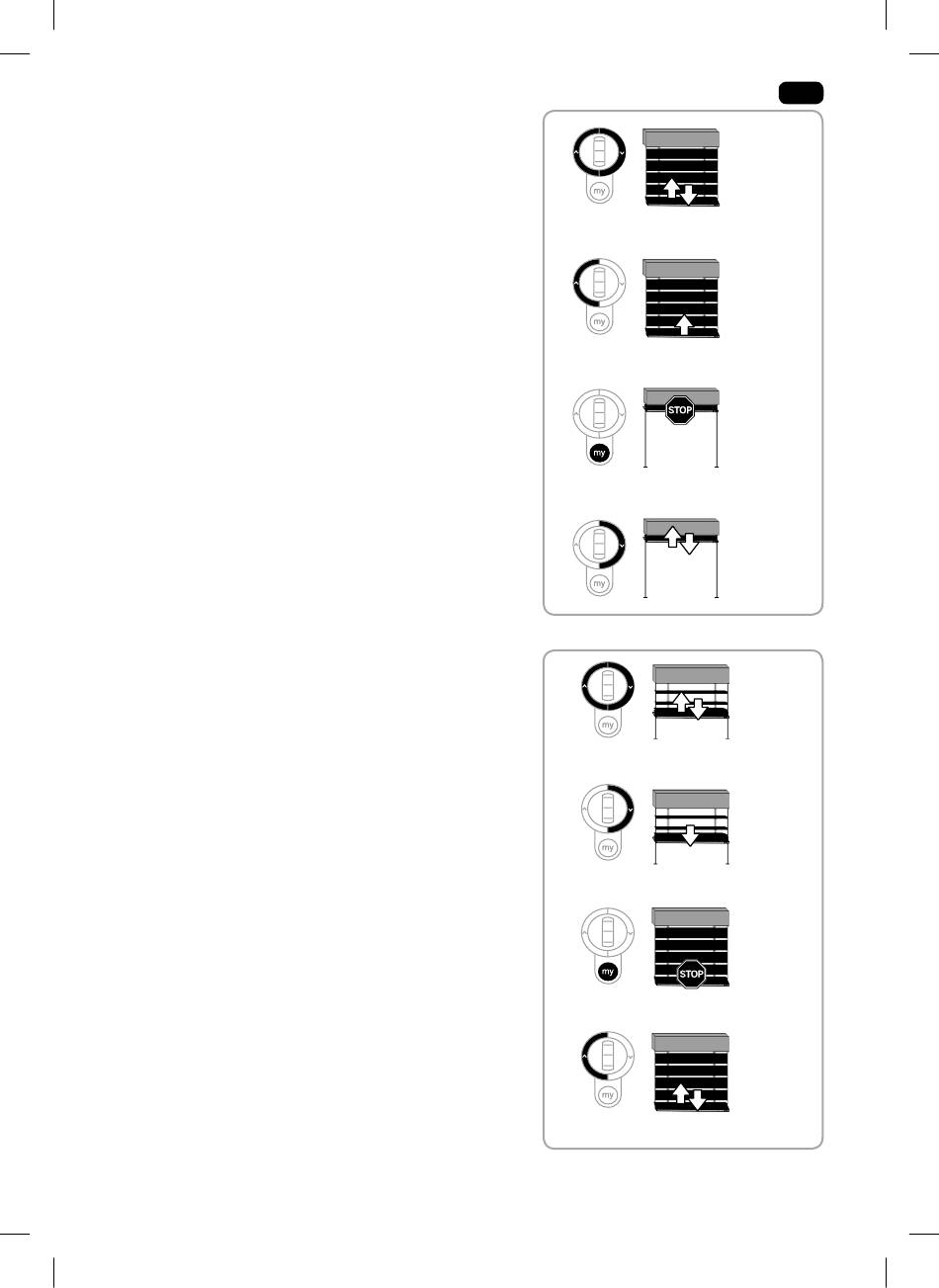

Upper end limit (manual adjustment)
• Press the Up and Down buttons for 5 seconds the E.V.B.
moves briefly.
• Press the Up button.
The E.V.B. rotates in the up direction. Continue to press
the Up button until the desired upper end limit is reached
(the E.V.B. continues to be raised after the control point
button has been pressed for 2 seconds).
• Stop the E.V.B. in the desired position (the thumbwheel on
the Telis MOD/VAR type local control point can be used
to set the desired position) using the stop function on the
«mushroom».
• If the «mushroom» is not activated during setting, press
the Down button (the E.V.B. moves briefly to confirm
programming). If the «mushroom» is activated when the
upper end limit is set, the position is programmed just
below the «mushroom».
4.5.3. Lower end limit (manual adjustment)
• Press the Up and Down buttons for 5 seconds the blind
moves briefly.
• Press the Down button.
The E.V.B. rotates in the down direction. Continue to press
the Down button until the desired lower end limit is reached
(the E.V.B. continues to be lowered after the control point
button has been pressed for 2 seconds).
• Stop the E.V.B. in the desired position (the thumbwheel on
the Telis MOD/VAR local control point can be used to set
the desired position precisely).
• Press the Up button (the E.V.B. moves briefly to confirm
programming).
