57 X 51 Mm Head Rail, Open Above - SOMFY J4 RTS Notice Installateur

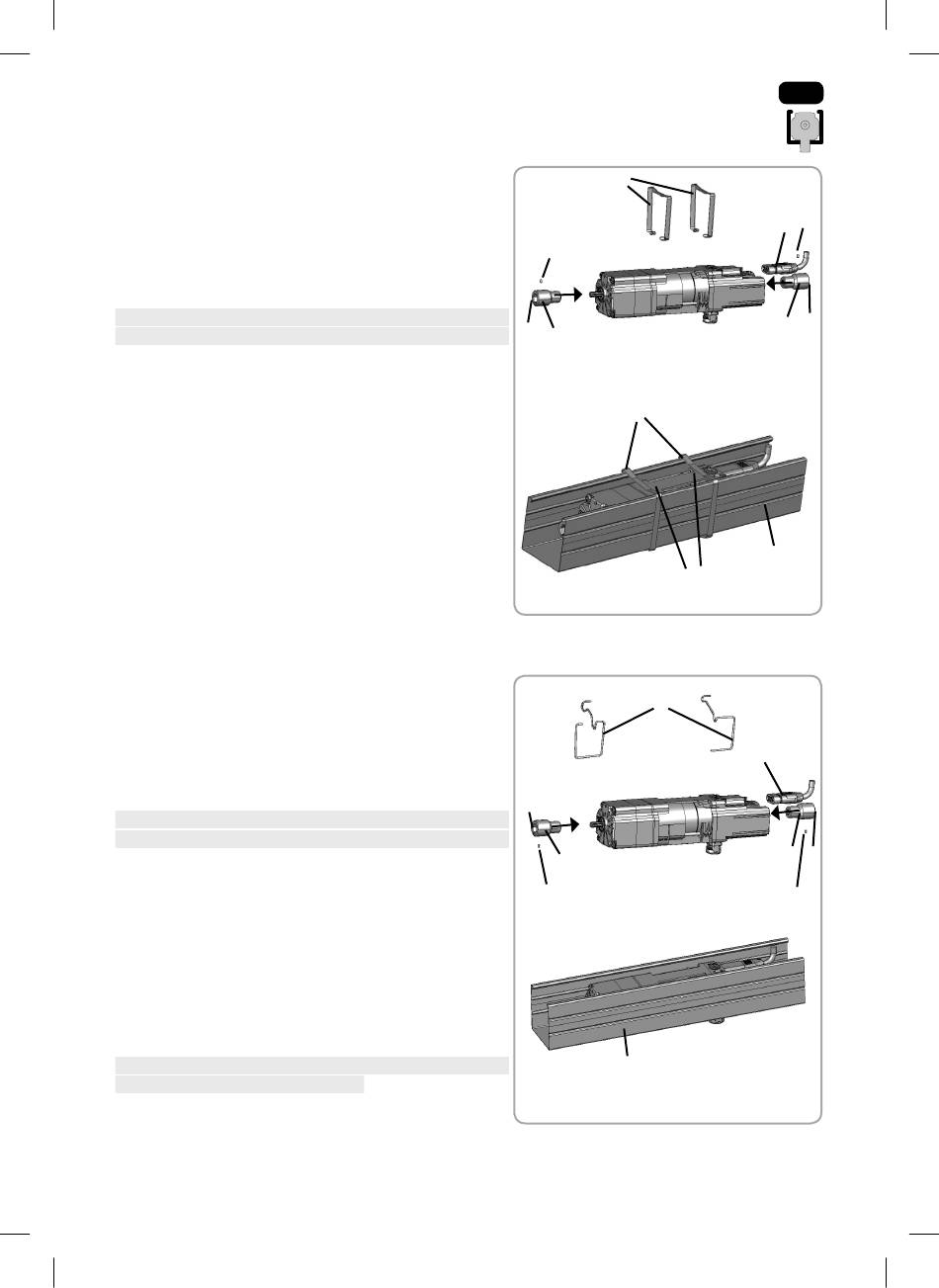

2.3 57 x 51 mm head rail, open above

Installation with external clips
• Screw the 2 adaptors (1) using 2 M3x8 bolts (2) on
the motor shaft.
Tightening torque = 1,35 N.m +/- 20%
• Connect the connection cable (3) to the motor.
Ensure that the
a rotating part
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail
(4) above the small acoustic tapes (6a).
• The shaft can be fitted into the adapter using a
headless screw (7)
Tightening torque = 2 N.m maximum
Installation with internal clips
• Screw the 2 adaptors (1) using 2 M3x8 bolts (2) on
the motor shaft.
Tightening torque = 1,35 N.m +/- 20%
• onnect the connection cable (3) to the motor.
Ensure that the
a rotating part
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail (4).
• The shaft can be fitted into the adapter using a
headless screw (7).
Tightening torque = 2 N.m maximum
The internal clips cannot be used with J418 motors
(J4 motors with a torque of 18 Nm).
Copyright © 2013-2017 SOMFY ACTIVITES SA. All rights reserved.
5072038D J4 RTS.indd 71
cable does not pass
of the motor or mechanism.
cable does not pass
of the motor or mechanism.
5
7
over
2
1
5
5
2
over
1
7
4
Images not contractually binding
EN
3 7
2
1
4
6a
3
1 2
7
71
