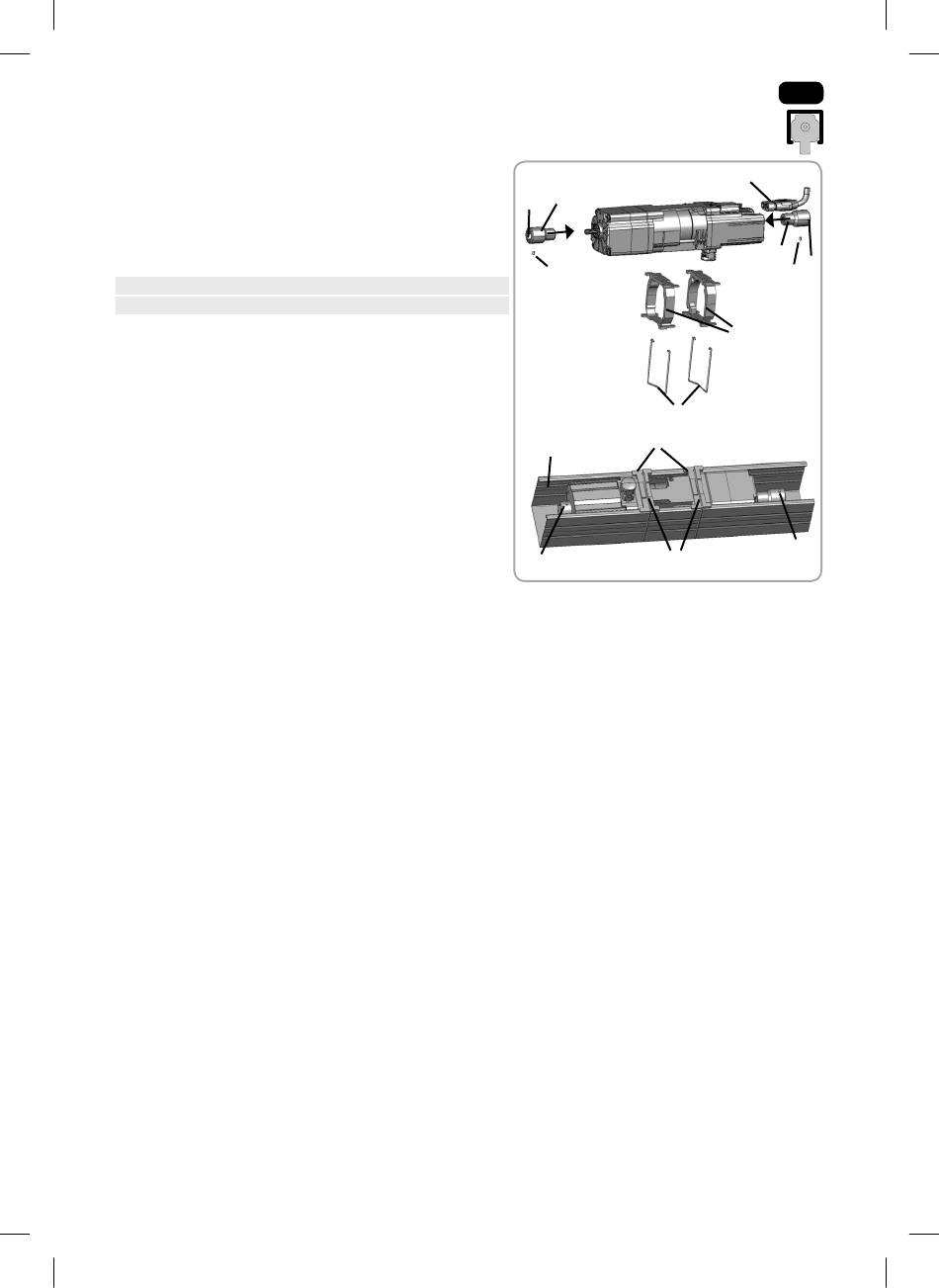

2.5 67 x 66 mm head rail, open below
• Screw the 2 adaptors (1) using 2 M3 x 8 bolts (2) on
the motor shaft.
Tightening torque = 1,35 N.m +/- 20%
• Connect the connection cable (3) to the motor.
Ensure that the
a rotating part
• Fit the two head rail adaptors (8) on the motor.
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail (4).
Copyright © 2013-2017 SOMFY ACTIVITES SA. All rights reserved.
5072038D J4 RTS.indd 73
cable does not pass
of the motor or mechanism.
2 1
7
over
8
4
7
Images not contractually binding
EN
3
1
2
7
8
5
7
5
