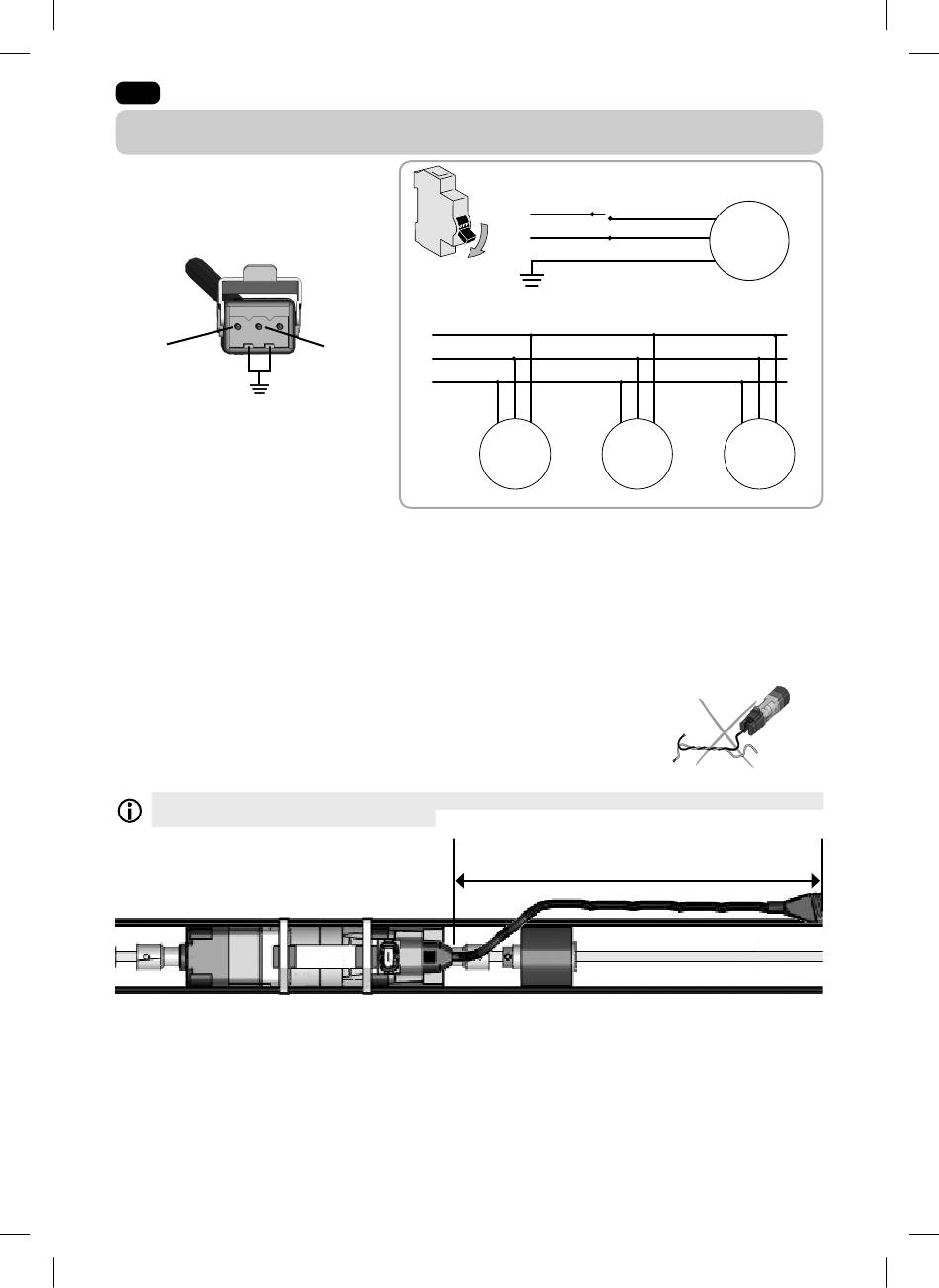

3. WIRING

• Cut off the mains power supply.
• Connect the motor according to the
information in the table below:
1 2 3
Neutral
(Blue)
Earth (Yellow/Green)
The phases and neutrals must be
connected together respectively.
In case of drive by a controller or any
automatisms, please refer to the dedi-
cated instructions manual.
• Always do a loop on the mains power supply cable between the electronic card and the motorisation in
order to prevent the water penetration into the motorisation.
• Do not interlace the supply cable of the J4 RTS plate with another cable.
To ensure that the radio signal is transmitted correctly, it is necessary to pull the J4 RTS plate supply
cable out of the head rail by at least 30 cm.
74 Images not contractually binding
5072038D J4 RTS.indd 74
Shared
Shared
Neutral
(Black)
Earth
Copyright © 2013-2017 SOMFY ACTIVITES SA. All rights reserved.
Shared
Black (2)
Neutral
Blue (1)
Earth
Yellow/Green
M M
M M
L ≥ 30 cm
M
Motor
M
M
M
