67 Mm Head Rail, Open Below - SOMFY J4 RTS Notice Installateur

EN
2.4 78 x 67 mm head rail, open below
Installation with J406/J410 motors (torque of 6 or
10 Nm)

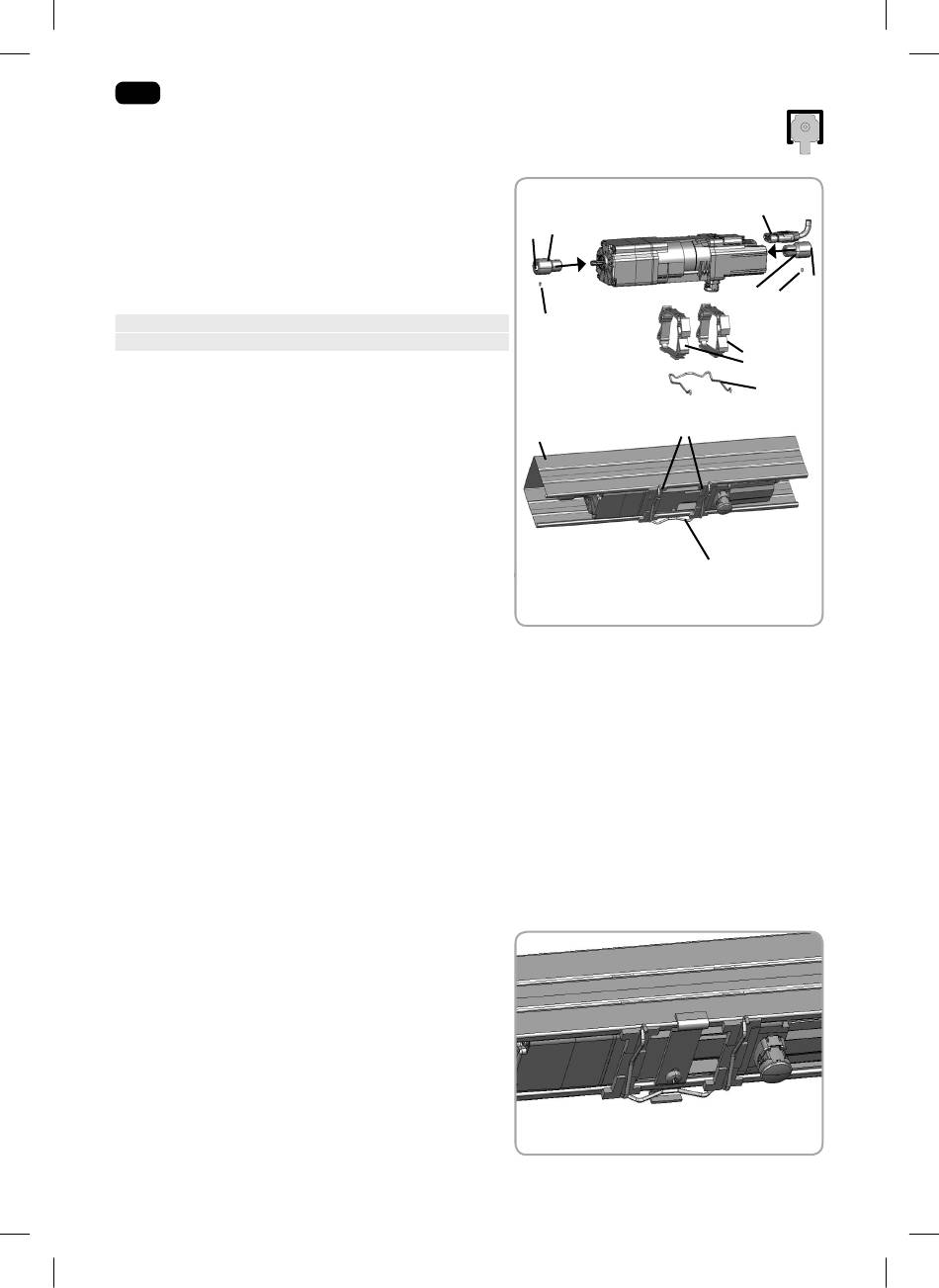

• Screw the 2 adaptors (1) using 2 M3 x 8 bolts (2) on
the motor shaft.
Tightening torque = 1,35 N.m +/- 20%
• Connect the connection cable (3) to the motor.
Ensure that the
a rotating part
• Fit the two head rail adaptors (8) on the motor.
• Insert the motor into the head rail (4).
• Using the clip (5), attach the motor in the head rail (4).
• The shaft can be fitted into the adapter using a
headless screw (7).
Tightening torque = 2 N.m maximum
For motors with torque greater than 10 Nm
• The additional clamp must be attached with a new
bolt -> tightening torque ≤ 4 Nm.
72 Images not contractually binding
5072038D J4 RTS.indd 72
cable does not pass
of the motor or mechanism.
