Installation instructions, for professionals only

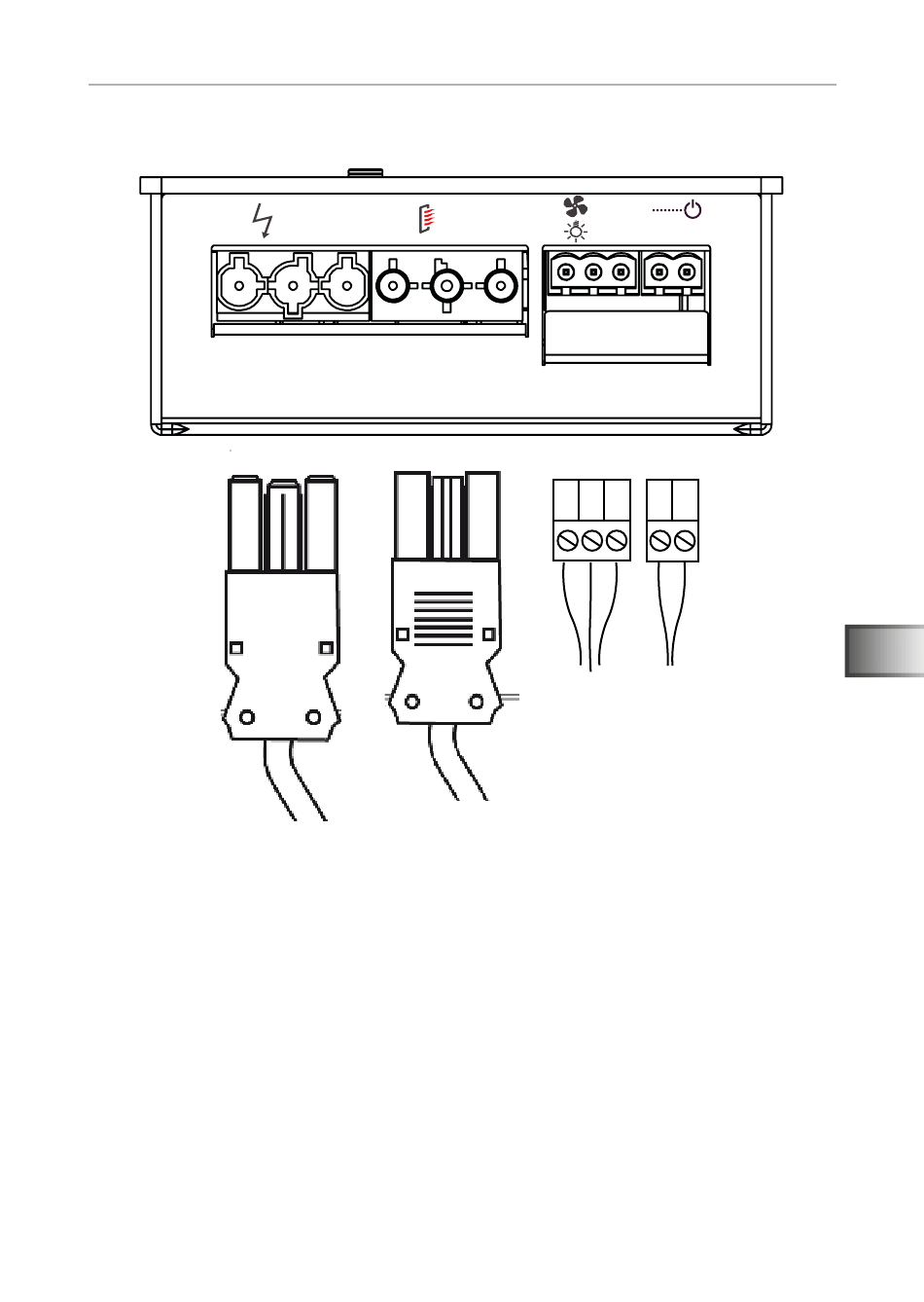

5.2. Connection diagram for 230 V
5
Fig. 7: Connection area for 230 V
Mains connection cable
5
230 V / 50 Hz max. 16 A
Infrared heater max. 3.5 kW
6
Light connection or fan connection
7
HV input (230 V / 50 Hz)
8
230V/50Hz
230V/50Hz
max.16A
max.3,5kW
6
230V/50Hz
max.100W
N PE L
7
N = neutral line (bl = blue = blau)
PE = earth conductor
(ye/gn = yellow/green = gelb / grün)
L
= outer conductor (br = brown = braun)
p. 15/44
230 VAC
8
EN
