Installation instructions, for professionals only

6.9. HV input (remote start/enable input)

DIP-Bank 4
Function selection switch 6
Remote start (OFF position)
The unit can be controlled remotely.
The controller starts after applying voltage
(230 VAC) at the HV input with the previ-
ously set values. To do this the controller
must be held down for approx. 3 seconds
to put the mode button in the "Standby for
remote operation".
Enable input (ON position)
The controller can only be switched on if 230 VAC is applied at the HV input.
This function can be used with a vending machine for example.
See also 5.6. Connecting the HV input (remote start/enable input) on page 16.

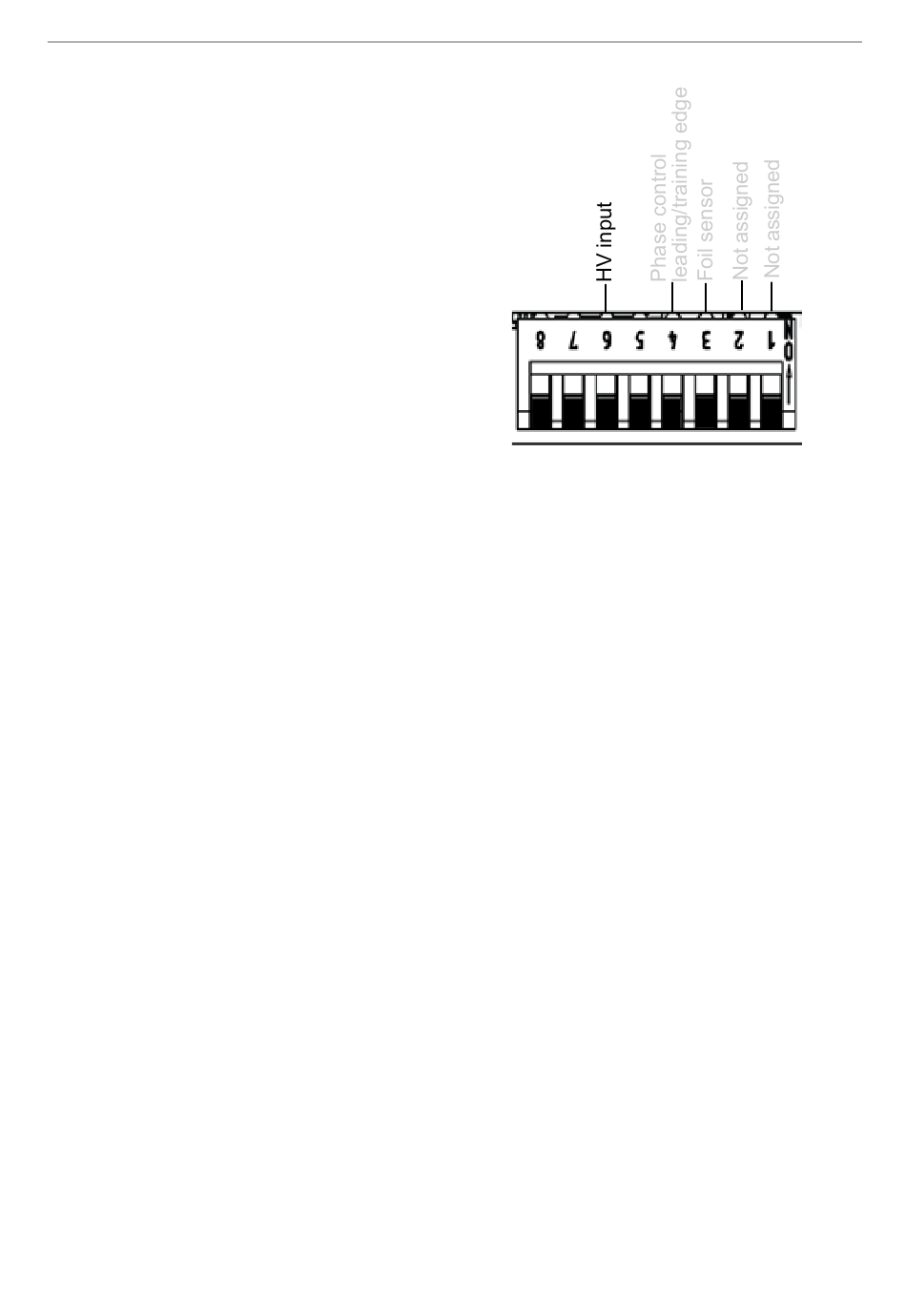

Fig. 21:HV input
p. 32/44
ON
OFF
