Installation instructions, for professionals only

6.8. Leading/trailing edge phase control

DIP-Bank 4
Function selection switch 4
Setting options:
Leading edge phase control: OFF (standard)
Trailing edge phase control: ON
For activating the leading/trailing edge phase
control, additional settings are required,
see 6.1. Operating mode on page 20.
Function is available in the normal and seat
modes (optional).
When the leading edge phase control mode is (see 6.2. Operating type (infrared
heater/infrared plate) on page 21) selected, there is the option of selecting
between leading/trailing edge phase control.

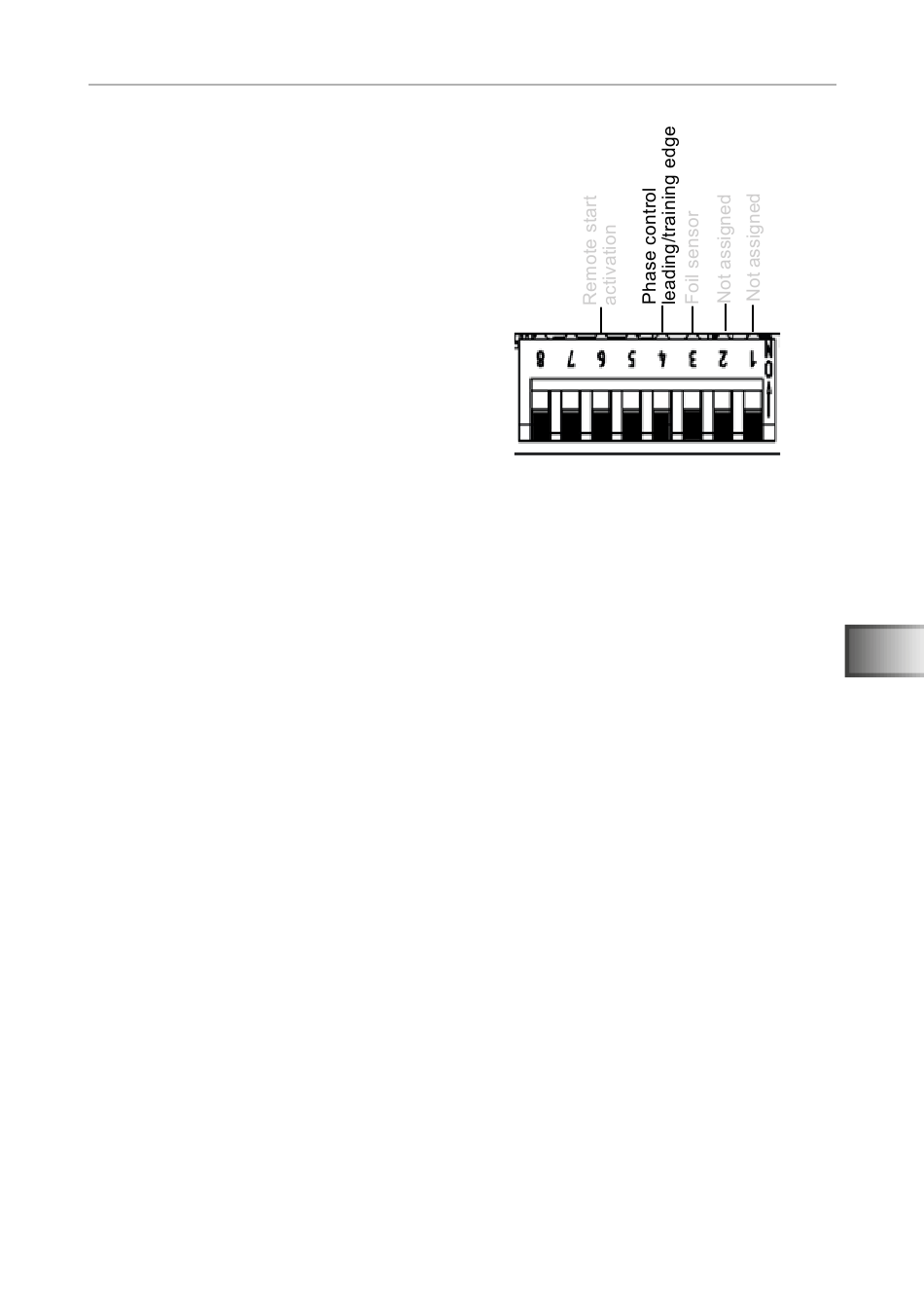

Fig. 20: Leading/trailing edge
phase control
p. 31/44
ON
OFF
EN
