Seat (Function is only available in combination with the optional seat sensor):
Dimmable light / fan. Switchable or dimmable infrared heater/infrared plate.
Activating the dimming function of the infrared heater/infrared plate is done via
the infra-controller, see 6.2. Operating type (infrared heater/infrared plate) on
page 21.
For additional settings, see 6.5. Seat time (optional for seat sensor) on page 25.
6.2. Operating type (infrared heater/
infrared plate)
DIP-Bank 1
Function selection switch 3 and 4
The following settings are possible
for the infra-controller:
Function selection
switch
Switch
Leading edge phase
control
Half-wave control
To enable optimum functionality, we recommend the phase control function for
infrared heaters with visible light. The half-wave control function is suitable for
infrared plates and infrared heaters without visible light.
ATTENTION!
The specified output limits may not be exceeded!
3 4
OFF OFF

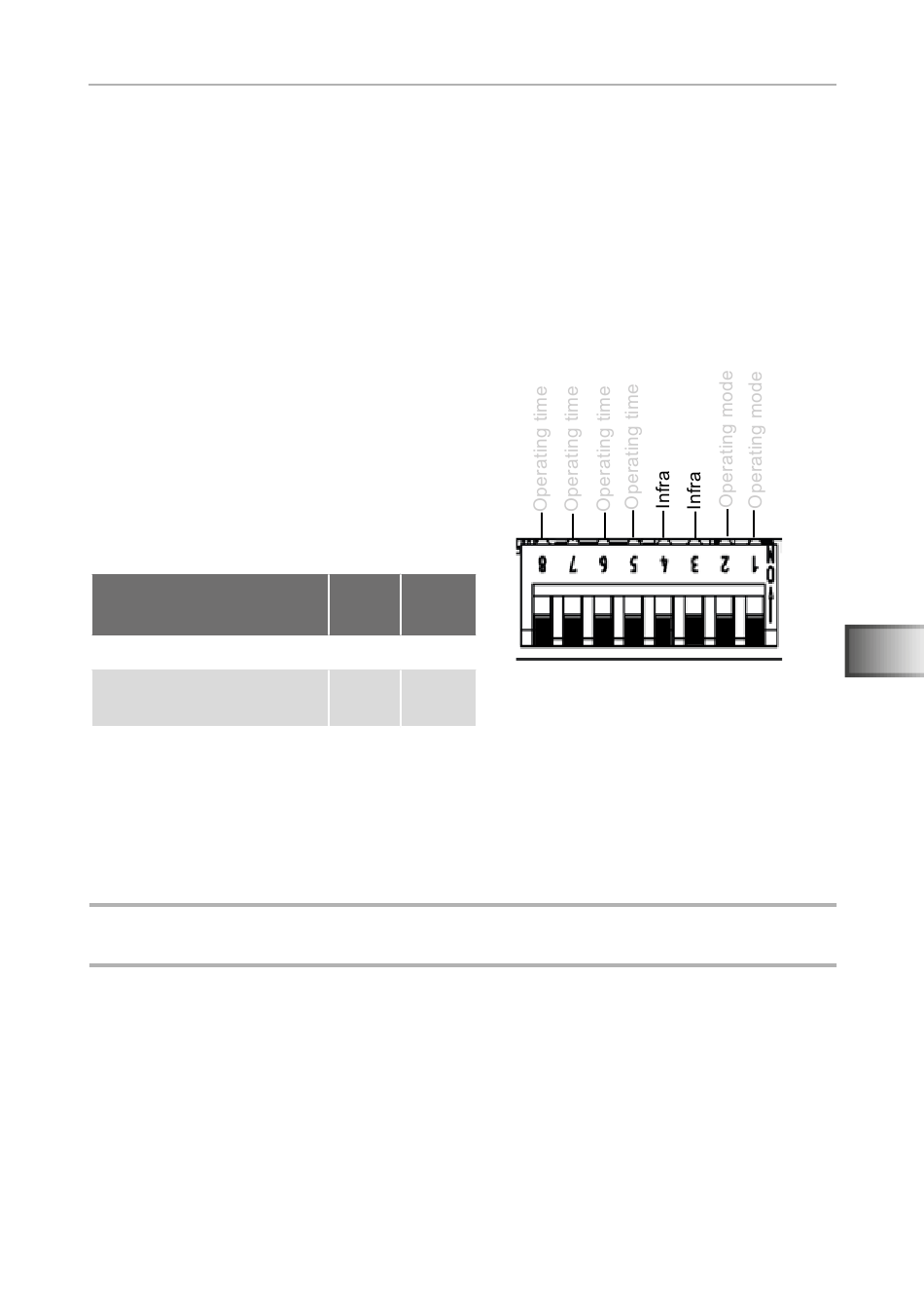

Fig. 10: Infrared operating type
ON OFF
OFF ON
