Installation instructions, for professionals only
1. Cut out the 60 x 48 mm recess using a jigsaw, for example.
2. Provide cable guides for the connecting cables.
3. Screw the housing to the cabin wall through the hole with the 4 wood screws
enclosed.
4. The front panel of the control unit is inserted with slight pressure
into the housing. Ensure that the lower catch engage noticeably.
5. Connect the 4-pin connector with the RJ11 socket on the control unit.

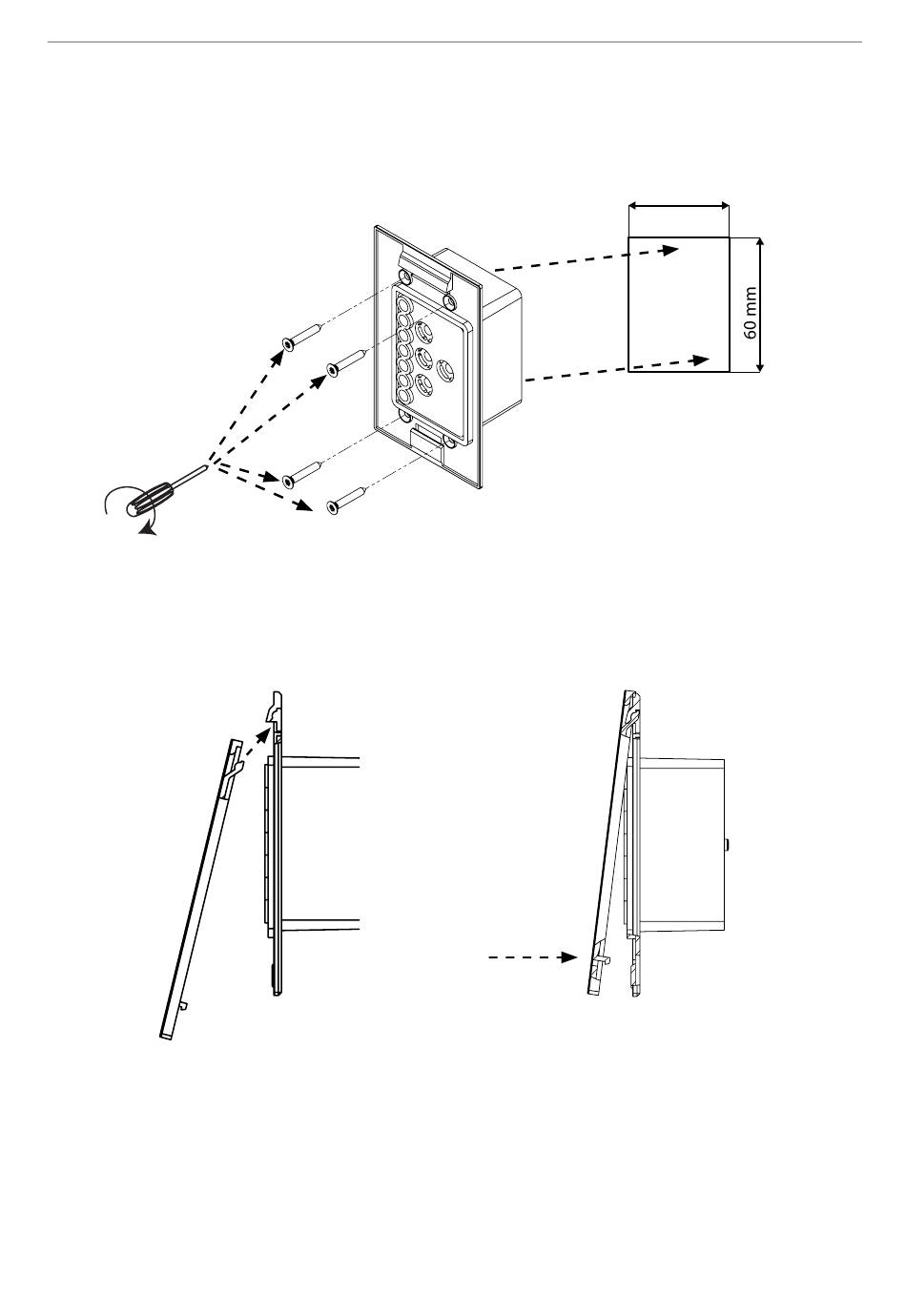

Fig. 3 Installing the control unit
Fig. 4 Installing the control unit
p. 12/44
48 mm
