3. Installation
3.6

Guide to using the diagnostics software

3.6.1 Connection
Your UPS is fitted with a standard RS232 interface, which can be used in conjunction with a computer in order to access
data relating to the operation of the UPS and its log. This function must be used together with the interface programme
for WINDOWS environments available from our website www.ups.legrand.com without charge.
A RS232 cable is required to connect a serial port on your PC to the interface outlet [11] located on the rear of the UPS.
3.7

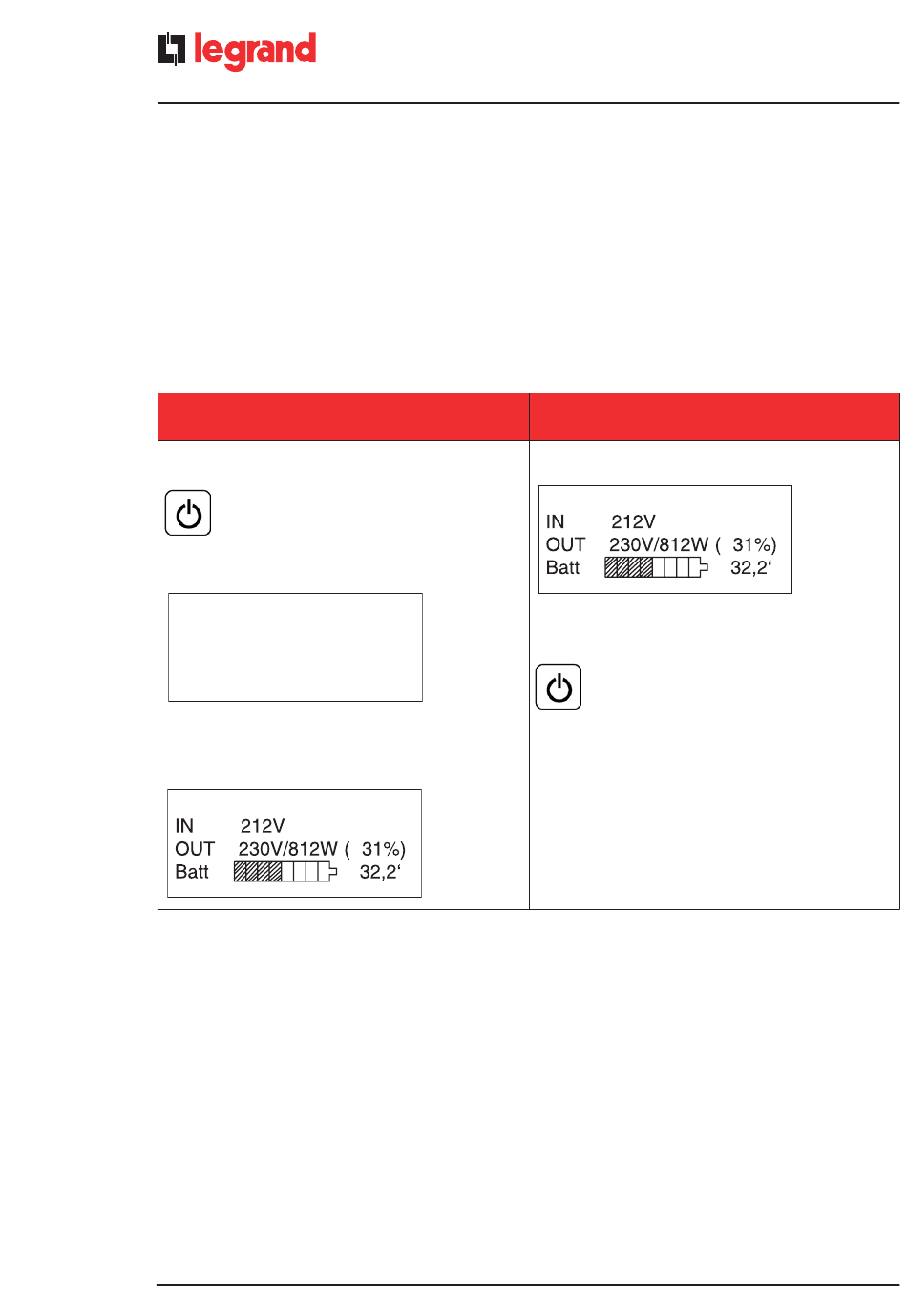

Operating Procedures

UPS on mains
Press button
The display reads
UPS switching on...
The status indicator shows the sequence during switch
on (red, yellow, green)
The display shows the operating status (example)
UPS on mains
UPS switching on...
38
®
Switch on Switch off
During operation (example)
UPS on mains
Press button for a few seconds
UPS switching on...
The acoustic warning signal sounds repeatedly then
the UPS switches off (5 seconds).
