ASSEMBLY INSTRUCTIONS

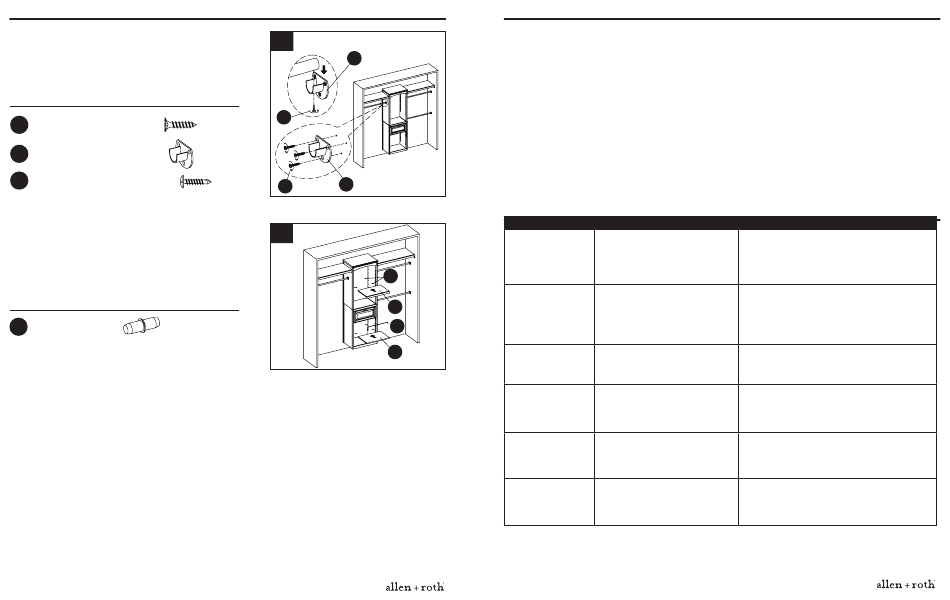

24. Attach open pole holders (YY) to hutch panel
left (A) and hutch panel right (B), securing with M4
x 14 mm wood screws (MM). Insert 22 mm metal
poles (X) into open pole holders (YY), securing with
M4 x 15 mm self-tapping screws (AB).
Hardware Used
MM
M4 x 14 mm Wood Screw
YY
Open Pole Holder
AB
M4 x 15 mm Self-tapping Screw
Adjustable Shelf Installation
25. Insert shelf pins (OO) where desired in cabinet,insert
Wire stopper (N) in shoe shelf (M),then rest adjustable
shelf (G) and shoe shelf (M) on the closet.
Note: Ensure the shelf pins (OO) are level.
Hardware Used
OO
Shelf pin
24
YY
AB
x 9
x 3
x 3
YY
MM
25
OO
G
N
x 8
M
Lowes.com/allenandroth
16
CARE AND MAINTENANCE
• Periodically check to make certain all components are properly positioned, free from damage and
firmly connected.
• Use a soft, clean cloth that will not scratch the surface when dusting.
• Never use water to clean the furniture as it may cause damage to the finish.
• Wipe clean using a damp cloth and a mild cleaner. Wipe dry with a clean cloth.
• In the event that the furniture is stained or otherwise damaged during use, it is recommended you
call a professional to repair the furniture.
• Keep furniture away from direct sunlight as it may damage the finish.
• It is best to keep the furniture in a climate-controlled environment. Extreme temperature and
humidity changes can cause fading, warping, shrinking and splitting of wood.
• Touch-up pen (XX) has been provided (except in Item #5130290) to repair any small nicks or
scratches that may occur during assembly or shipping.
• If Item #5130290 is damaged and touch-up is required please apply a quality wood
polish to the damaged surface. Polish not included with this item.
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
One end of long
The closet space is larger than
shelf (V) is
floating.
8 ft.
Long shelf (V) can
The closet space is smaller
not be installed
than 8 ft.
inside the closet.
The shelf is tilting.
The wall brackets and shelf
brackets are not installed at
the same level.
Drawer slide
Slide runners reversed.
runner can not
slide into slide
tracks.
Drawer slides do
The slide runners do not align
not go smoothly.
with the slide tracks properly.
Drawer gaps are
Slide runners are not level with
not even.
each other.
CORRECTIVE ACTION
1. Buy corresponding shelf bracket and
wall bracket (sold separately).
2. Replace long shelf (V) with a longer
shelf of a similar finish and style.
1.Shorten one side of the long shelf (V). Hire
an insured remodeler for installation.
2. Replace long shelf (V) with a shorter shelf
of a similar finish and style.
Use a quality level to ensure the brackets
are leveled with each other.
Reinstall the slide runner and ensure the
opening of slide runner is pointing backward.
Take out and repeat drawer installation.
Use the pilot holes on the tower as a guide
to level the slide runners.
Lowes.com/allenandroth
17
