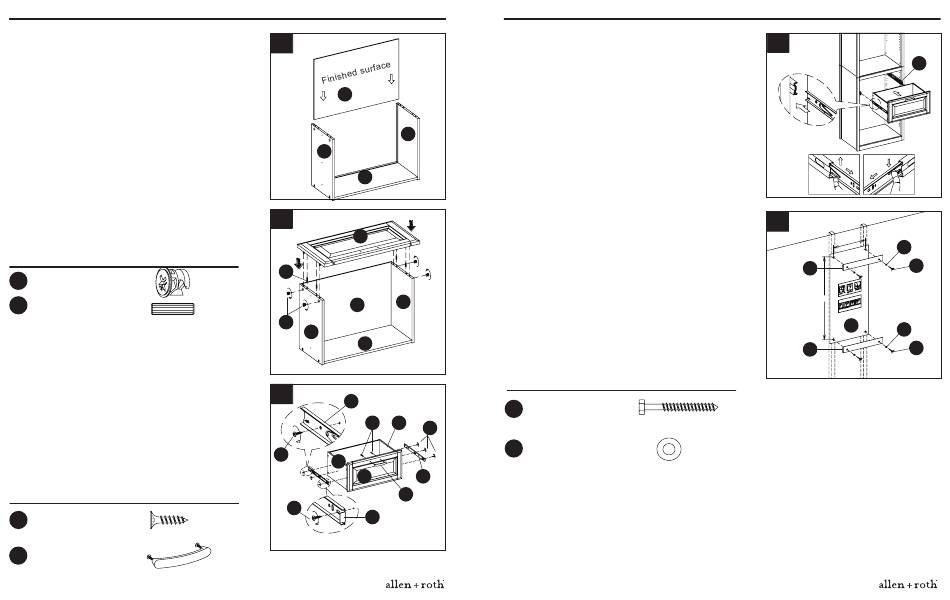

ASSEMBLY INSTRUCTIONS
15. Insert drawer bottom panel (T) into drawer left
panel (R), drawer right panel (Q) and drawer back
panel (S).
16. Insert small wood dowels (II) into drawer left
panel (R) and drawer right panel (Q). Attach drawer
front (P), securing with small cam locks (FF).
Hardware Used
FF
Small Cam Lock
II
Small Wood Dowel
17. Attach the previously removed slide runners (Step
1, page 7) to drawer left panel (Q) and drawer right
panel (R) with M3.5 x 12 mm wood screws (NN). Then,
remove preassembled bolt from handle (TT). Insert
drawer handle (TT) into drawer front (P), securing with
previously removed bolt.
Hardware Used
NN
M3.5 x 12 mm
Wood Screw
TT
Drawer Handle and
Bolts
15
T
R
S
16
P
II
x 4
x 4
T
FF
R
S
17
U
TT
NN
Q
P
NN
U
x 6
x 1
Lowes.com/allenandroth
12
ASSEMBLY INSTRUCTIONS
18. Insert the drawer into the assembly by pressing
down the release levers on the slide runners and
sliding the drawer into the tracks of slides (U).
Q
Wall Hanging Installation
19. Using a stud finder, locate the edges of the wood
studs. Find the center line of each stud and draw a
vertical reference line on the wall over each one. Position
installation template (W) at desired location on wall.
Note: The bottom of the installation template (W) should
be no less than 31-1/2 in. from the floor.
Q
Mark mounting holes with a pencil (not included) and
discard installation template (W). Drill 3/16 in. pilot holes at
marked locations. Then, with the beveled edge facing up,
attach the wall hanging cleats (O) with large flat washers
(QQ) and lag bolts (PP).
Hardware Used
M8 x 2-1/2 in. Lag Bolt
PP
R
NN
QQ
Large Flat Washer
U
TT
18
Hutch
Base
LL
19
16 in.
O
39-1/2 in.
W
O
Minimum 31-1/2 in.
x 4
x 4
Lowes.com/allenandroth
13
U
QQ
PP
QQ
PP
