ASSEMBLY INSTRUCTIONS

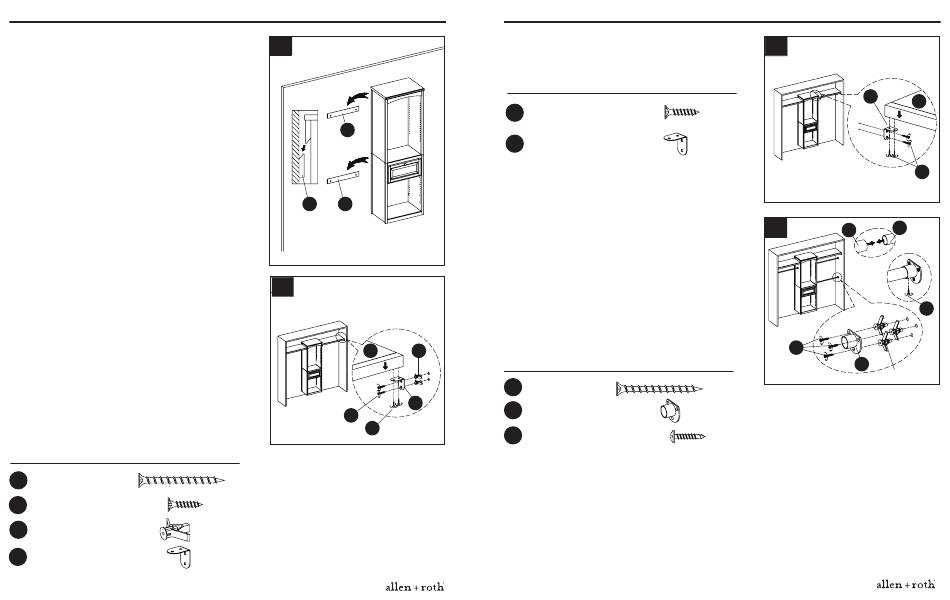

20. With the help from another person, carefully
hang the unit onto wall hanging cleat (O).
Long Shelf Installation
Note: If long shelf (V) needs cut to fit inside your closet
space, cut only one side of the shelf and do not use
a hacksaw. It is recommended you hire an insured
remodeler for this type of installation.
21. With a pencil, draw a level line at the desired
mounting location for long shelves (V). Using L-brack-
ets (SS) as a guide, mark the screw hole locations with
a pencil. Drill 3/8 in. diameter pilot holes at least 2-1/2
in. deep
at marked locations, then insert wall anchors
(RR)
into the holes until they are flush with the wall.
Attach L-brackets (SS) to the wall using M4 x 38 mm
screws (KK) and to the long shelf (V) using M4 x 14
wood screws (MM).
Hardware Used
KK
M4 x 38 mm Screw
MM
M4 x 14 mm Wood Screw
RR
Wall Anchor
SS
L-Bracket
20
O
O
O
21
V
KK
MM
x 8
x 8
x 8
x 4
Lowes.com/allenandroth
14
ASSEMBLY INSTRUCTIONS
22. Attach long shelves (V) to hutch panel left (A) and
hutch panel right (B) with L-brackets (SS), securing
with M4 x 14 mm wood screws (MM).
Hardware Used
MM
M4 x 14 mm Wood Screw
SS
L-Bracket
Pole Installation
23. Insert 22 mm metal poles (X) into 25 mm metal
poles (Y). Using closed pole holders (ZZ) as a guide,
mark screw hole locations with a pencil. Drill 3/8 in.
diameter pilot holes at least 2-1/2 in. deep
locations,
then insert drywall anchors (not included) into
the holes. Attach closed pole holders (ZZ) with
M4 x 38 mm screws (KK). Insert 25 mm metal poles (Y)
into closed pole holders (ZZ), securing with
M4 x 15 mm self-tapping screws (AB).
Note: Drywall anchors are not required if installing into a
stud.
RR
Hardware Used
KK
M4 x 38 mm Screw
SS
ZZ
Closed Pole Holder
AB
M4 x 15 mm Self-tapping Screw
23
x 16
x 4
23
X
at marked
KK
ZZ
x 9
x 3
x 3
Lowes.com/allenandroth
15
SS
V
MM
Y
AB
Drywall Anchor
