SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
• Do not allow children to climb or play in or around this product.
• To avoid damage, assemble the product on a sturdy, level and protective surface.
• Two or more persons must work together to install the unit onto the wall.
• Make sure all bolts/screws are tightly fastened before the unit is used.
• Check bolts/screws periodically and tighten them if necessary.
WARNING
• THIS UNIT IS INTENDED FOR USE ONLY WITH THE MAXIMUM WEIGHTS
INDICATED. USE WITH PRODUCTS HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY CAUSING POSSIBLE INJURY.
DISTRIBUTE WEIGHT EVENLY.
• Shelf maximum load: 30 lbs
• Pole maximum load: 40 lbs.
• Pole maximum length: 60 in.
CAUTION
• Use this unit for its intended purpose only.
• Do not use shelves as step ladder.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Phillips Screwdriver, Power Drill, 3/16 in. Drill Bit, 3/8 in.
Drill Bit, 1/2 in. Socket Wrench, Level, Stud Finder, Marking Pencil, Tape Measure, Step Ladder, and
Hammer
Lowes.com/allenandroth
6

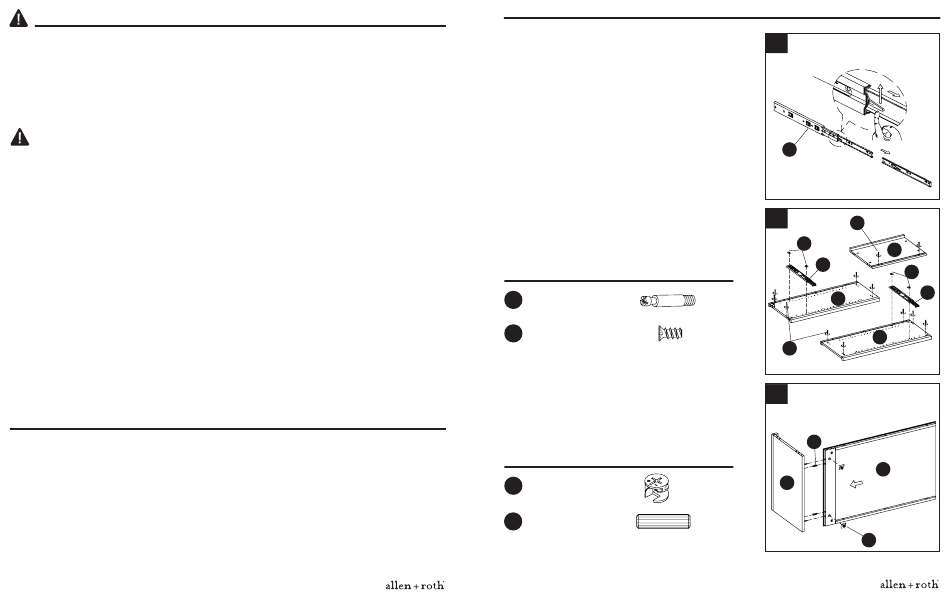

ASSEMBLY INSTRUCTIONS
Base Assembly
1. Press the release lever on slides (U) and
remove the slide runner.
2. Attach slides (U) to base panel left (H) and base panel
right (I), securing with M6 x 10 mm screws (JJ). Then,
insert medium cam bolts (EE) into base panel left (H),
base panel right (I) and base panel top (J).
Hardware Used
EE
Medium Cam Bolt
JJ
M6 x 10 mm Screw
3. Attach base panel back (K) and base panel top (J) to
assembly using large wood dowels (HH) and large cam
lock (DD).
Note: Make sure previously inserted medium
cam bolts (EE) are completely seated.
Hardware Used
DD
Large Cam Lock
HH
Large Wood Dowel
1
Release Lever
UP
U
2
EE
JJ
U
x 12
H
x 4
I
EE
TT
3
HH
K
J
Back Side
x 2
x 2
DD
Lowes.com/allenandroth
7
J
JJ
U
